Optional. By default, Portal for ArcGIS is installed in the user's $HOME directory. DIRECTORY specifies a different installation directory. The /arcgis/portal path is appended to the installation directory.
If you're pointing the setup to a previous installation directory, the content in that directory is automatically used in the new installation. Content from installations prior to version 10.2 is not supported.
-v; --verbose "
Installer runs in verbose mode."
-h; --help
Displays command line help and exits.
-e; --examples
Displays usage examples of these options and exits.
Portal for ArcGIS
Require
Command
Extrac
Install
Activation
Config
set start with the operating system
Copy the <ArcGIS Installation>/framework/etc/arcgisportal.service unit file to /etc/systemd/system
Generates an authorization file to be uploaded to the Esri website or email. Once completed, run this tool again using the received .ecp authorization file to complete the authorization process for this product.
FULL_PATH_TO_PROVISIONING_FILE is the full, absolute path to the provisioning file (.prvc) provided by Esri.
EMAIL_ADDRESS is required to authorize using a provisioning file.
AUTHORIZATION_FILE_OUTPUT is the output file generated that must be sent to the Esri self service site or an email to authorize@esri.com.
For more information, see Authorizing in a disconnected network environment and with no display set (headless).
-h;
Displays command line help and exits.
Silently authorize ArcGIS Server
<ArcGIS Server installation directory>/tools/authorizeSoftware -f <full path to the .prvc file> -e <email address> -o <full path to the .txt authorization file output>
<ArcGIS Server installation directory>/tools/authorizeSoftware -f <full path to the .ecp file>
Config
set start with the operating system
Copy the <ArcGIS Installation>/framework/etc/arcgisserver.service unit file to /etc/systemd/system
add command ExecStart and ExecStop
/bin/bash
enable .service
systemctl enable arcgisserver.service
systemctl stop arcgisserver.service
systemctl start arcgisserver.service
systemctl status arcgisserver.service
ArcGIS Web Adaptor
Require
Command
Extrac
Install
Activation
Config
ArcGIS Web Adaptor (Portal for ArcGIS)
ArcGIS Web Adaptor (ArcGIS Server)
ArcGIS Data Store
Require
Command
Extrac
Install
Activation
Config
set start with the operating system
Copy the <ArcGIS Installation>/framework/etc/arcgisdatastore.service unit file to /etc/systemd/system
add command ExecStart and ExecStop
/bin/bash
Federeted ArcGIS Server to Portal fo ArcGIS
# Firewall
# Tomcat
- Require
- Version 9.0.105
- Java Version
- Command
- Extrac
- Install
- install java
```
- java -version
```
- install java 11
```
```
- add user and group tomcat
```
sudo groupadd tomcat
```
```
sudo useradd -s /bin/false -g tomcat -d /opt/tomcat tomcat
```
- download tomcat9
```
wget -O tomcat.tar.gz https://dlcdn.apache.org/tomcat/tomcat-9/v9.0.100/bin/apache-tomcat-9.0.100.tar.gz
```
- creat dir tomcat
```
sudo mkdir /opt/tomcat
```
```
sudo tar -xvzf tomcat.tar.gz -C /opt/tomcat --strip-components=1
```
```
sudo chown -R tomcat:tomcat /opt/tomcat
```
```
sudo chmod -R g+r /opt/tomcat/conf
```
```
sudo chmod g+x /opt/tomcat/conf
```
- Config
- set user
```
sudo nano /opt/tomcat/conf/tomcat-users.xml
```
```
<role rolename="admin-gui"/>
<role rolename="manager-gui"/>
<user username="tomcat" password="pass" roles="admin-gui,manager-gui"/>
```
- allow access from all ip
- webapps/manager
```
sudo nano /opt/tomcat/webapps/manager/META-INF/context.xml
```
disable value on `context.xml`
```
<!-- <Valve className="org.apache.catalina.valves.RemoteAddrValve"
allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" /> -->
```
- webapps/host-manager
```
sudo nano /opt/tomcat/webapps/host-manager/META-INF/context.xml
```
disable value on `context.xml`
```
<!-- <Valve className="org.apache.catalina.valves.RemoteAddrValve"
allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" /> -->
```
- Set Up Apache Tomcat as a System Service
```

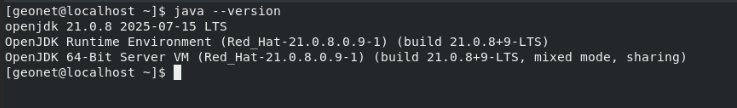

java -version
```
```
sudo update-java-alternatives -l
```
`java-1.11.0-openjdk-amd64 1111 /usr/lib/jvm/java-1.11.0-openjdk-amd64`
- Create a new `tomcat.service` system service file.
```
sudo nano /etc/systemd/system/tomcat.service
```
```
[Unit]
Description=Tomcat
After=network.target
[Service]
Type=forking
User=tomcat
Group=tomcat
Environment="JAVA_HOME=/usr/lib/jvm/java-1.11.0-openjdk-amd64"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"
Environment="CATALINA_BASE=/opt/tomcat"
Environment="CATALINA_HOME=/opt/tomcat"
Environment="CATALINA_PID=/opt/tomcat/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"
ExecStart=/opt/tomcat/bin/startup.sh
ExecStop=/opt/tomcat/bin/shutdown.sh
RestartSec=10
Restart=always
[Install]
WantedBy=multi-user.target
```
```
sudo systemctl daemon-reload
sudo systemctl enable tomcat
sudo systemctl start tomcat
sudo systemctl status tomcat
```
- Add SSL https 443
```
<Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
maxThreads="150" SSLEnabled="true"
maxParameterCount="1000"
>
<SSLHostConfig>
<Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
certificateKeystorePassword="changeit" type="RSA" />
</SSLHostConfig>
</Connector>
```
# Nginx
# ArcGIS Enterprise
- Require
- Temp space requirements
```
df -h /tmp
```
- ulimit
- File handle limits
```
sudo nano /etc/security/limits.conf
```
```
<Portal for ArcGIS installation user> soft nofile <file handle limit>
<Portal for ArcGIS installation user> hard nofile <file handle limit>
DefaultLimitNOFILE 65536
DefaultLimitNPROC 25059
```
- Global Command
| Option | Description |
| --- | --- |
| -m; --mode MODE "| Optional. Defaults to GUI.<br><br>MODE is one of the following: silent, console, or gui." |
| -l; --license-agreement CHOICE | Required for silent mode. CHOICE can be Yes or No.<br><br>Yes indicates that you have read and agreed to the Esri Master Agreement (E204, E300). Visit http://www.esri.com/legal/licensing-translations to read the agreement. |
| -d; --directory DIRECTORY | Optional. By default, Portal for ArcGIS is installed in the user's $HOME directory. DIRECTORY specifies a different installation directory.<br>The /arcgis/portal path is appended to the installation directory.<br><br>If you're pointing the setup to a previous installation directory, the content in that directory is automatically used in the new installation. Content from installations prior to version 10.2 is not supported. |
| -v; --verbose "|
Installer runs in verbose mode." |
| -h; --help | Displays command line help and exits. |
| -e; --examples | Displays usage examples of these options and exits. |
| | |
## Portal for ArcGIS
- Require
- Command
- Extrac
- Install
- Activation
- Config
- set start with the operating system
Copy the `<ArcGIS Installation>`/framework/etc/arcgisportal.service unit file to /etc/systemd/system
- add command ExecStart and ExecStop
```
/bin/bash
```
## ArcGIS Server
- Require
- Command
- Extrac
- Install
- Activation
| none | Description |
| --- | --- |
| -s | Software Authorization Wizard GUI will run. |
| -f FULL_PATH_TO_ECP_AUTHORIZATION_FILE | Displays authorization status. |
| -f FULL_PATH_TO_PROVISIONING_FILE -e EMAIL_ADDRESS | Authorizing with an .ecp authorization file.<br><br><br><br>FULL_PATH_TO_ECP_AUTHORIZATION_FILE is the full, absolute path to the authorization file (.ecp) provided by Esri.<br><br> |
| -f FULL_PATH_TO_PROVISIONING_FILE -e EMAIL_ADDRESS -o AUTHORIZATION_FILE_OUTPUT | Generates an authorization file to be uploaded to the Esri website or email. Once completed, run this tool again using the received .ecp authorization file to complete the authorization process for this product.<br><br><br><br>FULL_PATH_TO_PROVISIONING_FILE is the full, absolute path to the provisioning file (.prvc) provided by Esri.<br><br><br><br>EMAIL_ADDRESS is required to authorize using a provisioning file.<br><br><br><br>AUTHORIZATION_FILE_OUTPUT is the output file generated that must be sent to the Esri self service site or an email to authorize@esri.com.<br><br><br><br>For more information, see Authorizing in a disconnected network environment and with no display set (headless).<br><br> |
| -h; | Displays command line help and exits. |
| | |
- Silently authorize ArcGIS Server
```
<ArcGIS Server installation directory>/tools/authorizeSoftware -f <full path to the .prvc file> -e <email address> -o <full path to the .txt authorization file output>
```
```
<ArcGIS Server installation directory>/tools/authorizeSoftware -f <full path to the .ecp file>
```
- Config
- set start with the operating system
Copy the `<ArcGIS Installation>`/framework/etc/arcgisserver.service unit file to /etc/systemd/system

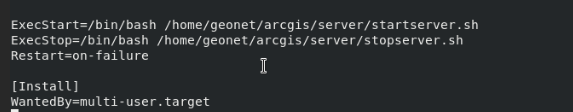

- add command ExecStart and ExecStop
```
/bin/bash
```
- enable .service
```
systemctl enable arcgisserver.service
```
```
systemctl stop arcgisserver.service
systemctl start arcgisserver.service
systemctl status arcgisserver.service
```
## ArcGIS Web Adaptor
- Require
- Command
- Extrac
- Install
- Activation
- Config
### ArcGIS Web Adaptor (Portal for ArcGIS)
### ArcGIS Web Adaptor (ArcGIS Server)
## ArcGIS Data Store
- Require
- Command
- Extrac
- Install
- Activation
- Config
- set start with the operating system
Copy the `<ArcGIS Installation>`/framework/etc/arcgisdatastore.service unit file to /etc/systemd/system
- add command ExecStart and ExecStop
```
/bin/bash
```
## Federeted ArcGIS Server to Portal fo ArcGIS
Firewall
Tomcat
Extrac
Install
Config
allow access from all ip
disable value on
context.xmldisable value on
context.xmlSet Up Apache Tomcat as a System Service
tomcat.servicesystem service file.Nginx
ArcGIS Enterprise
Require
Global Command
MODE is one of the following: silent, console, or gui."
Yes indicates that you have read and agreed to the Esri Master Agreement (E204, E300). Visit http://www.esri.com/legal/licensing-translations to read the agreement.
The /arcgis/portal path is appended to the installation directory.
If you're pointing the setup to a previous installation directory, the content in that directory is automatically used in the new installation. Content from installations prior to version 10.2 is not supported.
Portal for ArcGIS
Copy the
<ArcGIS Installation>/framework/etc/arcgisportal.service unit file to /etc/systemd/systemArcGIS Server
Extrac
Install
Activation
FULL_PATH_TO_ECP_AUTHORIZATION_FILE is the full, absolute path to the authorization file (.ecp) provided by Esri.
FULL_PATH_TO_PROVISIONING_FILE is the full, absolute path to the provisioning file (.prvc) provided by Esri.
EMAIL_ADDRESS is required to authorize using a provisioning file.
AUTHORIZATION_FILE_OUTPUT is the output file generated that must be sent to the Esri self service site or an email to authorize@esri.com.
For more information, see Authorizing in a disconnected network environment and with no display set (headless).
Config
Copy the
<ArcGIS Installation>/framework/etc/arcgisserver.service unit file to /etc/systemd/systemArcGIS Web Adaptor
ArcGIS Web Adaptor (Portal for ArcGIS)
ArcGIS Web Adaptor (ArcGIS Server)
ArcGIS Data Store
Copy the
<ArcGIS Installation>/framework/etc/arcgisdatastore.service unit file to /etc/systemd/systemFedereted ArcGIS Server to Portal fo ArcGIS
