Rocky Libux 8.0 Tomcat #223

ArcGIS Web Adaptor (Java Platform) supports Java 8 and Java 11.

search java compatible

dnf search openjdk

Install java 21

sudo dnf install java-21-openjdk java-21-openjdk-devel -y

Apache Tomcat 8.5.35 and 9.0.19

add user and group tomcat

sudo groupadd tomcat

sudo useradd -s /bin/false -g tomcat -d /opt/tomcat tomcat

creat dir tomcat

sudo mkdir /opt/tomcat

Install Apache Tomcat 9.0.105
downoad pakage

wget http://archive.apache.org/dist/tomcat/tomcat-9/v9.0.105/bin/apache-tomcat-9.0.105.tar.gz

extrac pakage

sudo tar -xvzf apache-tomcat-9.0.105.tar.gz -C /opt/tomcat --strip-components=1

sudo chown -R tomcat:tomcat /opt/tomcat

sudo chmod -R g+r /opt/tomcat/conf

sudo chmod g+x /opt/tomcat/conf

set user

sudo nano /opt/tomcat/conf/tomcat-users.xml

<role rolename="admin-gui"/>
<role rolename="manager-gui"/>
<user username="tomcat" password="pass" roles="admin-gui,manager-gui"/>

allow access from all ip

webapps/manager

sudo nano /opt/tomcat/webapps/manager/META-INF/context.xml

disable value on context.xml

<!--  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" /> -->

webapps/host-manager

sudo nano /opt/tomcat/webapps/host-manager/META-INF/context.xml

disable value on context.xml

<!--  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />  -->

Set Up Apache Tomcat as a System Service

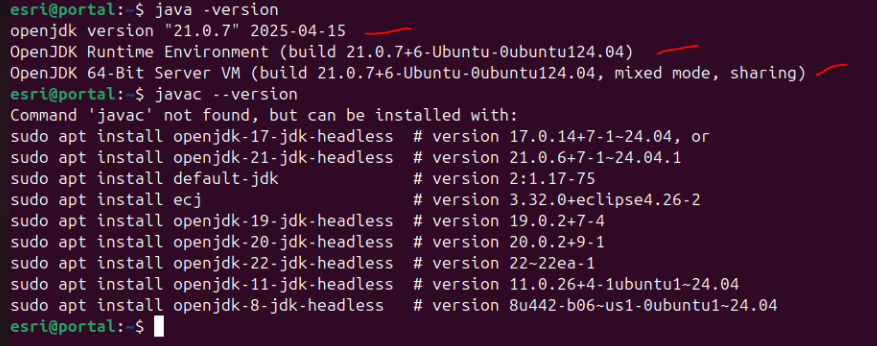

java -version

java location

alternatives --config java

[root@localhost Downloads]# alternatives --config java

There is 1 program that provides 'java'.

  Selection    Command
-----------------------------------------------
*+ 1           java-21-openjdk.x86_64 (/usr/lib/jvm/java-21-openjdk-21.0.8.0.9-1.el8.x86_64/bin/java)

Create a new tomcat.service system service file.

sudo nano /etc/systemd/system/tomcat.service

[Unit]
Description=Tomcat
After=network.target

[Service]
Type=forking

User=tomcat
Group=tomcat

Environment="JAVA_HOME=/usr/lib/jvm/java-1.11.0-openjdk-amd64"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"
Environment="CATALINA_BASE=/opt/tomcat"
Environment="CATALINA_HOME=/opt/tomcat"
Environment="CATALINA_PID=/opt/tomcat/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"

ExecStart=/opt/tomcat/bin/startup.sh
ExecStop=/opt/tomcat/bin/shutdown.sh

RestartSec=10
Restart=always

[Install]
WantedBy=multi-user.target

sudo systemctl daemon-reload
sudo systemctl enable tomcat
sudo systemctl start tomcat
sudo systemctl status tomcat
