Federeted ArcGIS Server Base ArcGIS GeoEvent Server #12

Closed

opened 3 years ago by rbsetiawan · 1 comments

rbsetiawan commented 3 years ago

Owner

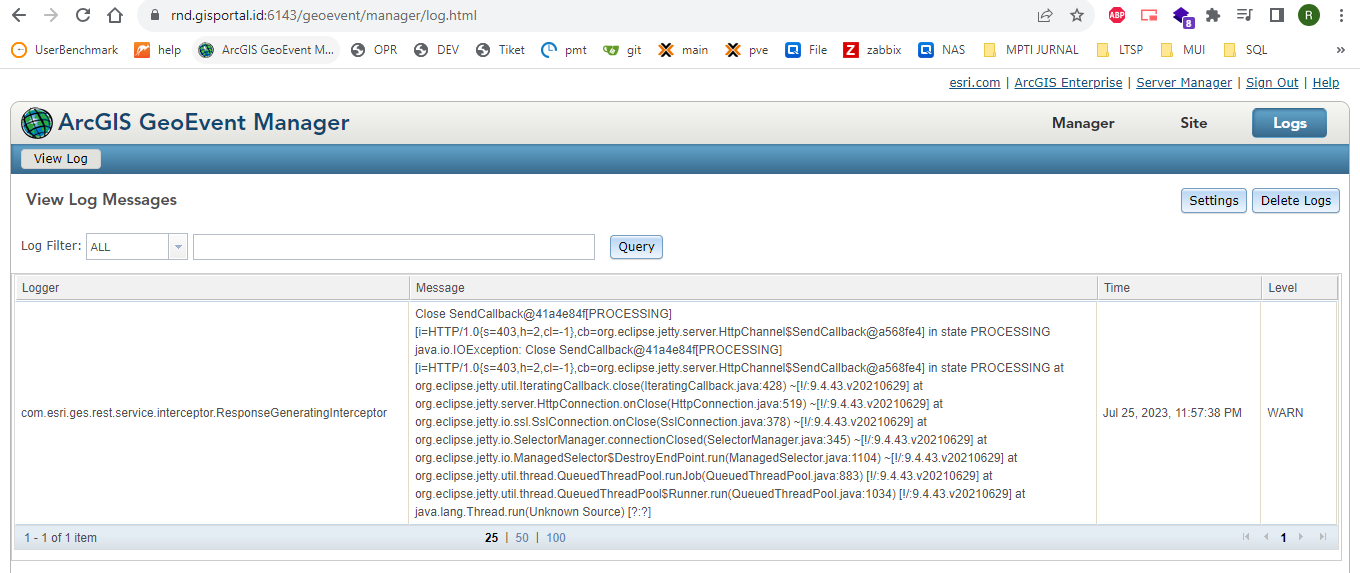

ArcGIS GeoEvenet Server befor Federeted

• error : Close SendCallback@41a4e84f[PROCESSING][i=HTTP/1.0{s=403,h=2,cl=-1},cb=org.eclipse.jetty.server.HttpChannel$SendCallback@a568fe4] in state PROCESSING java.io.IOException: Close SendCallback@41a4e84f[PROCESSING][i=HTTP/1.0{s=403,h=2,cl=-1},cb=org.eclipse.jetty.server.HttpChannel$SendCallback@a568fe4] in state PROCESSING at org.eclipse.jetty.util.IteratingCallback.close(IteratingCallback.java:428) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.server.HttpConnection.onClose(HttpConnection.java:519) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.io.ssl.SslConnection.onClose(SslConnection.java:378) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.io.SelectorManager.connectionClosed(SelectorManager.java:345) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.io.ManagedSelector$DestroyEndPoint.run(ManagedSelector.java:1104) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:883) [!/:9.4.43.v20210629] at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:1034) [!/:9.4.43.v20210629] at java.lang.Thread.run(Unknown Source) [?:?]

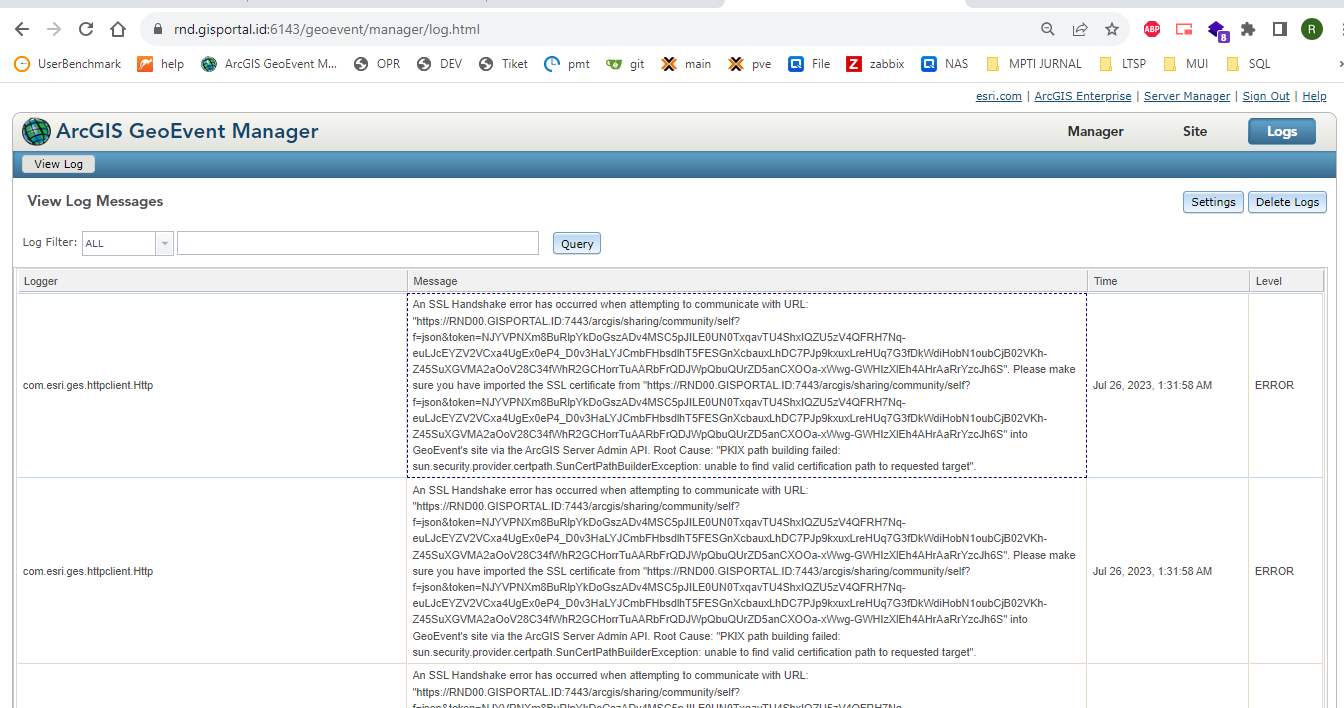

ArcGIS GeoEvenet Server after Federeted

• error: An SSL Handshake error has occurred when attempting to communicate with URL: "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=NJYVPNXm8BuRlpYkDoGszADv4MSC5pJILE0UN0TxqavTU4ShxIQZU5zV4QFRH7Nq-euLJcEYZV2VCxa4UgEx0eP4_D0v3HaLYJCmbFHbsdlhT5FESGnXcbauxLhDC7PJp9kxuxLreHUq7G3fDkWdiHobN1oubCjB02VKh-Z45SuXGVMA2aOoV28C34fWhR2GCHorrTuAARbFrQDJWpQbuQUrZD5anCXOOa-xWwg-GWHIzXlEh4AHrAaRrYzcJh6S". Please make sure you have imported the SSL certificate from "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=NJYVPNXm8BuRlpYkDoGszADv4MSC5pJILE0UN0TxqavTU4ShxIQZU5zV4QFRH7Nq-euLJcEYZV2VCxa4UgEx0eP4_D0v3HaLYJCmbFHbsdlhT5FESGnXcbauxLhDC7PJp9kxuxLreHUq7G3fDkWdiHobN1oubCjB02VKh-Z45SuXGVMA2aOoV28C34fWhR2GCHorrTuAARbFrQDJWpQbuQUrZD5anCXOOa-xWwg-GWHIzXlEh4AHrAaRrYzcJh6S" into GeoEvent's site via the ArcGIS Server Admin API. Root Cause: "PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target".

# ArcGIS GeoEvenet Server befor Federeted   - error : Close SendCallback@41a4e84f[PROCESSING][i=HTTP/1.0{s=403,h=2,cl=-1},cb=org.eclipse.jetty.server.HttpChannel$SendCallback@a568fe4] in state PROCESSING java.io.IOException: Close SendCallback@41a4e84f[PROCESSING][i=HTTP/1.0{s=403,h=2,cl=-1},cb=org.eclipse.jetty.server.HttpChannel$SendCallback@a568fe4] in state PROCESSING at org.eclipse.jetty.util.IteratingCallback.close(IteratingCallback.java:428) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.server.HttpConnection.onClose(HttpConnection.java:519) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.io.ssl.SslConnection.onClose(SslConnection.java:378) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.io.SelectorManager.connectionClosed(SelectorManager.java:345) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.io.ManagedSelector$DestroyEndPoint.run(ManagedSelector.java:1104) ~[!/:9.4.43.v20210629] at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:883) [!/:9.4.43.v20210629] at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:1034) [!/:9.4.43.v20210629] at java.lang.Thread.run(Unknown Source) [?:?] # ArcGIS GeoEvenet Server after Federeted   - error: An SSL Handshake error has occurred when attempting to communicate with URL: "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=NJYVPNXm8BuRlpYkDoGszADv4MSC5pJILE0UN0TxqavTU4ShxIQZU5zV4QFRH7Nq-euLJcEYZV2VCxa4UgEx0eP4_D0v3HaLYJCmbFHbsdlhT5FESGnXcbauxLhDC7PJp9kxuxLreHUq7G3fDkWdiHobN1oubCjB02VKh-Z45SuXGVMA2aOoV28C34fWhR2GCHorrTuAARbFrQDJWpQbuQUrZD5anCXOOa-xWwg-GWHIzXlEh4AHrAaRrYzcJh6S". Please make sure you have imported the SSL certificate from "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=NJYVPNXm8BuRlpYkDoGszADv4MSC5pJILE0UN0TxqavTU4ShxIQZU5zV4QFRH7Nq-euLJcEYZV2VCxa4UgEx0eP4_D0v3HaLYJCmbFHbsdlhT5FESGnXcbauxLhDC7PJp9kxuxLreHUq7G3fDkWdiHobN1oubCjB02VKh-Z45SuXGVMA2aOoV28C34fWhR2GCHorrTuAARbFrQDJWpQbuQUrZD5anCXOOa-xWwg-GWHIzXlEh4AHrAaRrYzcJh6S" into GeoEvent's site via the ArcGIS Server Admin API. Root Cause: "PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target".


148 KiB


105 KiB


57 KiB


70 KiB

rbsetiawan added this to the config ArcGIS GeoEvent Server project 3 years ago

rbsetiawan self-assigned this 3 years ago

rbsetiawan commented 3 years ago

Poster

Owner

Error SSL Trusted from GeoEvent Server to Portal for ArcGIS or Othe Server

ini terjadi karena SSL Trusted dari ArcGIS GeoEvent ke atau dari Portal for ArcGIS dan Server lain dalam 1 organisasi (Federeted) di anggap tidak aman.
Untuk mengatasi hall ini maka di perlukan penyelarasan ssl atau penyamaan ssl yang di gunakan dari masing-masing ArcGIS

Berikut merupakan stadar atau default ssl yang di unakan atau buil-in dari ArcGIS

Default SSL ArcGIS Enterprise

ArcIS GeoEvent Server SSL Default:

• Home > machines > RND07.GISPORTAL.ID
  Web server SSL Certificate: SelfSignedCertificate

• Home > security > config
  SSL Cipher Suites:
  TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384, TLS_RSA_WITH_AES_256_CBC_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_AES_256_GCM_SHA384, TLS_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA

ArcGIS Server (Hosting) SSL Default:

• Home > machines > RND01.GISPORTAL.ID
  Web server SSL Certificate: SelfSignedCertificate

• Home > security > config
  SSL Cipher Suites:
  TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384, TLS_RSA_WITH_AES_256_CBC_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_AES_256_GCM_SHA384, TLS_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA

Portal for ArcGIS SSL Default:

• Home > Machines > RND00.GISPORTAL.ID > SSLCertificates
  Web Server SSL Certificate: portal

• Home > Machines > RND00.GISPORTAL.ID > SSLCertificates
  Web Server SSL Cipher Suites:
  TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384, TLS_RSA_WITH_AES_256_CBC_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_AES_256_GCM_SHA384, TLS_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA

Change SSL ArcGIS Enterprise

Step 1 ArcIS GeoEvent Server SSL gisportal.id:

• Home > machines > RND07.GISPORTAL.ID > edit
  Web server SSL Certificate: SelfSignedCertificate

• Home > security > config

• SSL Config:

  Server	SSL	Status
  ArcGIS GeoEvent Server	gisportal.id	update
  ArcGIS Server (Hosting)	SelfSignedCertificate	(Default)
  Portal for ArcGIS	portal	(Default)

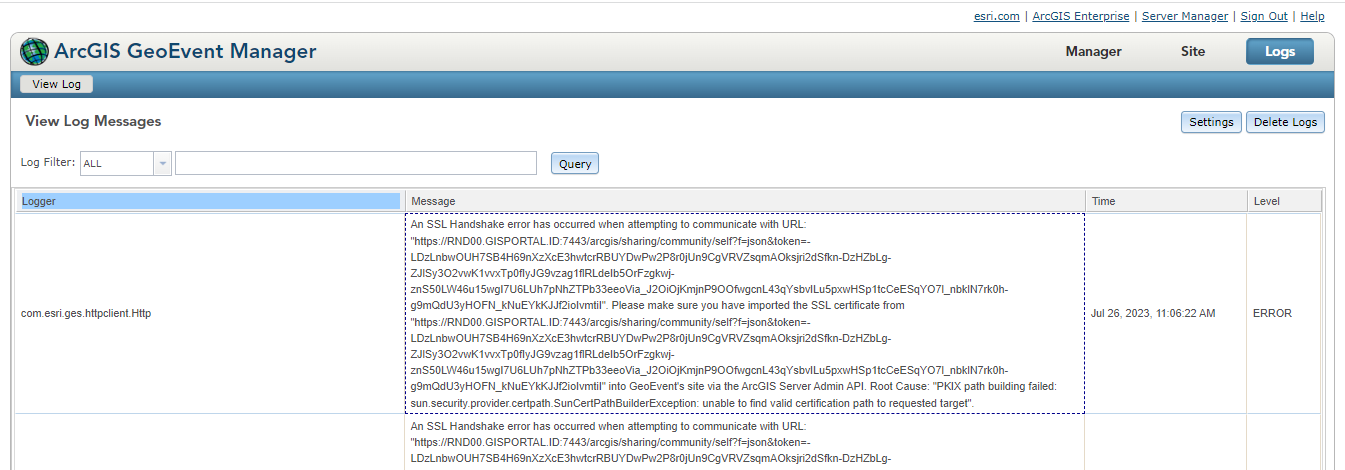

• Error GeoEvent Server: An SSL Handshake error has occurred when attempting to communicate with URL: "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=-LDzLnbwOUH7SB4H69nXzXcE3hwtcrRBUYDwPw2P8r0jUn9CgVRVZsqmAOksjri2dSfkn-DzHZbLg-ZJlSy3O2vwK1vvxTp0fIyJG9vzag1flRLdeIb5OrFzgkwj-znS50LW46u15wgI7U6LUh7pNhZTPb33eeoVia_J2OiOjKmjnP9OOfwgcnL43qYsbvILu5pxwHSp1tcCeESqYO7l_nbklN7rk0h-g9mQdU3yHOFN_kNuEYkKJJf2ioIvmtiI". Please make sure you have imported the SSL certificate from "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=-LDzLnbwOUH7SB4H69nXzXcE3hwtcrRBUYDwPw2P8r0jUn9CgVRVZsqmAOksjri2dSfkn-DzHZbLg-ZJlSy3O2vwK1vvxTp0fIyJG9vzag1flRLdeIb5OrFzgkwj-znS50LW46u15wgI7U6LUh7pNhZTPb33eeoVia_J2OiOjKmjnP9OOfwgcnL43qYsbvILu5pxwHSp1tcCeESqYO7l_nbklN7rk0h-g9mQdU3yHOFN_kNuEYkKJJf2ioIvmtiI" into GeoEvent's site via the ArcGIS Server Admin API. Root Cause: "PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target".

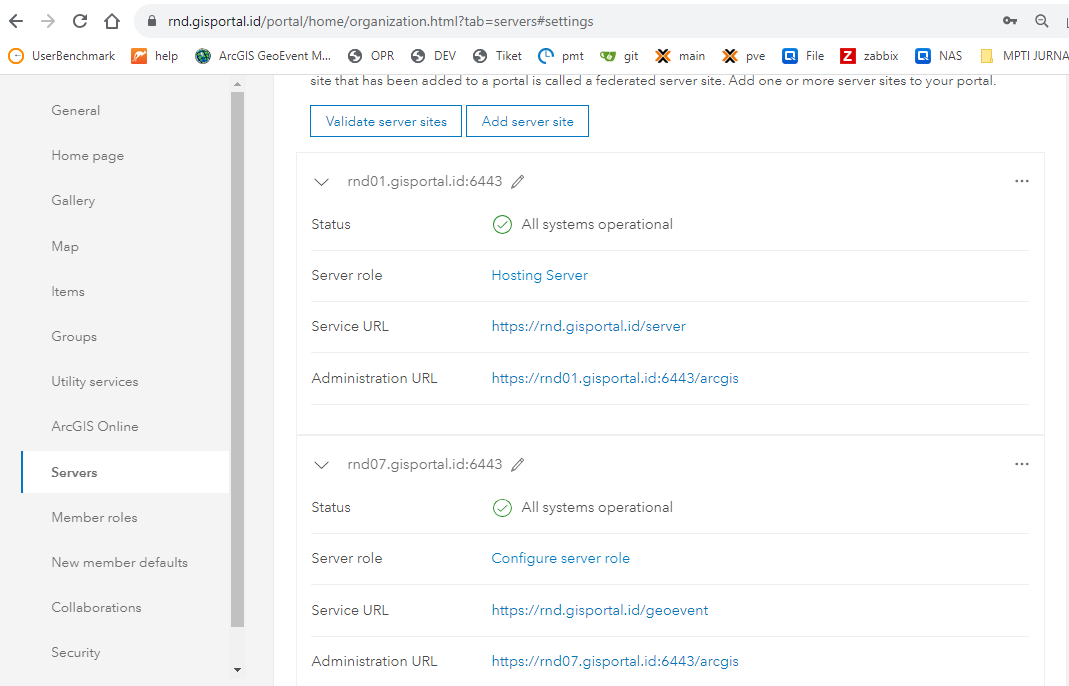

• Portal for ArcGIS federeted ArcGIS GeoEvent not valid:


Step 2 ArcGIS Server (Hosting) SSL gisportal.id:

• Home > machines > RND01.GISPORTAL.ID > edit
  Web server SSL Certificate: gisportal.id

• Home > security > config

• SSL Config:

  Server	SSL	Status
  ArcGIS GeoEvent Server	gisportal.id	update
  ArcGIS Server (Hosting)	gisportal.id	update
  Portal for ArcGIS	portal	(Default)

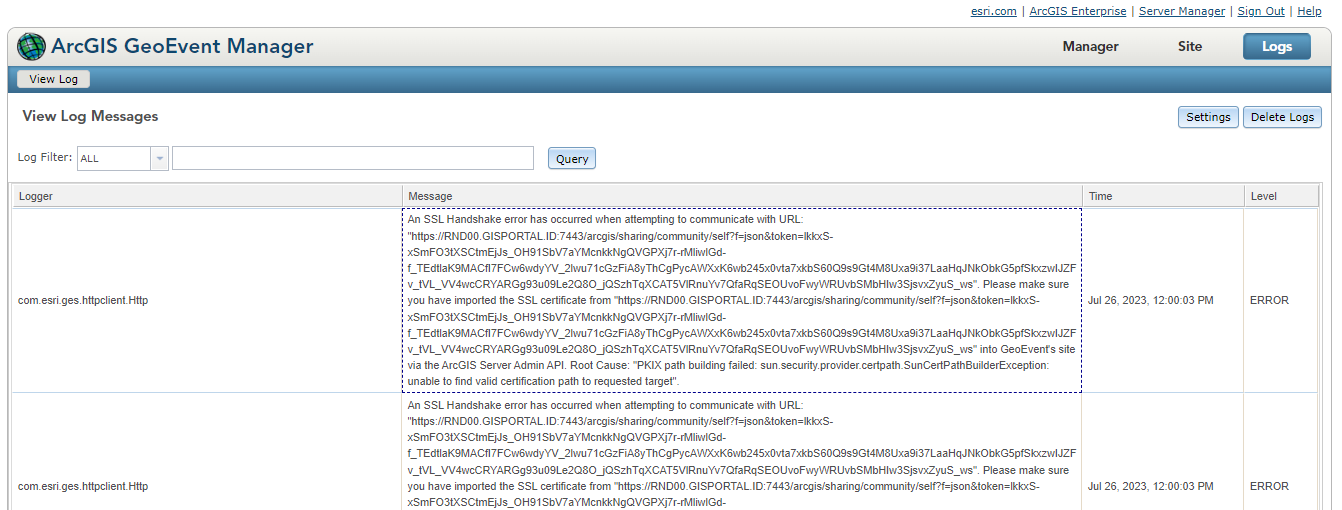

• Error GeoEvent Server: An SSL Handshake error has occurred when attempting to communicate with URL: "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=lkkxS-xSmFO3tXSCtmEjJs_OH91SbV7aYMcnkkNgQVGPXj7r-rMliwlGd-f_TEdtlaK9MACfI7FCw6wdyYV_2lwu71cGzFiA8yThCgPycAWXxK6wb245x0vta7xkbS60Q9s9Gt4M8Uxa9i37LaaHqJNkObkG5pfSkxzwIJZFv_tVL_VV4wcCRYARGg93u09Le2Q8O_jQSzhTqXCAT5VlRnuYv7QfaRqSEOUvoFwyWRUvbSMbHIw3SjsvxZyuS_ws". Please make sure you have imported the SSL certificate from "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=lkkxS-xSmFO3tXSCtmEjJs_OH91SbV7aYMcnkkNgQVGPXj7r-rMliwlGd-f_TEdtlaK9MACfI7FCw6wdyYV_2lwu71cGzFiA8yThCgPycAWXxK6wb245x0vta7xkbS60Q9s9Gt4M8Uxa9i37LaaHqJNkObkG5pfSkxzwIJZFv_tVL_VV4wcCRYARGg93u09Le2Q8O_jQSzhTqXCAT5VlRnuYv7QfaRqSEOUvoFwyWRUvbSMbHIw3SjsvxZyuS_ws" into GeoEvent's site via the ArcGIS Server Admin API. Root Cause: "PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target".

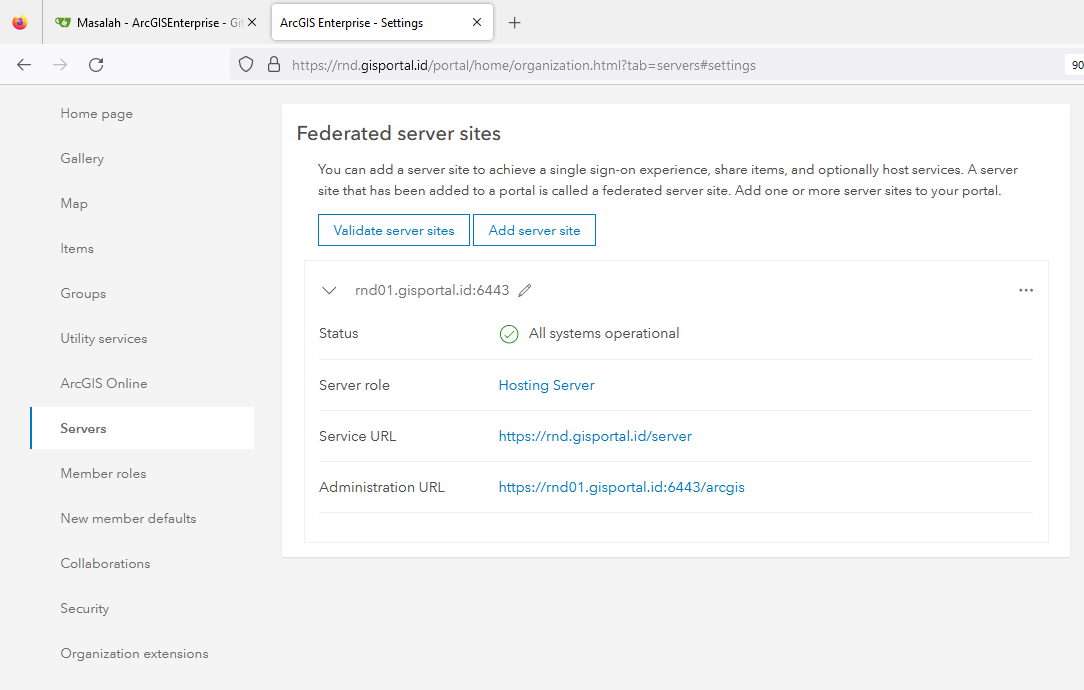

• Portal for ArcGIS federeted ArcGIS Server (Hosting) not valid:


Step 3 Portal for ArcGIS SSL gisportal.id:

• Home > Machines > RND00.GISPORTAL.ID > SSLCertificates
  Web Server SSL Certificate: gisportal.id

• Home > Machines > RND00.GISPORTAL.ID > SSLCertificates

• SSL Config:

  Server	SSL	Status
  ArcGIS GeoEvent Server	gisportal.id	update
  ArcGIS Server (Hosting)	gisportal.id	update
  Portal for ArcGIS	gisportal.id	update

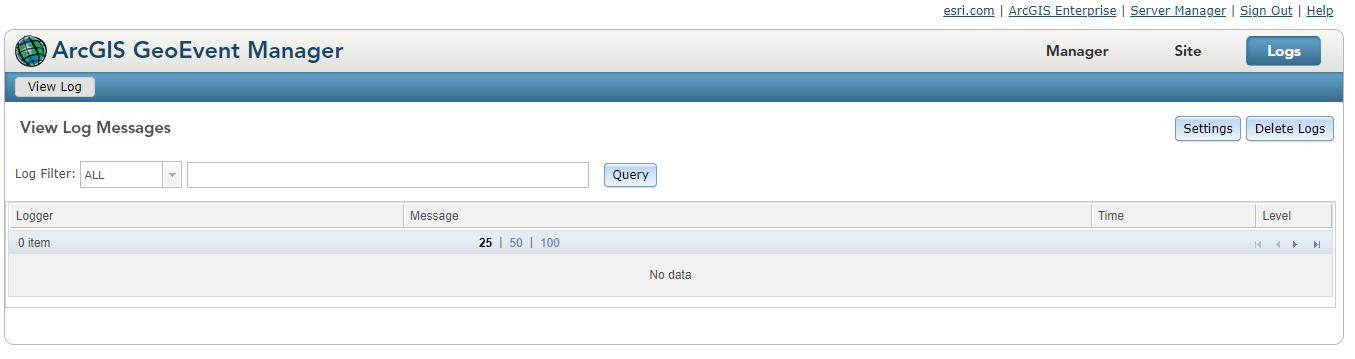

• Success GeoEvent Server:

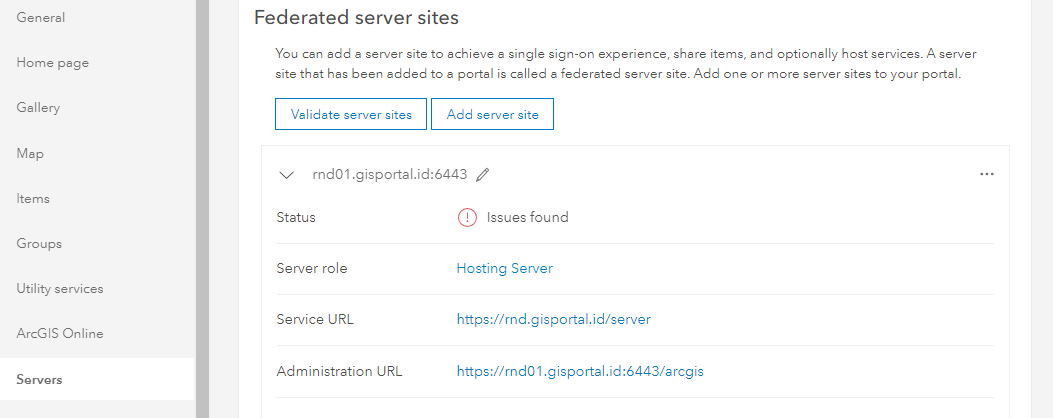

• Portal for ArcGIS federeted ArcGIS Server (Hosting) not valid:

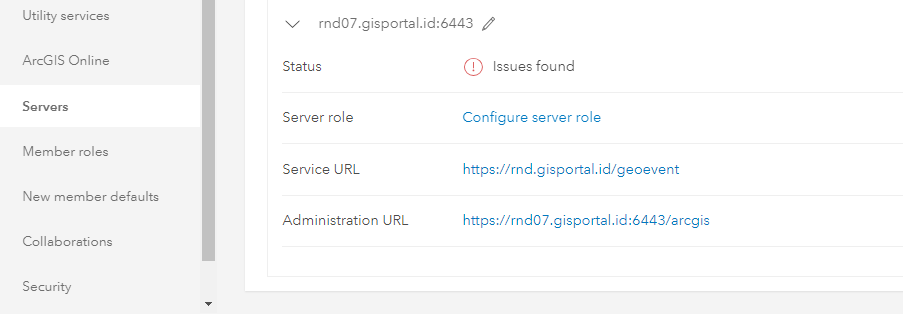

• Portal for ArcGIS federeted ArcGIS GeoEvent not valid:


# Error SSL Trusted from GeoEvent Server to Portal for ArcGIS or Othe Server ini terjadi karena SSL Trusted dari ArcGIS GeoEvent ke atau dari Portal for ArcGIS dan Server lain dalam 1 organisasi (Federeted) di anggap tidak aman. Untuk mengatasi hall ini maka di perlukan penyelarasan ssl atau penyamaan ssl yang di gunakan dari masing-masing ArcGIS Berikut merupakan stadar atau default ssl yang di unakan atau buil-in dari ArcGIS # Default SSL ArcGIS Enterprise ## ArcIS GeoEvent Server SSL Default: - Home > machines > RND07.GISPORTAL.ID Web server SSL Certificate: SelfSignedCertificate - Home > security > config SSL Cipher Suites: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384, TLS_RSA_WITH_AES_256_CBC_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_AES_256_GCM_SHA384, TLS_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA ## ArcGIS Server (Hosting) SSL Default: - Home > machines > RND01.GISPORTAL.ID Web server SSL Certificate: SelfSignedCertificate - Home > security > config SSL Cipher Suites: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384, TLS_RSA_WITH_AES_256_CBC_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_AES_256_GCM_SHA384, TLS_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA ## Portal for ArcGIS SSL Default: - Home > Machines > RND00.GISPORTAL.ID > SSLCertificates Web Server SSL Certificate: portal - Home > Machines > RND00.GISPORTAL.ID > SSLCertificates Web Server SSL Cipher Suites: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384, TLS_RSA_WITH_AES_256_CBC_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_AES_256_GCM_SHA384, TLS_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA # Change SSL ArcGIS Enterprise ## Step 1 ArcIS GeoEvent Server SSL gisportal.id: - Home > machines > RND07.GISPORTAL.ID > edit Web server SSL Certificate: SelfSignedCertificate - Home > security > config - SSL Config: | Server | SSL | Status | | -------- | -------- | -------- | | ArcGIS GeoEvent Server | gisportal.id | update | | ArcGIS Server (Hosting) | SelfSignedCertificate | (Default) | | Portal for ArcGIS | portal | (Default) | - Error GeoEvent Server: An SSL Handshake error has occurred when attempting to communicate with URL: "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=-LDzLnbwOUH7SB4H69nXzXcE3hwtcrRBUYDwPw2P8r0jUn9CgVRVZsqmAOksjri2dSfkn-DzHZbLg-ZJlSy3O2vwK1vvxTp0fIyJG9vzag1flRLdeIb5OrFzgkwj-znS50LW46u15wgI7U6LUh7pNhZTPb33eeoVia_J2OiOjKmjnP9OOfwgcnL43qYsbvILu5pxwHSp1tcCeESqYO7l_nbklN7rk0h-g9mQdU3yHOFN_kNuEYkKJJf2ioIvmtiI". Please make sure you have imported the SSL certificate from "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=-LDzLnbwOUH7SB4H69nXzXcE3hwtcrRBUYDwPw2P8r0jUn9CgVRVZsqmAOksjri2dSfkn-DzHZbLg-ZJlSy3O2vwK1vvxTp0fIyJG9vzag1flRLdeIb5OrFzgkwj-znS50LW46u15wgI7U6LUh7pNhZTPb33eeoVia_J2OiOjKmjnP9OOfwgcnL43qYsbvILu5pxwHSp1tcCeESqYO7l_nbklN7rk0h-g9mQdU3yHOFN_kNuEYkKJJf2ioIvmtiI" into GeoEvent's site via the ArcGIS Server Admin API. Root Cause: "PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target".  - Portal for ArcGIS federeted ArcGIS GeoEvent not valid:  ## Step 2 ArcGIS Server (Hosting) SSL gisportal.id: - Home > machines > RND01.GISPORTAL.ID > edit Web server SSL Certificate: gisportal.id - Home > security > config - SSL Config: | Server | SSL | Status | | -------- | -------- | -------- | | ArcGIS GeoEvent Server | gisportal.id | update | | ArcGIS Server (Hosting) | gisportal.id | update | | Portal for ArcGIS | portal | (Default) | - Error GeoEvent Server: An SSL Handshake error has occurred when attempting to communicate with URL: "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=lkkxS-xSmFO3tXSCtmEjJs_OH91SbV7aYMcnkkNgQVGPXj7r-rMliwlGd-f_TEdtlaK9MACfI7FCw6wdyYV_2lwu71cGzFiA8yThCgPycAWXxK6wb245x0vta7xkbS60Q9s9Gt4M8Uxa9i37LaaHqJNkObkG5pfSkxzwIJZFv_tVL_VV4wcCRYARGg93u09Le2Q8O_jQSzhTqXCAT5VlRnuYv7QfaRqSEOUvoFwyWRUvbSMbHIw3SjsvxZyuS_ws". Please make sure you have imported the SSL certificate from "https://RND00.GISPORTAL.ID:7443/arcgis/sharing/community/self?f=json&token=lkkxS-xSmFO3tXSCtmEjJs_OH91SbV7aYMcnkkNgQVGPXj7r-rMliwlGd-f_TEdtlaK9MACfI7FCw6wdyYV_2lwu71cGzFiA8yThCgPycAWXxK6wb245x0vta7xkbS60Q9s9Gt4M8Uxa9i37LaaHqJNkObkG5pfSkxzwIJZFv_tVL_VV4wcCRYARGg93u09Le2Q8O_jQSzhTqXCAT5VlRnuYv7QfaRqSEOUvoFwyWRUvbSMbHIw3SjsvxZyuS_ws" into GeoEvent's site via the ArcGIS Server Admin API. Root Cause: "PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target".  - Portal for ArcGIS federeted ArcGIS Server (Hosting) not valid:  ## Step 3 Portal for ArcGIS SSL gisportal.id: - Home > Machines > RND00.GISPORTAL.ID > SSLCertificates Web Server SSL Certificate: gisportal.id - Home > Machines > RND00.GISPORTAL.ID > SSLCertificates - SSL Config: | Server | SSL | Status | | -------- | -------- | -------- | | ArcGIS GeoEvent Server | gisportal.id | update | | ArcGIS Server (Hosting) | gisportal.id | update | | Portal for ArcGIS | gisportal.id | update | - Success GeoEvent Server:  - Portal for ArcGIS federeted ArcGIS Server (Hosting) not valid:  - Portal for ArcGIS federeted ArcGIS GeoEvent not valid:


104 KiB


37 KiB


86 KiB


40 KiB


24 KiB

rbsetiawan closed this issue 3 years ago

rbsetiawan added the

ArcGIS Enterprise

Issue

RND

labels 3 years ago

rbsetiawan referenced this issue 3 years ago

Error ArcGIS GeoEvent : HTTP Worker Thread Error: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. #6
