Resize main storage #2

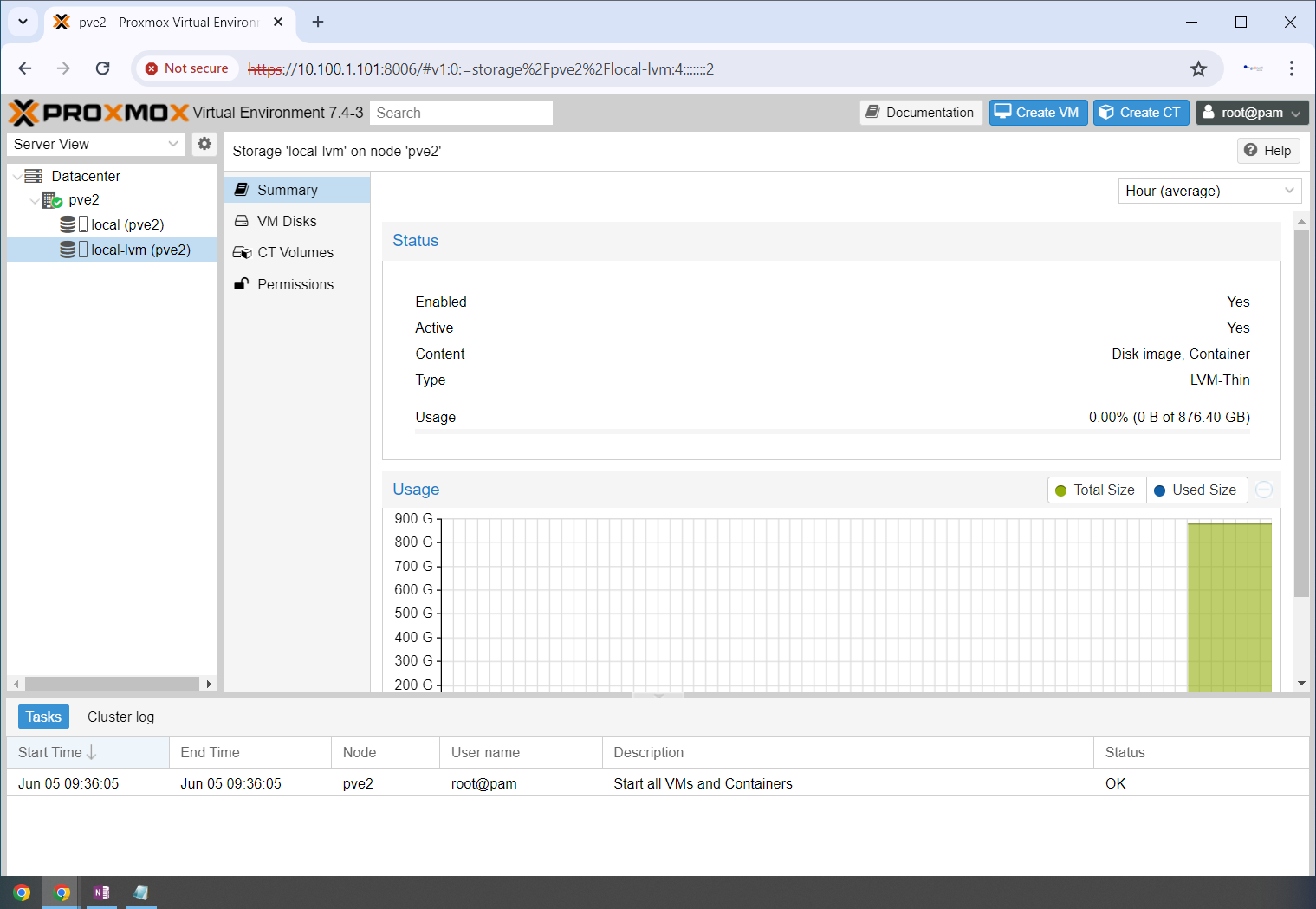

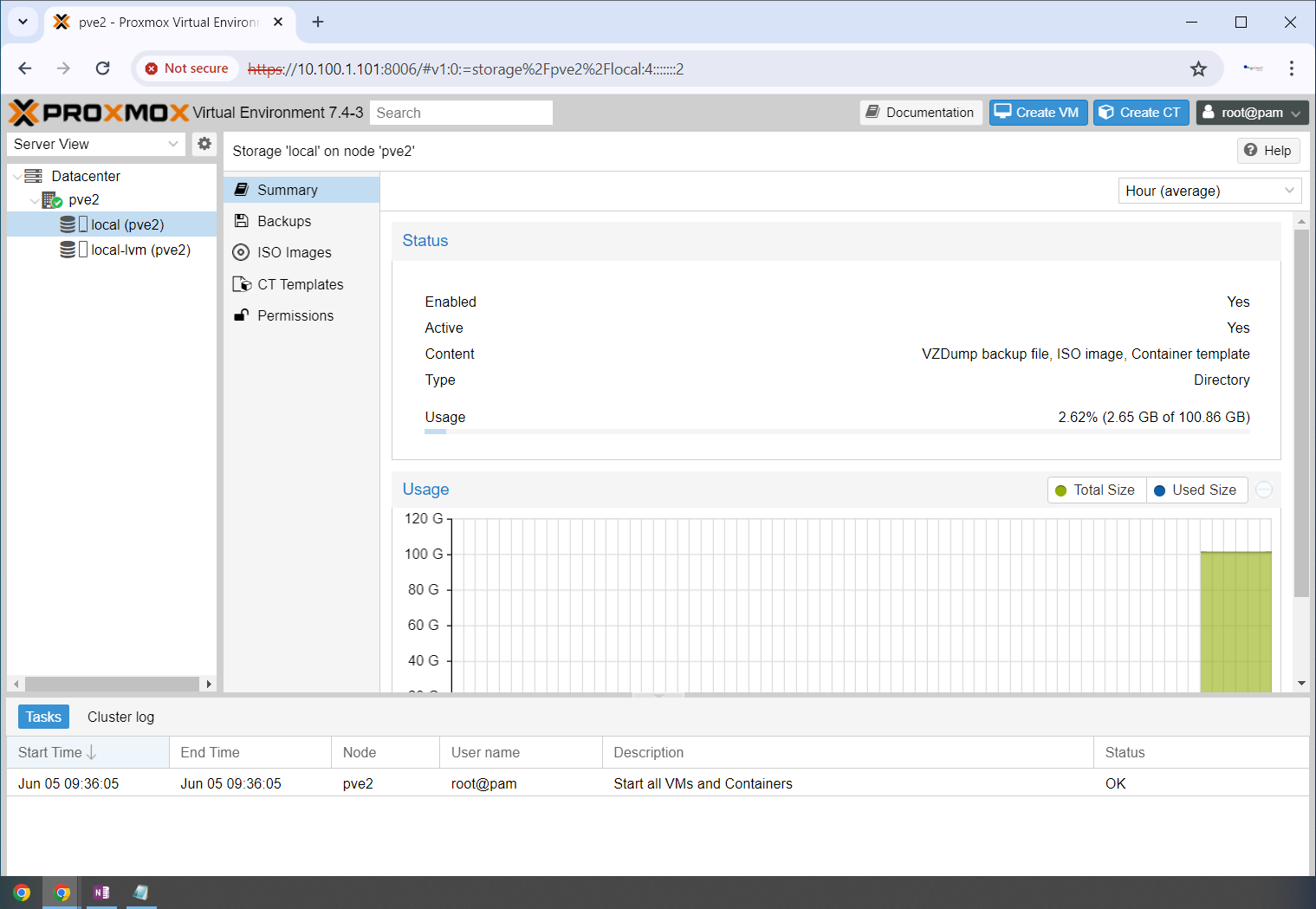

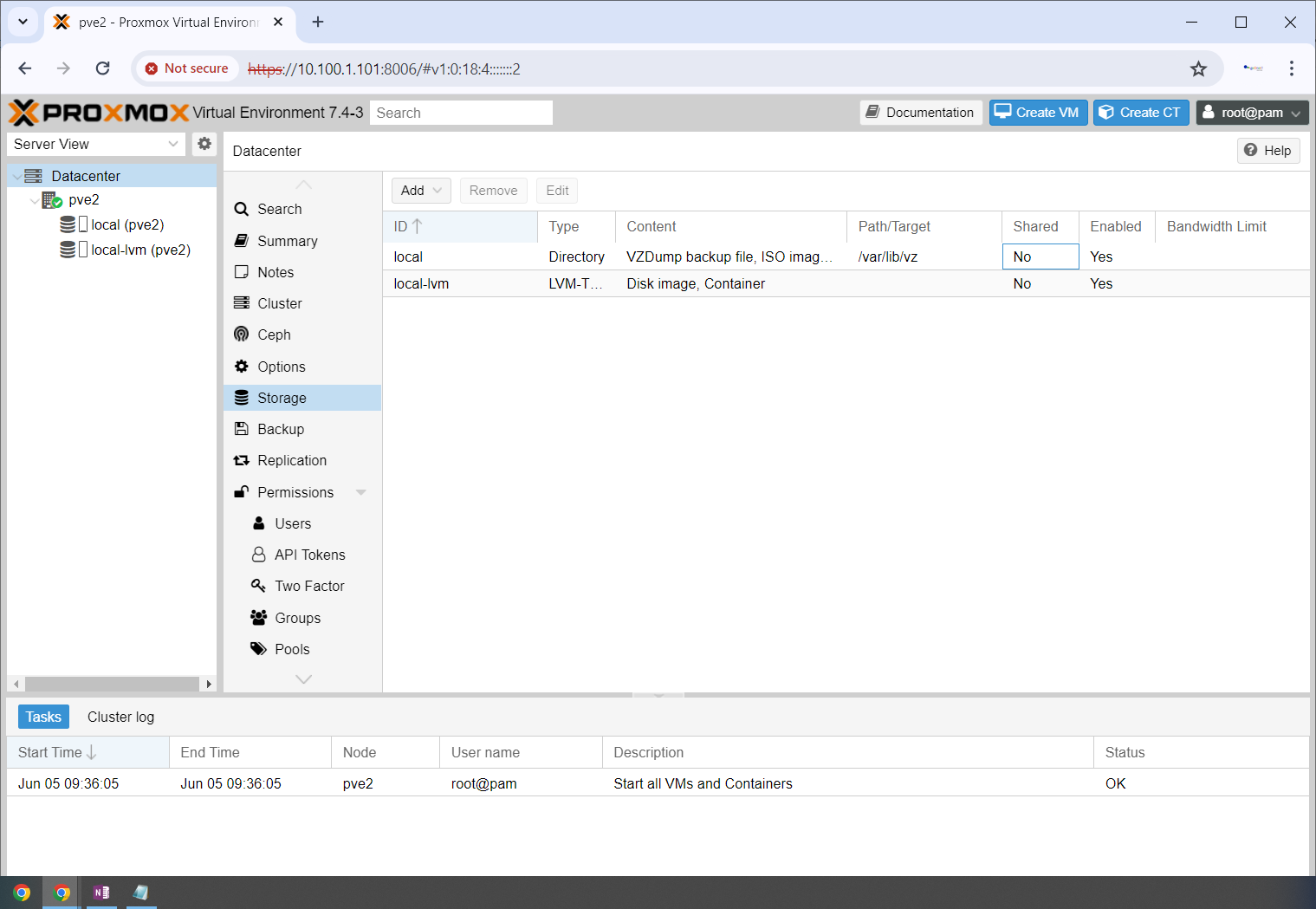

proxmox default storage:
- local
- local-lvm
cek storager

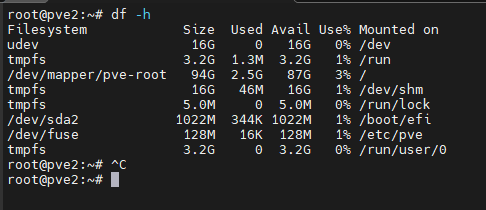

df -h

outpu

root@pve2:~# df -h
Filesystem            Size  Used Avail Use% Mounted on
udev                   16G     0   16G   0% /dev
tmpfs                 3.2G  1.3M  3.2G   1% /run
/dev/mapper/pve-root   94G  2.5G   87G   3% /
tmpfs                  16G   46M   16G   1% /dev/shm
tmpfs                 5.0M     0  5.0M   0% /run/lock
/dev/sda2            1022M  344K 1022M   1% /boot/efi
/dev/fuse             128M   16K  128M   1% /etc/pve
tmpfs                 3.2G     0  3.2G   0% /run/user/0
root@pve2:~#

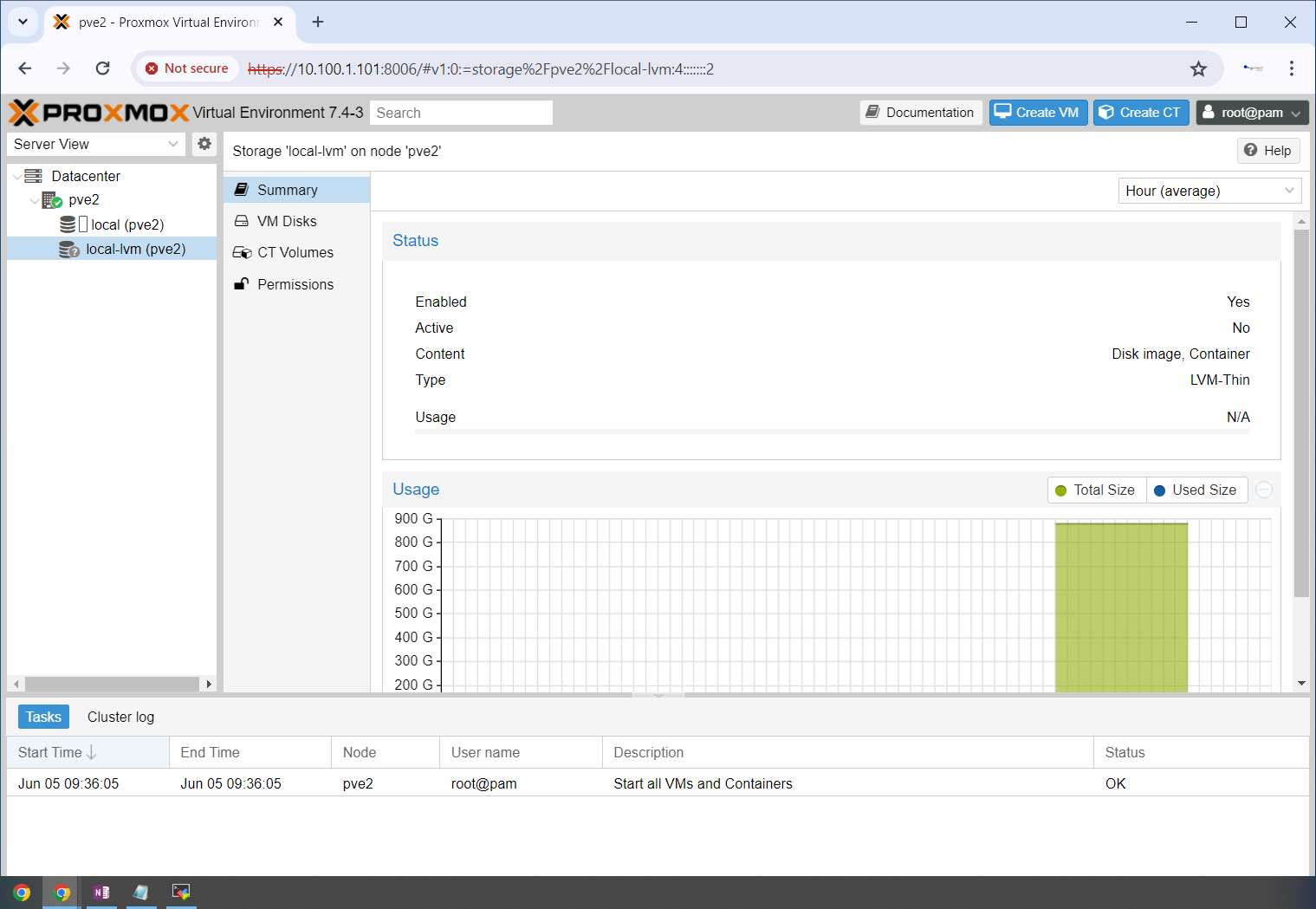

remove local-lvm storage

lvremove /dev/pve/data

- output
```
root@pve2:~# lvremove /dev/pve/data
Do you really want to remove active logical volume pve/data? [y/n]: y
  Logical volume "data" successfully removed
root@pve2:~#

```

resize local storage

lvresize -l +100%FREE /dev/pve/root

- output
```
root@pve2:~# lvresize -l +100%FREE /dev/pve/root
  Size of logical volume pve/root changed from 96.00 GiB (24576 extents) to <944.87 GiB (241886 extents).
  Logical volume pve/root successfully resized.
root@pve2:~#

```

validate

resize2fs /dev/mapper/pve-root

- output
```
root@pve2:~# resize2fs /dev/mapper/pve-root
resize2fs 1.46.5 (30-Dec-2021)
Filesystem at /dev/mapper/pve-root is mounted on /; on-line resizing required
old_desc_blocks = 12, new_desc_blocks = 119
The filesystem on /dev/mapper/pve-root is now 247691264 (4k) blocks long.

root@pve2:~#

```

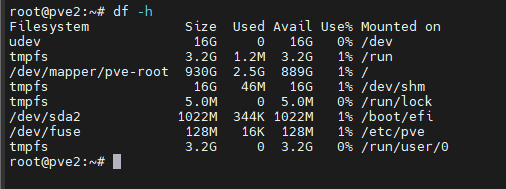

re-check storage

df -h

- output
```
root@pve2:~# df -h
Filesystem            Size  Used Avail Use% Mounted on
udev                   16G     0   16G   0% /dev
tmpfs                 3.2G  1.2M  3.2G   1% /run
/dev/mapper/pve-root  930G  2.5G  889G   1% /
tmpfs                  16G   46M   16G   1% /dev/shm
tmpfs                 5.0M     0  5.0M   0% /run/lock
/dev/sda2            1022M  344K 1022M   1% /boot/efi
/dev/fuse             128M   16K  128M   1% /etc/pve
tmpfs                 3.2G     0  3.2G   0% /run/user/0
root@pve2:~#

```

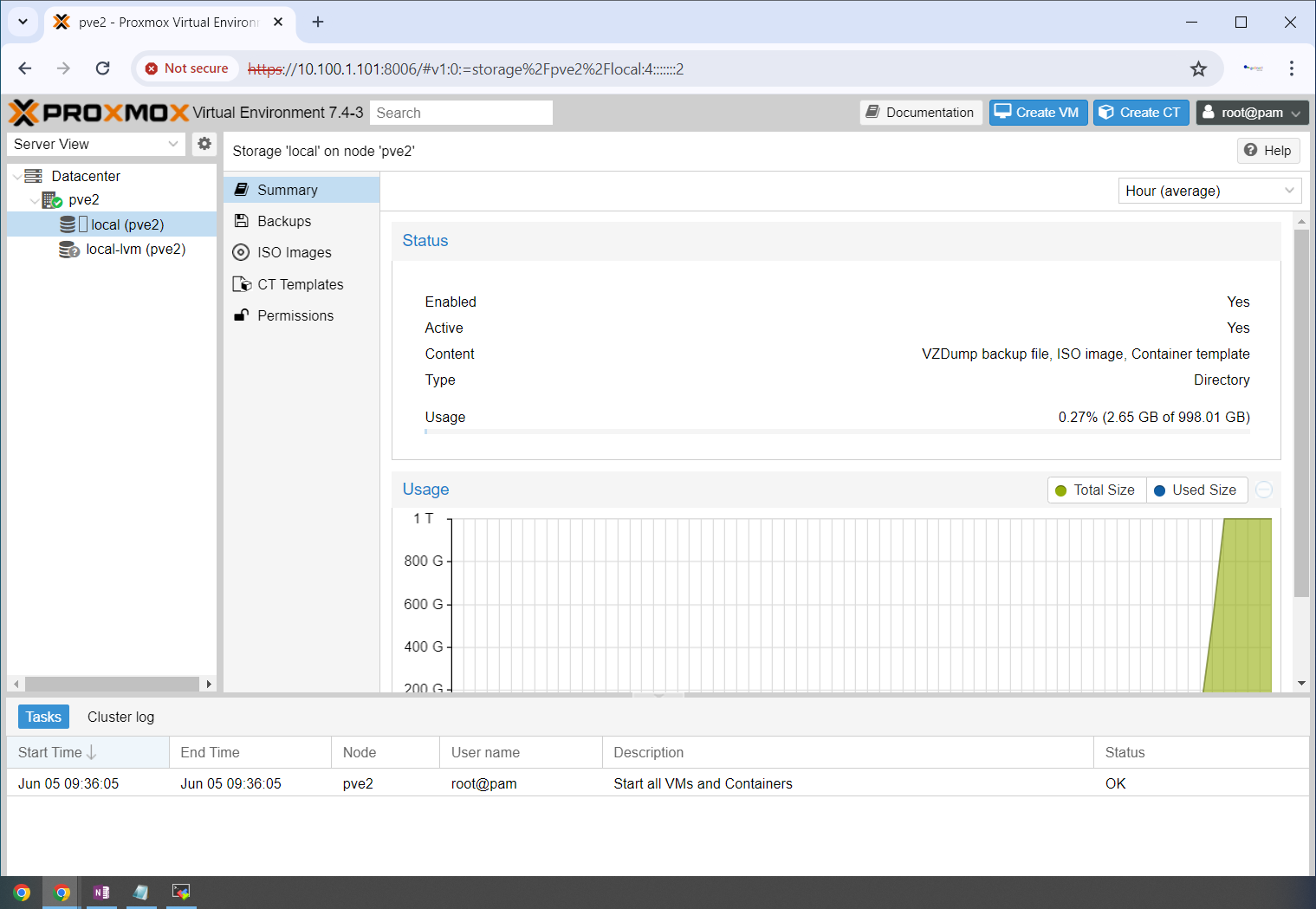

local-lvm berhasil di remove dan pindanh ke local
- local lvm remove
- local resize

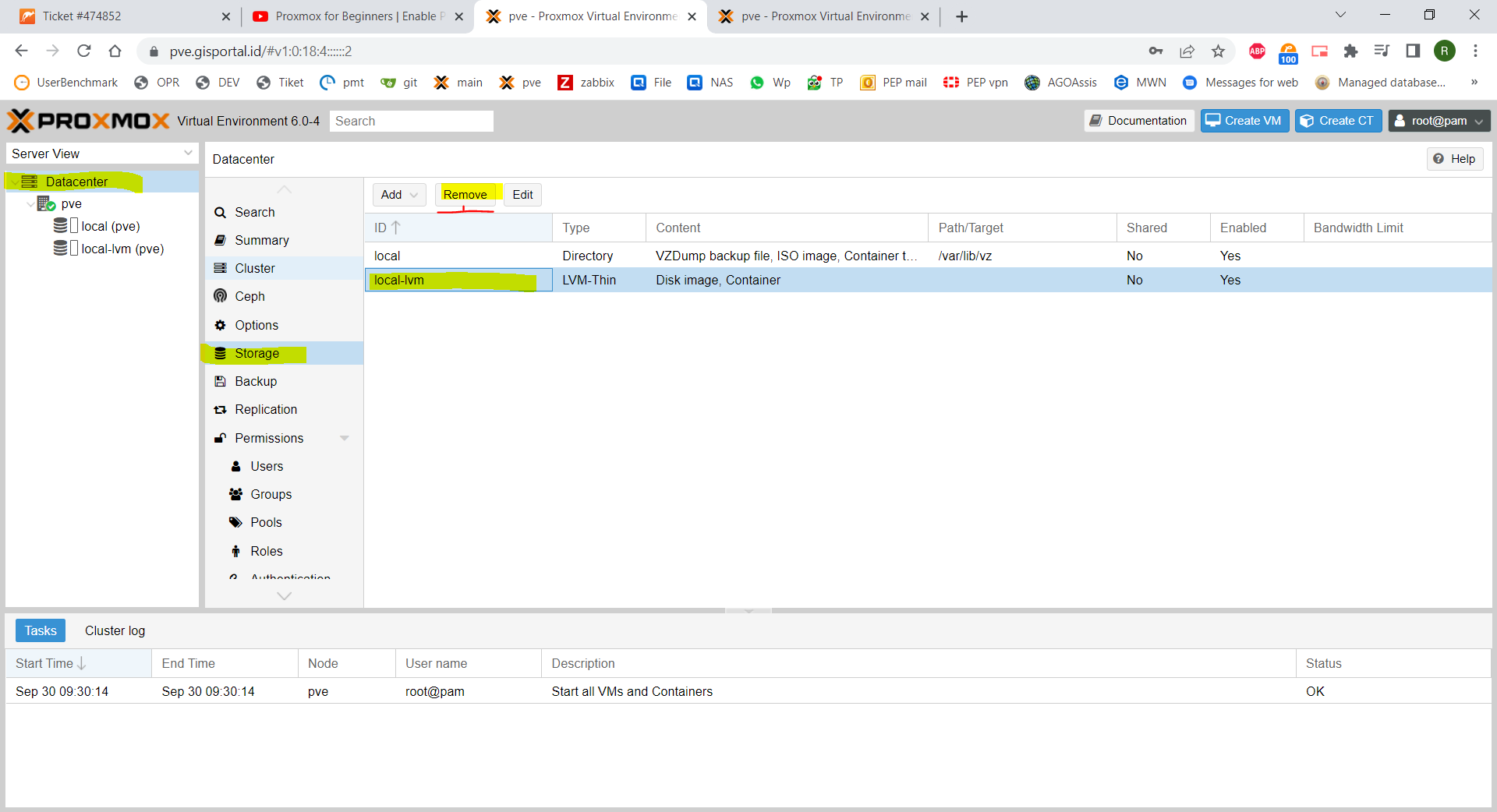

Remove local-lvm from GUI
