linux ubuntu 20.04 command #52

main.py

# stream only

import subprocess
import cv2
import time
rtmp_url = "rtmp://gisportal.id:1935/hls/rpi2wcam"

# In my mac webcamera is 0, also you can set a video file name instead, for example "/home/user/demo.mp4"
path = 0
cap = cv2.VideoCapture(path)

# gather video info to ffmpeg
fps = int(cap.get(cv2.CAP_PROP_FPS))
# fps = 12
width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
# widths = width*2
# heights = widths*2
print(fps, width, height)


# command and params for ffmpeg
command = ['ffmpeg',
           '-y',
           '-f', 'rawvideo',
           '-vcodec', 'rawvideo',
           '-pix_fmt', 'bgr24',
           '-s', "{}x{}".format(width, height),
           '-r', str(fps),
           '-i', '-',
           '-c:v', 'libx264',
           '-pix_fmt', 'yuv420p',
           '-preset', 'ultrafast',
           '-f', 'flv',
           rtmp_url]

# using subprocess and pipe to fetch frame data
p = subprocess.Popen(command, stdin=subprocess.PIPE, shell=False)




while cap.isOpened():
    ret, frame = cap.read()
    if not ret:
        print("frame read failed")
        break

    # YOUR CODE FOR PROCESSING FRAME HERE
    # write to pipe
    p.stdin.write(frame.tobytes())

ubuntu version

lsb_release -a

Install ssh

install ssh

sudo apt update
sudo apt install openssh-server
sudo systemctl status ssh

allow ssh port 22

sudo ufw allow ssh

auto start ssh

sudo systemctl enable --now ssh

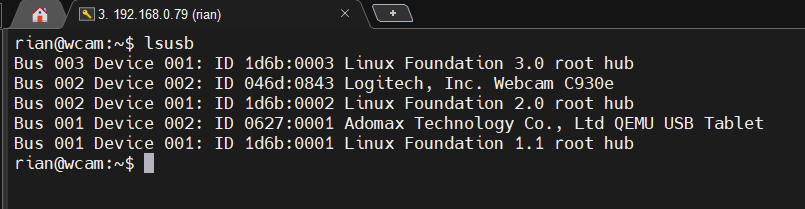

list usb device

lsusb

Python install

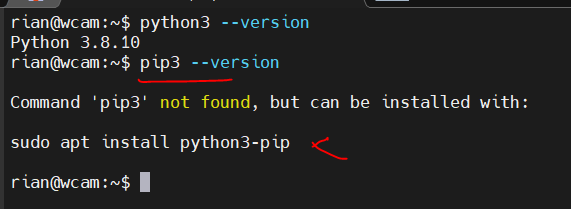

cek python3 version

python3 --version
pip3 --version

install pip3

sudo apt install python3-pip
pip3 --version

USB CAM install

ffmpeg

sudo apt-get install v4l-utils ffmpeg

cek usb device cam

v4l2-ctl --list-devices

restart host

sudo reboot

cek usb device cam

v4l2-ctl --list-devices

luvcview camera configurable

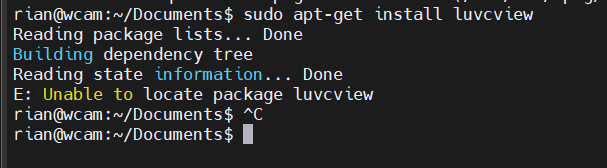

sudo apt-get install luvcview

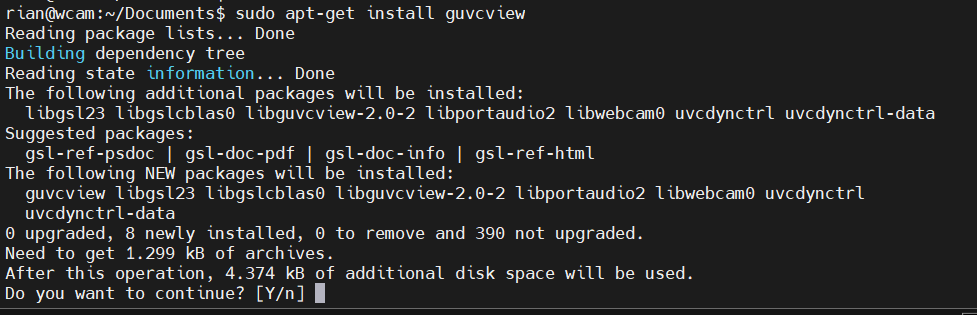

sudo apt-get install guvcview

sudo apt-get install fswebcam

opencv

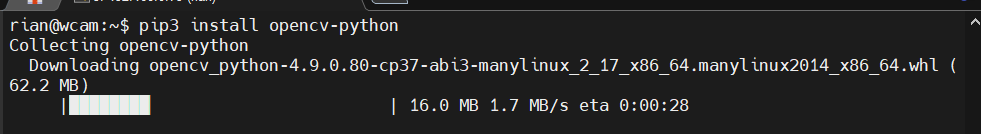

pip3 install opencv-python

runing webcamp stream on background from ssh
& tanda tersebut untuk lock command tetap berjalan saat ssh di close

nohup python3 streamcam.py &

refrensi

linuxize : How to Enable SSH on Ubuntu 20.04
rosehosting : How to Install pip on Ubuntu 20.04
substack : How To Use Your Webcam On Linux
youtube : Install a USB camera or a webcam on Ubuntu - Linux
