ArcGIS Monitor 2023.3 (Windows) #126

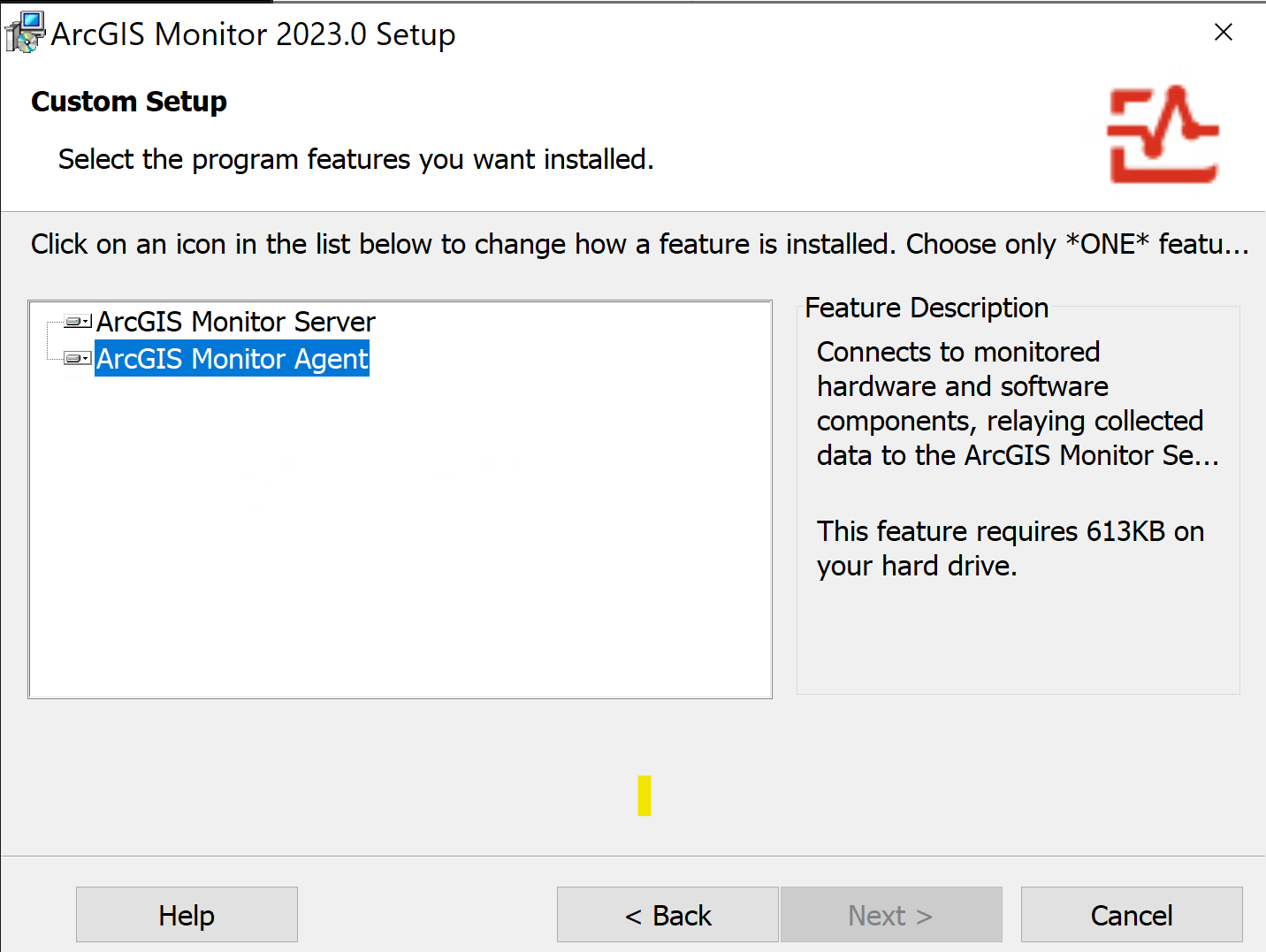

Note

ArcGIS Monitor 10.8.1 is fully capable of monitoring ArcGIS 10.4 through 10.9.1 environments.

ArcGIS Monitor System

OS

Supported operating system	Latest update or service pack tested
Windows Server 2022 Standard and Datacenter	Feb 2023 update
Windows Server 2019 Standard and Datacenter	Feb 2023 update
Windows Server 2016 Standard and Datacenter	Feb 2023 update

Hardware requirements
- For ArcGIS Monitor Server, a minimum of 2 CPU cores and 2 GB of RAM are required.
- For ArcGIS Monitor Agent, a minimum of 1 CPU core and 1 GB of RAM are required.

Database support

Privilage:
LOGIN, NOSUPERUSER, INHERIT, NOCREATEDB, NOCREATEROLE, NOREPLICATION

Supported database software	Latest version tested
PostgreSQL (64 bit)	16.0
PostgreSQL (64 bit)	15.4
PostgreSQL (64 bit)	14.9
PostgreSQL (64 bit)	13.12

Database command set

Create user -> DB -> set db owner

CREATE USER agm WITH PASSWORD '<password>'
  LOGIN
  NOSUPERUSER
  INHERIT
  NOCREATEDB
  NOCREATEROLE
  NOREPLICATION;

CREATE DATABASE agm WITH OWNER=agm;

GRANT ALL ON DATABASE agm TO agm;

ALTER DATABASE agm SET search_path FROM CURRENT;

Create SCHEMA

CREATE SCHEMA agm AUTHORIZATION agm

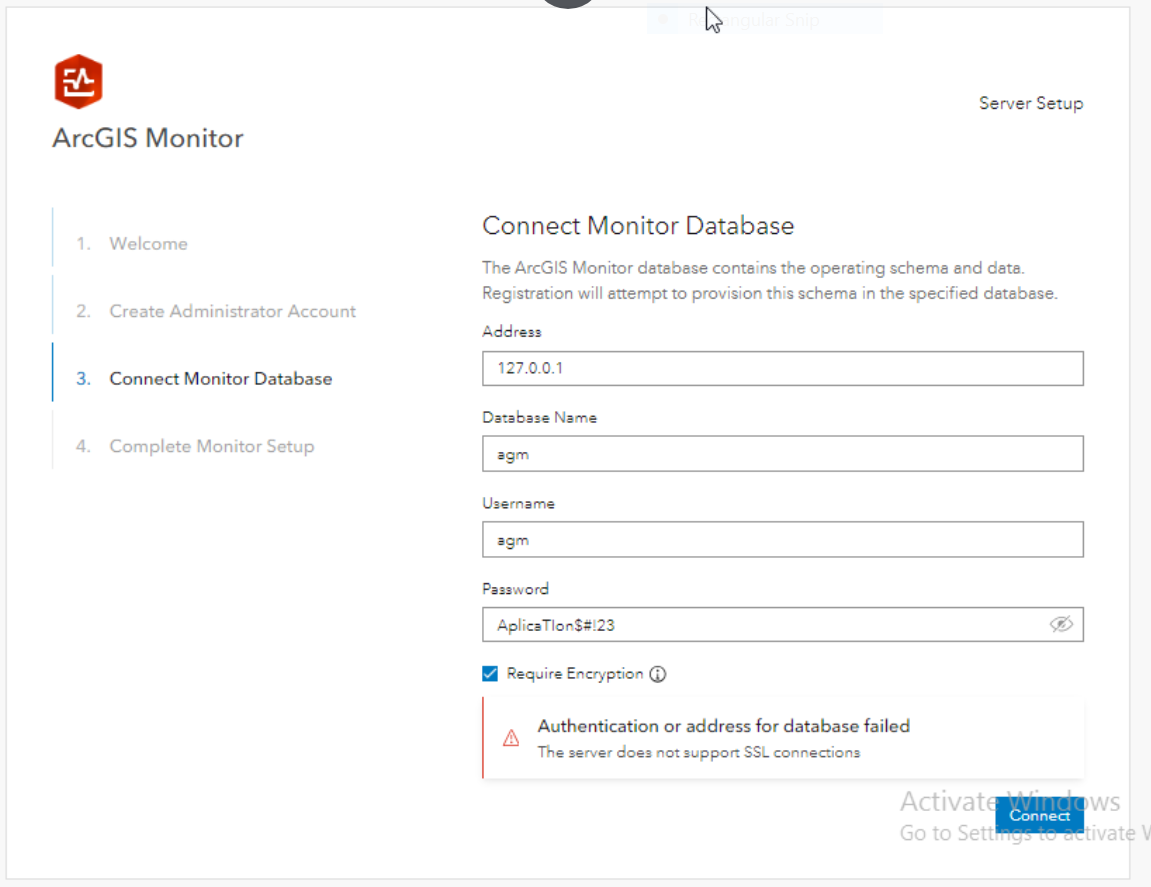

Error

PgSQL SSL Connection

Enable PgSQL SSL Connection

Edit postgresql.conf

ssl = on
ssl_ca_file = 'root.crt'
ssl_cert_file = 'server.crt'
ssl_crl_file = ''
ssl_key_file = 'server.key'
ssl_ciphers = 'HIGH:MEDIUM:+3DES:!aNULL' # allowed SSL ciphers
ssl_prefer_server_ciphers = on

restart PgSQL

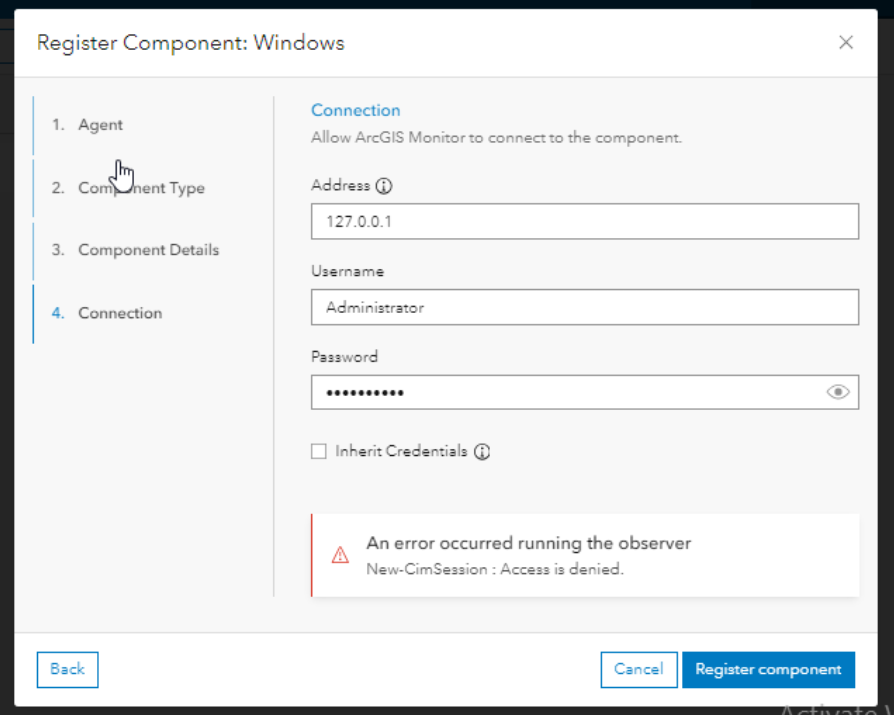

Error register host

Refrensi

arcgis : ArcGIS Monitor system requirements
enterprise.arcgis.com : What is ArcGIS Monitor
community.esri.com : FAQ - ArcGIS Monitor Installation & Configuration
youtube : ArcGIS Monitor: Adding a Windows System
community.esri.com : Monitor Agent
community.esri.com : Connecting to ArcGIS Monitor 2023 through IIS
cherryservers : How to Configure SSL on PostgreSQL
urlisolation.com : Register Windows host
urlisolation : Enable permissions for WMI cimv2
community.esri.com : New-CimSession : WinRM cannot process the request. The following error with errorcode 0x80090311 occurred while using
:
:
