Centos 7 - ArcGIS Enterprise Preparation #105

Open
opened 3 years ago by rbsetiawan · 0 comments
rbsetiawan commented 3 years ago
Owner

ArcGIS Enterprise Version support Centos Distro

Operating system 10.5.x 10.6.x 10.7.x
CentOS Linux 6 1 1 1
CentOS Linux 7 1 1 1
Grand Total 2 2 2

Linux ArcGIS Enterprise stable version

Operating system 10.4.x 10.5.x 10.6.x 10.7.x 10.8.x 10.9.x 10.0 11.1
SUSE Linux Enterprise Server 11 1 1 1
SUSE Linux Enterprise Server 12 1 1 1 1 1 1 1 1
SUSE Linux Enterprise Server 15 1 1 1
SUSE Linux Enterprise Server 15 SP1 (supported with 10.8.1 only) 1
  • Support list from 10.4 to 11.1
    Operating system 10.4.x 10.5.x 10.6.x 10.7.x 10.8.x 10.9.x 10.0 11.1
    CentOS Linux 6 1 1
    CentOS Linux 7 1 1
    CentOS Linux 6 1
    CentOS Linux 7 1
    Oracle Linux 6 1 1
    Oracle Linux 7 1 1
    Oracle Linux 6 1
    Oracle Linux 7 1
    Oracle Linux 8 1 1
    Red Hat Enterprise Linux (RHEL) Server 7 1
    Red Hat Enterprise Linux Server 5 1
    Red Hat Enterprise Linux Server 6 1 1 1
    Red Hat Enterprise Linux Server 7 1 1 1
    Red Hat Enterprise Linux Server 6 1 1
    Red Hat Enterprise Linux Server 7 1 1
    Red Hat Enterprise Linux Server 8 1 1 1
    Red Hat Enterprise Linux Server 8 (supported with 10.8.1 only) 1
    Rocky Linux 8 1
    Scientific Linux 6 1 1
    Scientific Linux 7 1 1
    Scientific Linux 6 1
    Scientific Linux 7 1
    SUSE Linux Enterprise Server 11 1 1 1
    SUSE Linux Enterprise Server 12 1 1 1
    SUSE Linux Enterprise Server 12 1 1 1 1 1
    SUSE Linux Enterprise Server 15 1 1 1
    SUSE Linux Enterprise Server 15 (supported with 10.8.1 only) 1
    Ubuntu Server LTS 1 1
    Ubuntu Server LTS 16 1
    Ubuntu Server LTS 18 1
    Ubuntu Server 16.04 LTS 1
    Ubuntu Server 18.04 LTS 1 1 1 1
    Ubuntu Server 20.04 LTS 1 1 1
    Ubuntu Server 20.04 LTS (supported with 10.8.1 only) 1
    Ubuntu Server 22.04 LTS 1

Web Server Support

Tomcat Install

Apache Tomcat Version 10.4.x 10.5.x 10.6.x 10.7.x 10.8.x 10.9.x 11.0 11.1
Apache Tomcat 7.0.65 1
Apache Tomcat 7.0.72 1
Apache Tomcat 7.0.82 1
Apache Tomcat 7.0.92 1 1
Apache Tomcat 8.0.32* 1
Apache Tomcat 8.0.38 1
Apache Tomcat 8.0.47 1
Apache Tomcat 8.5.23 1
Apache Tomcat 8.5.35 1 1 1 1 1
Apache Tomcat 8.5.6 1
Apache Tomcat 9.0.19 1 1 1 1 1

Java Compponen

Java Version 10.4.x 10.5.x 10.6.x 10.7.x 10.8.x 10.9.x 11.0 11.1
Java 7 1
Java 8 1 1 1 1 1 1 1 1
Java 11 1 1 1 1 1
Java 12 1 1 1 1 1
Java 15 1
  • Open ArcGIS Port

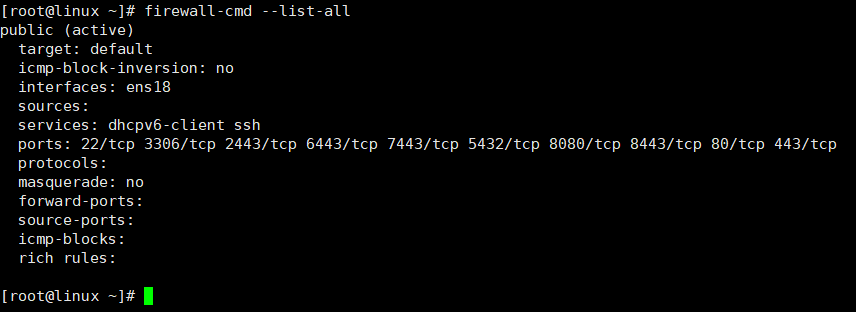

    firewall-cmd --list-all
firewall-cmd --permanent --add-port=3306/tcp
firewall-cmd --permanent --add-port=2443/tcp
firewall-cmd --permanent --add-port=6443/tcp
firewall-cmd --permanent --add-port=7443/tcp
firewall-cmd --permanent --add-port=5432/tcp
firewall-cmd --permanent --add-port=8080/tcp
firewall-cmd --permanent --add-port=8443/tcp
firewall-cmd --permanent --add-port=80/tcp
firewall-cmd --permanent --add-port=443/tcp
firewall-cmd --reload

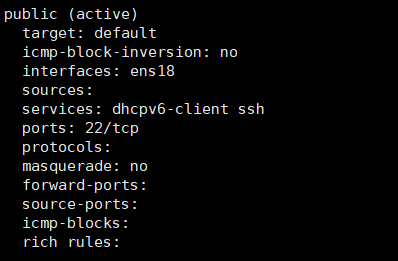

    default open port
    image image
  • ulimits.conf

    Update ulimits.conf

    sudo nano /etc/security/limits.conf

        root soft nofile 65535
    root hard nofile 65535
    root soft nproc 25059
    root hard nproc 25059

    arcgis soft nofile 65535
    arcgis hard nofile 65535
    arcgis soft nproc 25059
    arcgis hard nproc 25059

    esri soft nofile 65535
    esri hard nofile 65535
    esri soft nproc 25059
    esri hard nproc 25059

    LimitNOFILE=65536
    LimitNPROC=25059
    LimitAS=infinity
    LimitFSIZE=infinity

    reboot host

    reboot

    cek ulimits.conf

    ulimit -Hn -Sn
ulimit -Hu -Su


  • Tomcat
    cat /etc/centos-release

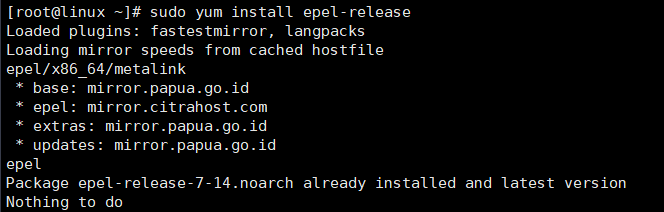

    sudo yum install epel-release

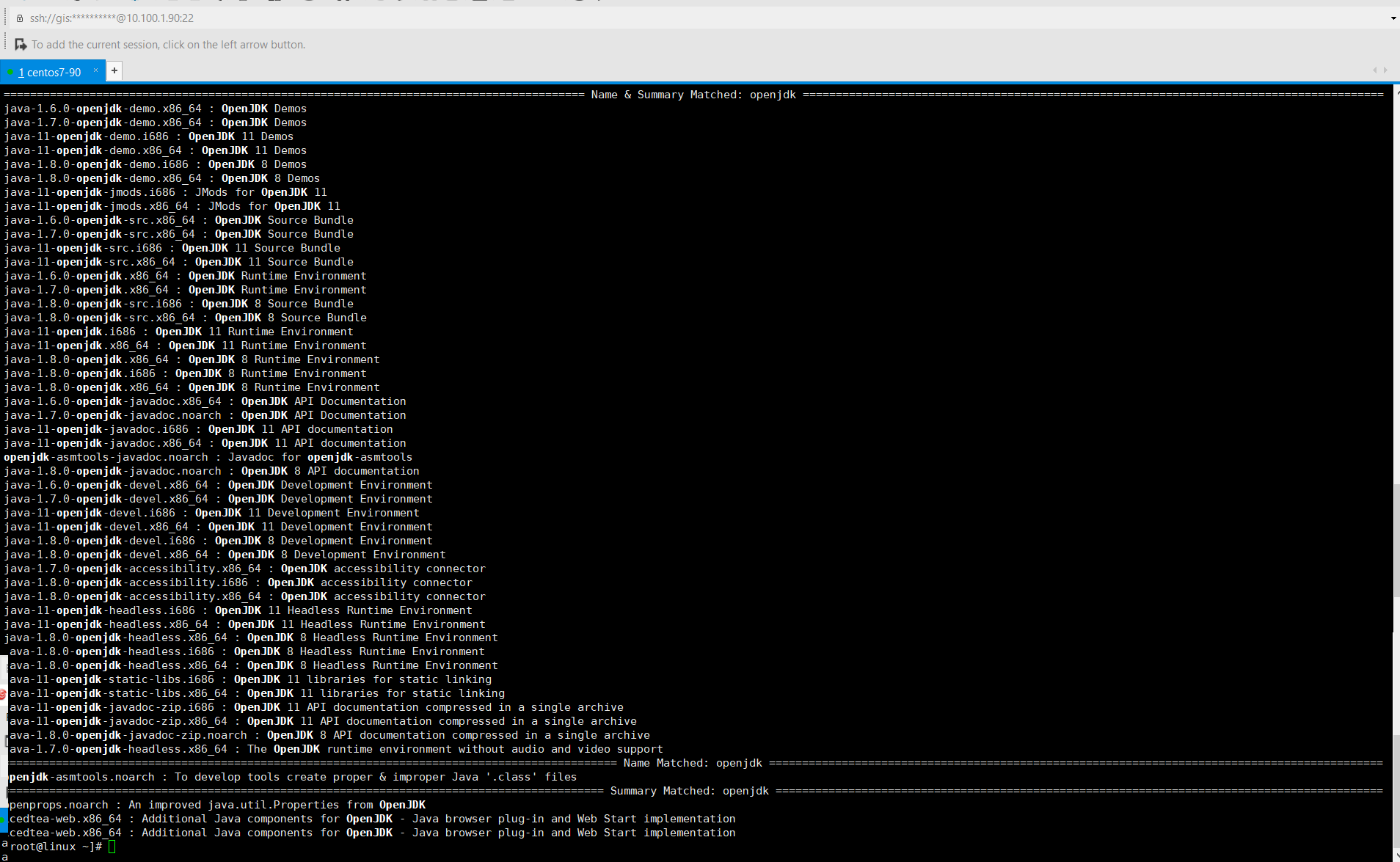

    sudo dnf search openjdk
    • openjdk
      No Java
      Name & Summary Matched: openjdk
      1 java-1.6.0-openjdk-demo.x86_64 : OpenJDK Demos
      2 java-1.7.0-openjdk-demo.x86_64 : OpenJDK Demos
      3 java-11-openjdk-demo.i686 : OpenJDK 11 Demos
      4 java-11-openjdk-demo.x86_64 : OpenJDK 11 Demos
      5 java-1.8.0-openjdk-demo.i686 : OpenJDK 8 Demos
      6 java-1.8.0-openjdk-demo.x86_64 : OpenJDK 8 Demos
      7 java-11-openjdk-jmods.i686 : JMods for OpenJDK 11
      8 java-11-openjdk-jmods.x86_64 : JMods for OpenJDK 11
      9 java-1.6.0-openjdk-src.x86_64 : OpenJDK Source Bundle
      10 java-1.7.0-openjdk-src.x86_64 : OpenJDK Source Bundle
      11 java-11-openjdk-src.i686 : OpenJDK 11 Source Bundle
      12 java-11-openjdk-src.x86_64 : OpenJDK 11 Source Bundle
      13 java-1.6.0-openjdk.x86_64 : OpenJDK Runtime Environment
      14 java-1.7.0-openjdk.x86_64 : OpenJDK Runtime Environment
      15 java-1.8.0-openjdk-src.i686 : OpenJDK 8 Source Bundle
      16 java-1.8.0-openjdk-src.x86_64 : OpenJDK 8 Source Bundle
      17 java-11-openjdk.i686 : OpenJDK 11 Runtime Environment
      18 java-11-openjdk.x86_64 : OpenJDK 11 Runtime Environment
      19 java-1.8.0-openjdk.x86_64 : OpenJDK 8 Runtime Environment
      20 java-1.8.0-openjdk.i686 : OpenJDK 8 Runtime Environment
      21 java-1.8.0-openjdk.x86_64 : OpenJDK 8 Runtime Environment
      22 java-1.6.0-openjdk-javadoc.x86_64 : OpenJDK API Documentation
      23 java-1.7.0-openjdk-javadoc.noarch : OpenJDK API Documentation
      24 java-11-openjdk-javadoc.i686 : OpenJDK 11 API documentation
      25 java-11-openjdk-javadoc.x86_64 : OpenJDK 11 API documentation
      26 openjdk-asmtools-javadoc.noarch : Javadoc for openjdk-asmtools
      27 java-1.8.0-openjdk-javadoc.noarch : OpenJDK 8 API documentation
      28 java-1.6.0-openjdk-devel.x86_64 : OpenJDK Development Environment
      29 java-1.7.0-openjdk-devel.x86_64 : OpenJDK Development Environment
      30 java-11-openjdk-devel.i686 : OpenJDK 11 Development Environment
      31 java-11-openjdk-devel.x86_64 : OpenJDK 11 Development Environment
      32 java-1.8.0-openjdk-devel.i686 : OpenJDK 8 Development Environment
      33 java-1.8.0-openjdk-devel.x86_64 : OpenJDK 8 Development Environment
      34 java-1.7.0-openjdk-accessibility.x86_64 : OpenJDK accessibility connector
      35 java-1.8.0-openjdk-accessibility.i686 : OpenJDK accessibility connector
      36 java-1.8.0-openjdk-accessibility.x86_64 : OpenJDK accessibility connector
      37 java-11-openjdk-headless.i686 : OpenJDK 11 Headless Runtime Environment
      38 java-11-openjdk-headless.x86_64 : OpenJDK 11 Headless Runtime Environment
      39 java-1.8.0-openjdk-headless.x86_64 : OpenJDK 8 Headless Runtime Environment
      40 java-1.8.0-openjdk-headless.i686 : OpenJDK 8 Headless Runtime Environment
      41 java-1.8.0-openjdk-headless.x86_64 : OpenJDK 8 Headless Runtime Environment
      42 java-11-openjdk-static-libs.i686 : OpenJDK 11 libraries for static linking
      43 java-11-openjdk-static-libs.x86_64 : OpenJDK 11 libraries for static linking
      44 java-11-openjdk-javadoc-zip.i686 : OpenJDK 11 API documentation compressed in a single archive
      45 java-11-openjdk-javadoc-zip.x86_64 : OpenJDK 11 API documentation compressed in a single archive
      46 java-1.8.0-openjdk-javadoc-zip.noarch : OpenJDK 8 API documentation compressed in a single archive
      47 java-1.7.0-openjdk-headless.x86_64 : The OpenJDK runtime environment without audio and video support
      Name Matched: openjdk
      1 openjdk-asmtools.noarch : To develop tools create proper & improper Java '.class' files
      Summary Matched: openjdk
      1 openprops.noarch : An improved java.util.Properties from OpenJDK
      2 icedtea-web.x86_64 : Additional Java components for OpenJDK - Java browser plug-in and Web Start implementation
      3 icedtea-web.x86_64 : Additional Java components for OpenJDK - Java browser plug-in and Web Start implementation

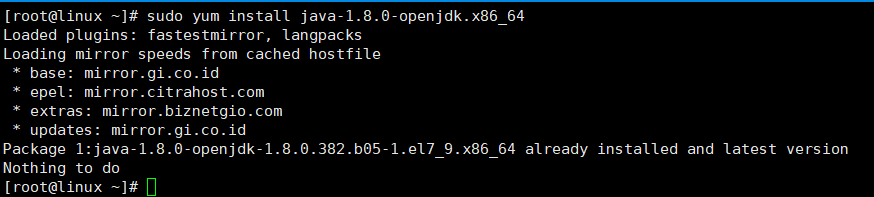

    sudo yum install java-1.8.0-openjdk.x86_64

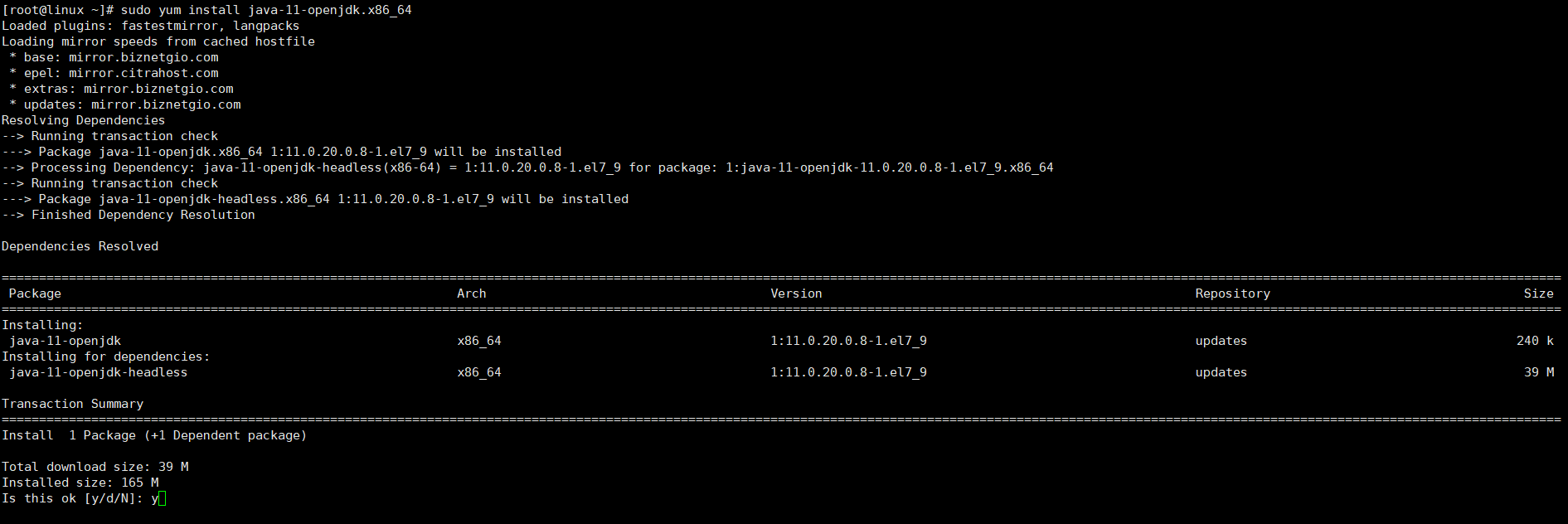

    sudo yum install java-11-openjdk.x86_64


    java -version

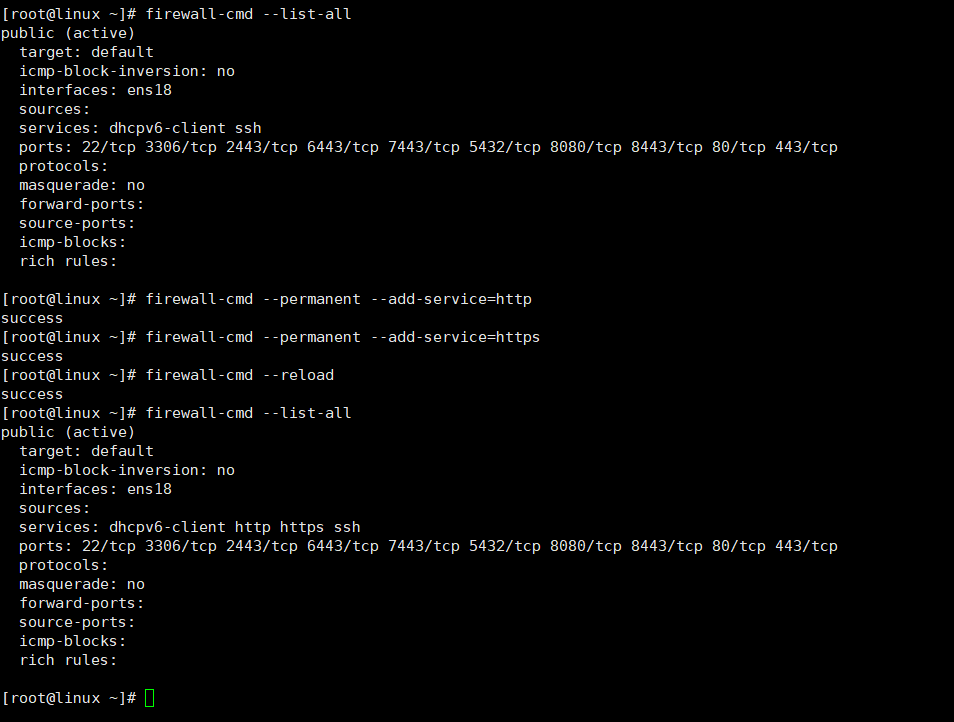

    firewall-cmd --list-all
firewall-cmd --permanent --add-service=http
firewall-cmd --permanent --add-service=https
firewall-cmd --reload


    sudo yum install tomcat
sudo yum install tomcat-webapps tomcat-admin-webapps tomcat-docs-webapp tomcat-javadoc

sudo yum update httpd
sudo yum install httpd

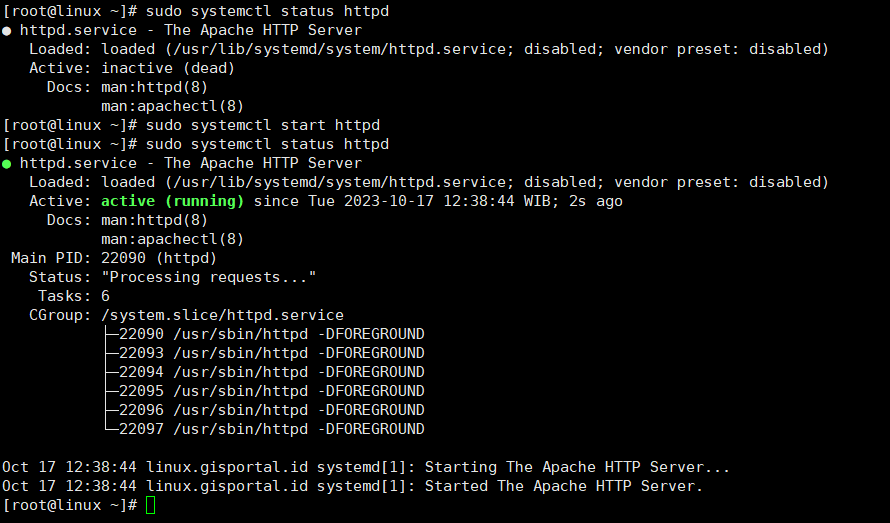

sudo systemctl start httpd
sudo systemctl stop httpd
sudo systemctl start httpd
sudo systemctl status httpd

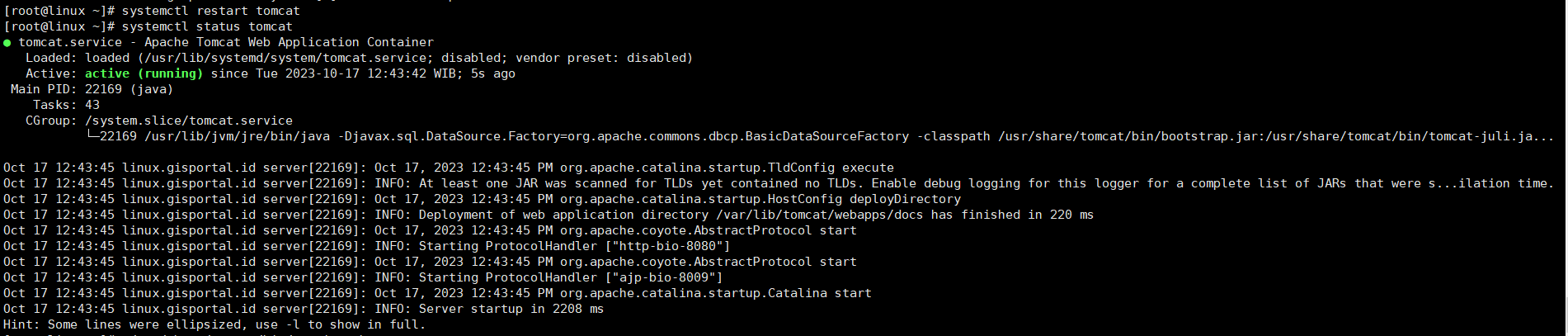

    systemctl restart tomcat
systemctl status tomcat



  • Tomcat User Config
    ll /usr/share/tomcat/conf/

    output

    [root@linux conf]# ll /usr/share/tomcat/conf/
    total 216
    drwxrwxr-x. 3 root tomcat 23 Oct 17 12:37 Catalina
    -rw-r--r--. 1 root tomcat 13443 Nov 16 2020 catalina.policy
    -rw-r--r--. 1 root tomcat 6696 Nov 16 2020 catalina.properties
    drwxr-xr-x. 2 root tomcat 20 Oct 17 12:37 conf.d
    -rw-r--r--. 1 root tomcat 1394 Nov 16 2020 context.xml
    -rw-r--r--. 1 root tomcat 547 Nov 16 2020 log4j.properties
    -rw-r--r--. 1 root tomcat 3288 Nov 16 2020 logging.properties
    -rw-r--r--. 1 root tomcat 6613 Nov 16 2020 server.xml
    -rw-r--r--. 1 root tomcat 1828 Nov 16 2020 tomcat.conf
    -rw-r-----. 1 root tomcat 2570 Oct 17 14:05 tomcat-users.xml
    -rw-r--r--. 1 root tomcat 167655 Nov 16 2020 web.xml
    [root@linux conf]#

    Edit Tomcat User Access

    nano tomcat-users.xml

    <user username="both" password="<must-be-changed>" roles="admin,admin-gui,admin-script,manager,manager-gui,manager-script,manager-jmx,manager-status"/>

    systemctl restart tomcat
    systemctl status tomcat

  • Tomcat change port http & https
    • default port http = 8080
    <Connector port="8080" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />
    • Change port http = 80
    <Connector port="80" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="443" />

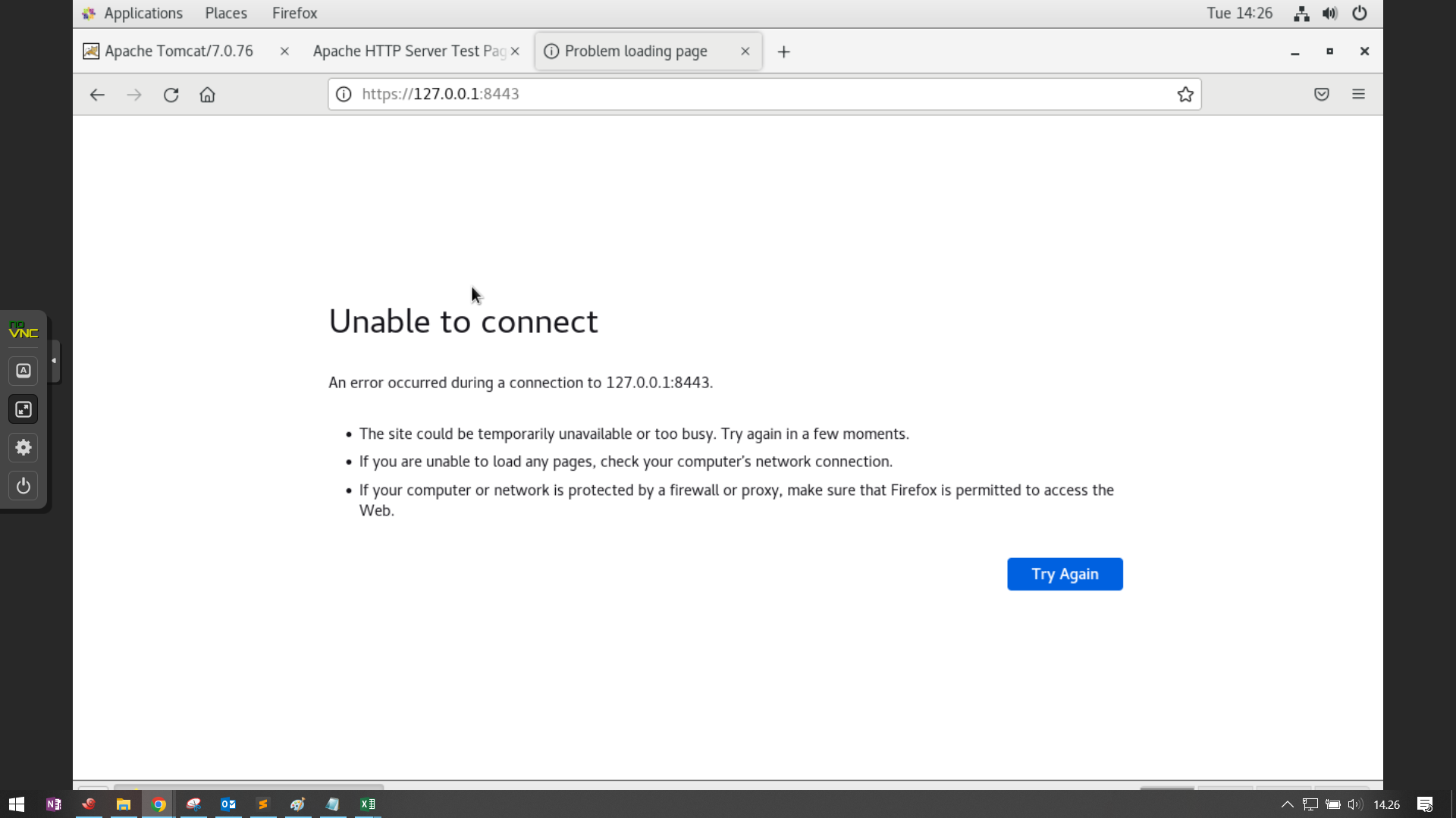

    • default port https = 8443 closed
    <!--
<Connector port="8443" protocol="org.apache.coyote.http11.Http11Protocol"
           maxThreads="150" SSLEnabled="true" scheme="https" secure="true"
           clientAuth="false" sslProtocol="TLS" />
-->

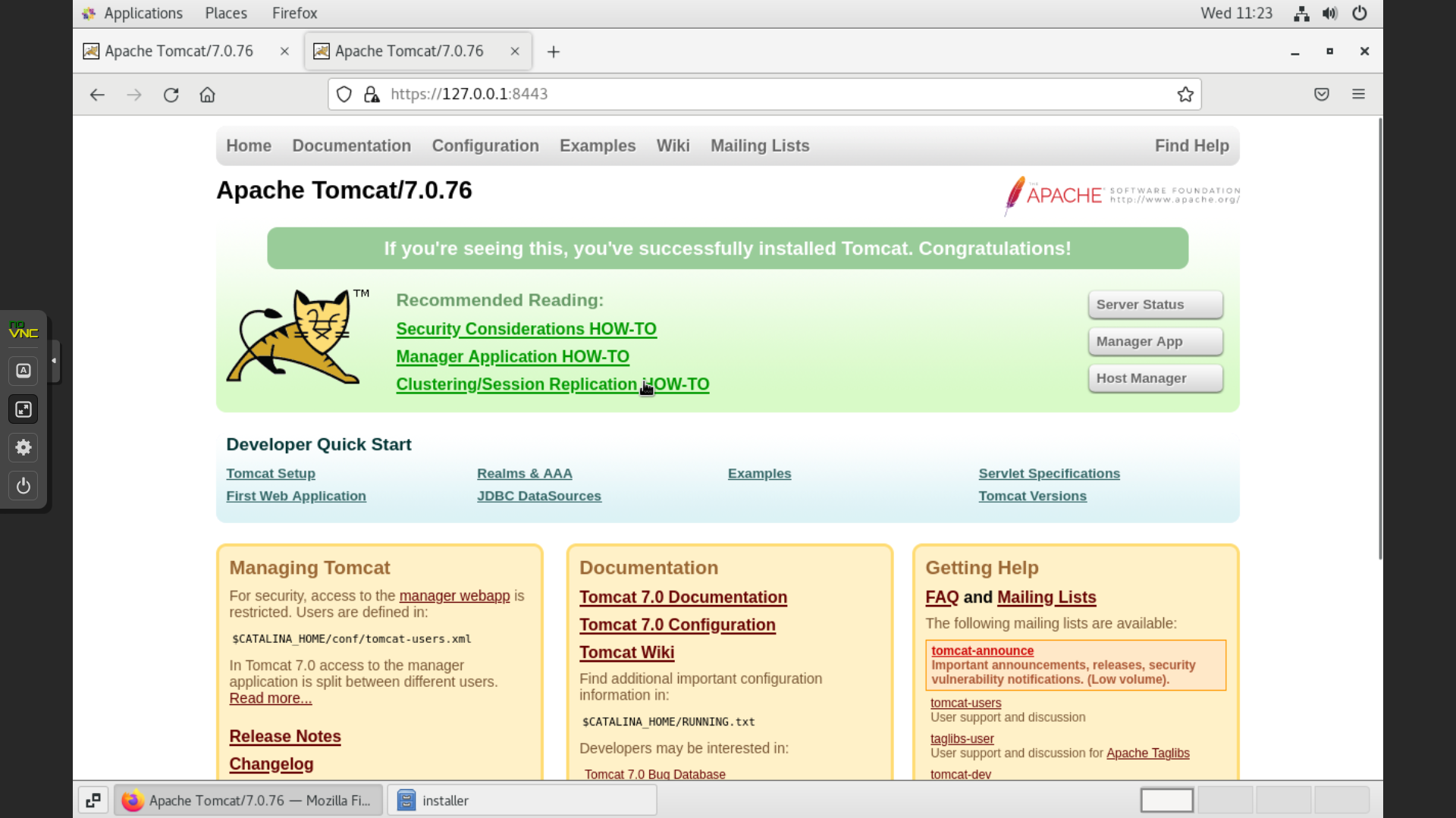

    • Open ange port https = 8443
    <Connector port="8443" protocol="org.apache.coyote.http11.Http11Protocol"
           maxThreads="150" SSLEnabled="true" scheme="https" secure="true"
           clientAuth="false" sslProtocol="TLS"
           keystoreFile="/usr/share/tomcat/ssl/gisportal.id.jks"
           keystorePass="geonet$123"/>

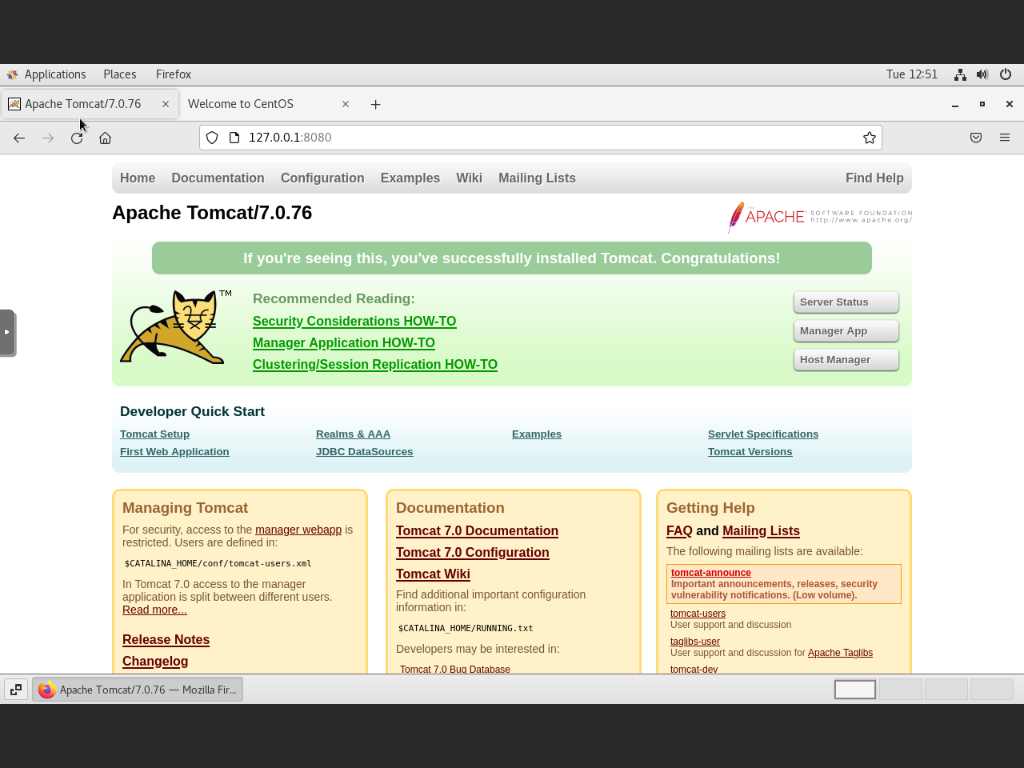

    • Documentation

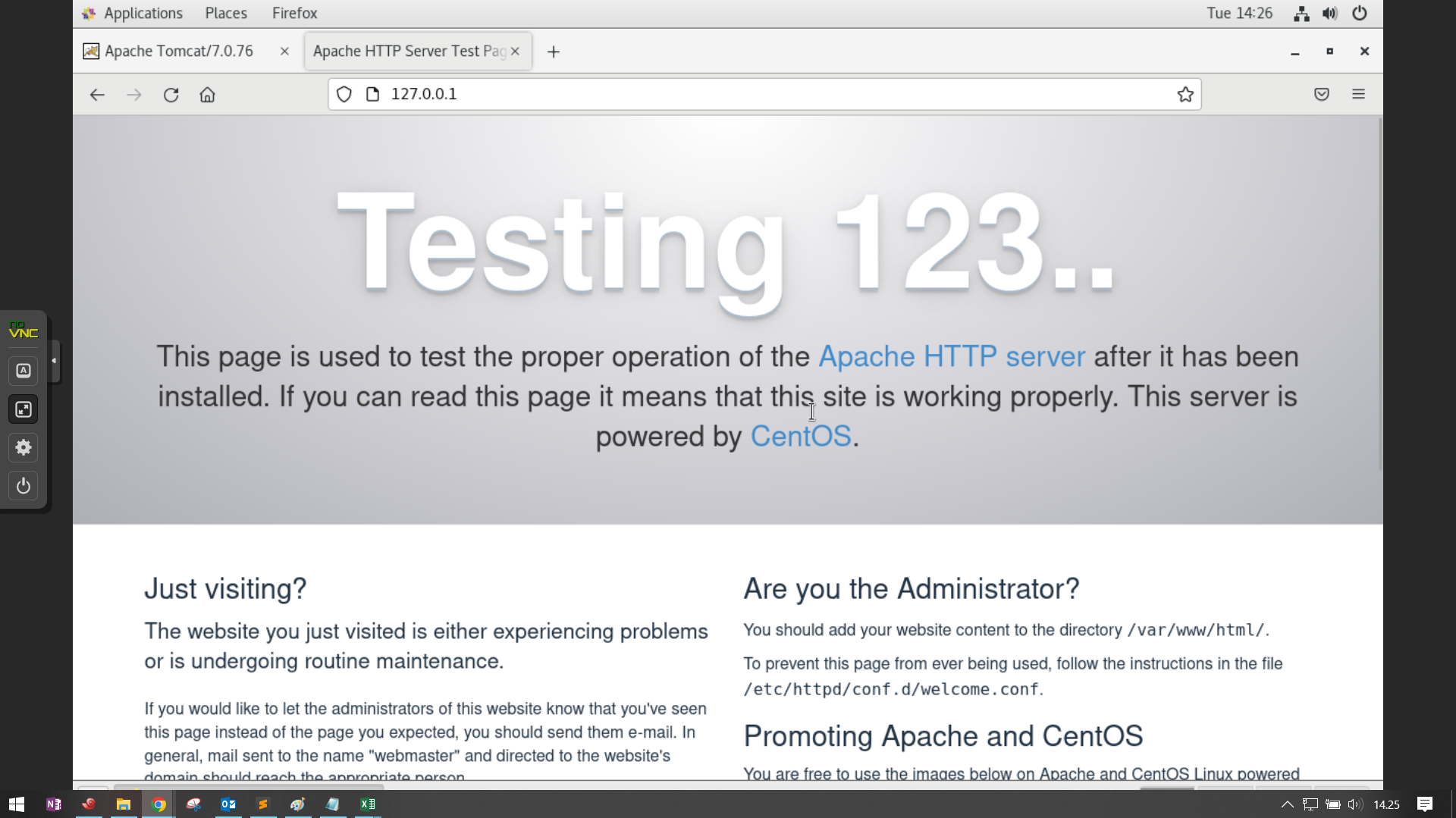

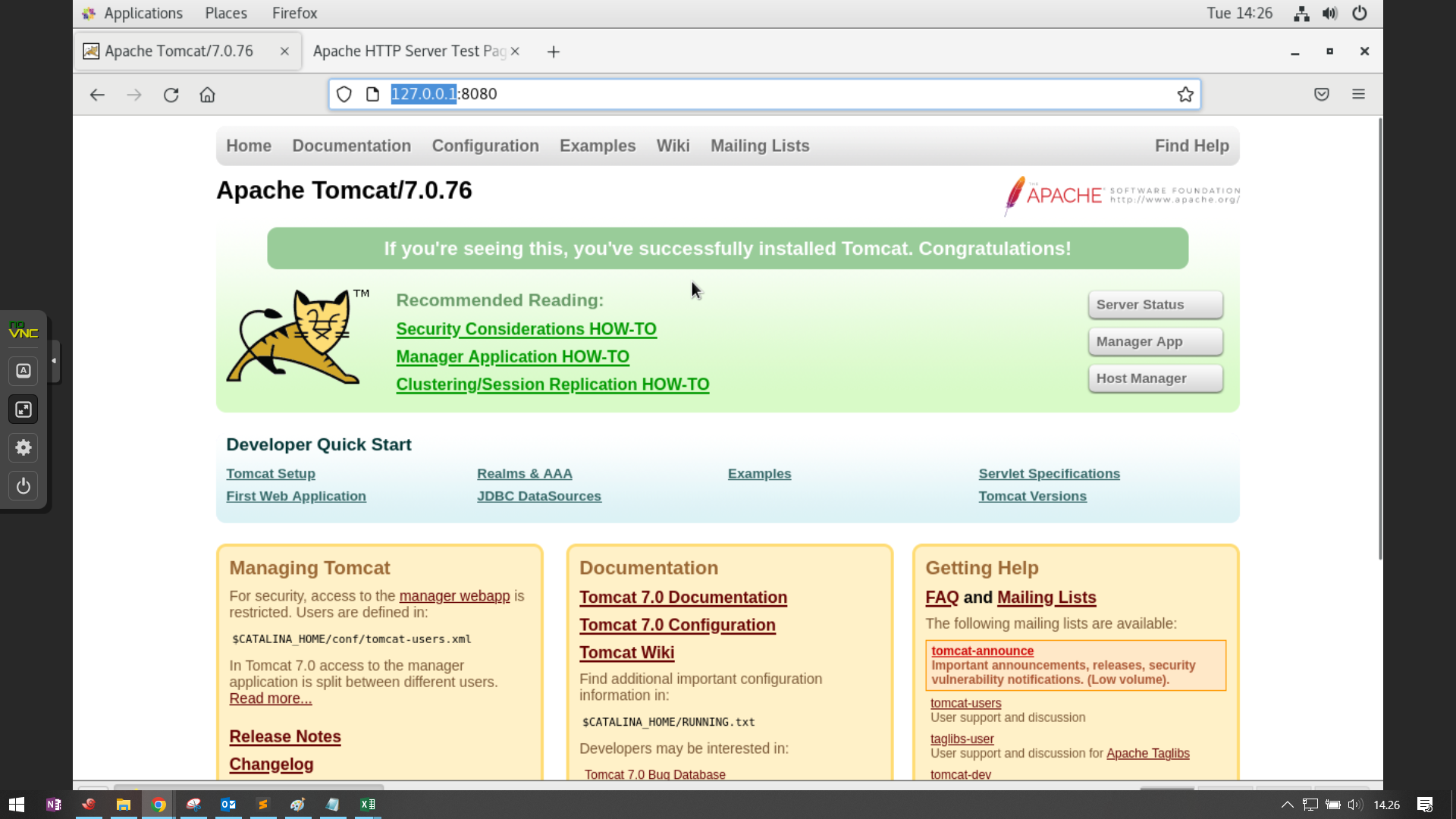

      http 8080 http 80 https 8443 https 443
      image image image
  • Apache http 80 and https 443
    • install module ssl
    yum install mod_ssl
    • restart httpd
    systemctl restart httpd
    • cek Modul yang terkonfigurasi di httpd
    httpd -M
    • Load Module
    nano /etc/httpd/conf.modules.d/00-proxy.conf
    • add module proxy
    LoadModule proxy_module modules/mod_proxy.so
LoadModule proxy_http_module modules/mod_proxy_http.so
LoadModule lbmethod_byrequests_module modules/mod_lbmethod_byrequests.so
LoadModule proxy_balancer_module modules/mod_proxy_balancer.so
    • Verify modlue ready
    apachectl configtest
    • restart httpd
    systemctl restart httpd

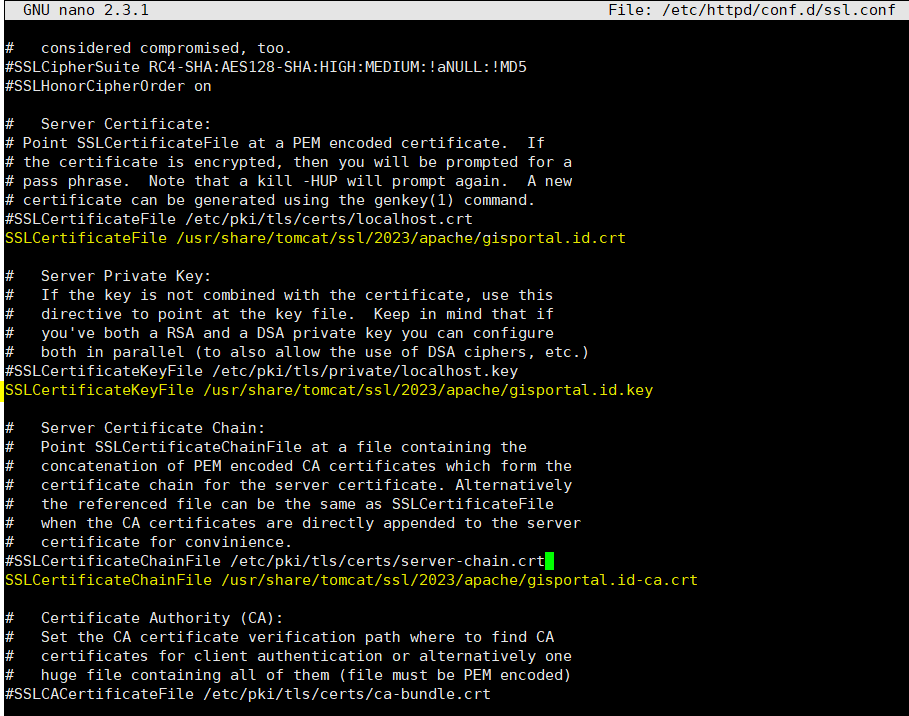

    • edit ssl.conf
    nano /etc/httpd/conf.d/ssl.conf
    • command edit
    <VirtualHost *:443>
    DocumentRoot /var/www/html
    ServerName www.example.com
    SSLEngine on
    SSLCertificateFile /etc/ssl/private/certificate.crt
    SSLCertificateKeyFile /etc/ssl/private/private.key
    SSLCertificateChainFile /etc/ssl/private/certificate-ca.crt
</VirtualHost>


    • restart httpd
    systemctl restart httpd
  • Install ArcGIS Enterprise 10.7.1
    • Get Installer
    • Extrac Installer
    tar xvf file.tar

Refrensi

## ArcGIS Enterprise Version support Centos Distro | Operating system | 10.5.x | 10.6.x | 10.7.x | | --- | --- | --- | --- | | CentOS Linux 6 | 1 | 1 | 1 | | CentOS Linux 7 | 1 | 1 | 1 | | Grand Total | 2 | 2 | 2 | | | | | | ## Linux ArcGIS Enterprise stable version | Operating system | 10.4.x | 10.5.x | 10.6.x | 10.7.x | 10.8.x | 10.9.x | 10.0 | 11.1 | | --- | --- | --- | --- | --- | --- | --- | --- | --- | | SUSE Linux Enterprise Server 11 | 1 | 1 | 1 | | | | | | | SUSE Linux Enterprise Server 12 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | | SUSE Linux Enterprise Server 15 | | | | | | 1 | 1 | 1 | | SUSE Linux Enterprise Server 15 SP1 (supported with 10.8.1 only) | | | | | 1 | | | | - <details> <summary>Support list from 10.4 to 11.1</summary> | Operating system | 10.4.x | 10.5.x | 10.6.x | 10.7.x | 10.8.x | 10.9.x | 10.0 | 11.1 | | --- | --- | --- | --- | --- | --- | --- | --- | --- | | CentOS Linux 6 | | 1 | 1 | | | | | | | CentOS Linux 7 | | 1 | 1 | | | | | | | CentOS Linux 6 | | | | 1 | | | | | | CentOS Linux 7 | | | | 1 | | | | | | Oracle Linux 6 | | 1 | 1 | | | | | | | Oracle Linux 7 | | 1 | 1 | | | | | | | Oracle Linux 6 | | | | 1 | | | | | | Oracle Linux 7 | | | | 1 | | | | | | Oracle Linux 8 | | | | | | | 1 | 1 | | Red Hat Enterprise Linux (RHEL) Server 7 | | | | 1 | | | | | | Red Hat Enterprise Linux Server 5 | 1 | | | | | | | | | Red Hat Enterprise Linux Server 6 | 1 | 1 | 1 | | | | | | | Red Hat Enterprise Linux Server 7 | 1 | 1 | 1 | | | | | | | Red Hat Enterprise Linux Server 6 | | | | 1 | 1 | | | | | Red Hat Enterprise Linux Server 7 | | | | | 1 | 1 | | | | Red Hat Enterprise Linux Server 8 | | | | | | 1 | 1 | 1 | | Red Hat Enterprise Linux Server 8 (supported with 10.8.1 only) | | | | | 1 | | | | | Rocky Linux 8 | | | | | | | | 1 | | Scientific Linux 6 | | 1 | 1 | | | | | | | Scientific Linux 7 | | 1 | 1 | | | | | | | Scientific Linux 6 | | | | 1 | | | | | | Scientific Linux 7 | | | | 1 | | | | | | SUSE Linux Enterprise Server 11 | 1 | 1 | 1 | | | | | | | SUSE Linux Enterprise Server 12 | 1 | 1 | 1 | | | | | | | SUSE Linux Enterprise Server 12 | | | | 1 | 1 | 1 | 1 | 1 | | SUSE Linux Enterprise Server 15 | | | | | | 1 | 1 | 1 | | SUSE Linux Enterprise Server 15 (supported with 10.8.1 only) | | | | | 1 | | | | | Ubuntu Server LTS | | 1 | 1 | | | | | | | Ubuntu Server LTS 16 | | | | 1 | | | | | | Ubuntu Server LTS 18 | | | | 1 | | | | | | Ubuntu Server 16.04 LTS | | | | | 1 | | | | | Ubuntu Server 18.04 LTS | | | | | 1 | 1 | 1 | 1 | | Ubuntu Server 20.04 LTS | | | | | | 1 | 1 | 1 | | Ubuntu Server 20.04 LTS (supported with 10.8.1 only) | | | | | 1 | | | | | Ubuntu Server 22.04 LTS | | | | | | | | 1 | </details> ## Web Server Support ### Tomcat Install | Apache Tomcat Version | 10.4.x | 10.5.x | 10.6.x | 10.7.x | 10.8.x | 10.9.x | 11.0 | 11.1 | | --- | --- | --- | --- | --- | --- | --- | --- | --- | | Apache Tomcat 7.0.65 | 1 | | | | | | | | | Apache Tomcat 7.0.72 | | 1 | | | | | | | | Apache Tomcat 7.0.82 | | | 1 | | | | | | | Apache Tomcat 7.0.92 | | | | 1 | 1 | | | | | Apache Tomcat 8.0.32* | 1 | | | | | | | | | Apache Tomcat 8.0.38 | | 1 | | | | | | | | Apache Tomcat 8.0.47 | | | 1 | | | | | | | Apache Tomcat 8.5.23 | | | 1 | | | | | | | Apache Tomcat 8.5.35 | | | | 1 | 1 | 1 | 1 | 1 | | Apache Tomcat 8.5.6 | | 1 | | | | | | | | Apache Tomcat 9.0.19 | | | | 1 | 1 | 1 | 1 | 1 | | | | | | | | | | | ### Java Compponen | Java Version | 10.4.x | 10.5.x | 10.6.x | 10.7.x | 10.8.x | 10.9.x | 11.0 | 11.1 | | --- | --- | --- | --- | --- | --- | --- | --- | --- | | Java 7 | 1 | | | | | | | | | Java 8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | | Java 11 | | | | 1 | 1 | 1 | 1 | 1 | | Java 12 | | | | 1 | 1 | 1 | 1 | 1 | | Java 15 | | | | | | | | 1 | | | | | | | | | | | - <details> <summary>Open ArcGIS Port</summary> ``` firewall-cmd --list-all firewall-cmd --permanent --add-port=3306/tcp firewall-cmd --permanent --add-port=2443/tcp firewall-cmd --permanent --add-port=6443/tcp firewall-cmd --permanent --add-port=7443/tcp firewall-cmd --permanent --add-port=5432/tcp firewall-cmd --permanent --add-port=8080/tcp firewall-cmd --permanent --add-port=8443/tcp firewall-cmd --permanent --add-port=80/tcp firewall-cmd --permanent --add-port=443/tcp firewall-cmd --reload ``` | default | open port | |---|---| | ![image](/attachments/9422ec68-2ea6-4c91-af5e-66e547ce577b) | ![image](/attachments/d05c2066-f548-42d5-aefb-d3315ad9e7e3) | </details> - <details> <summary>ulimits.conf</summary> ### Update ulimits.conf ``` sudo nano /etc/security/limits.conf ``` ``` root soft nofile 65535 root hard nofile 65535 root soft nproc 25059 root hard nproc 25059 arcgis soft nofile 65535 arcgis hard nofile 65535 arcgis soft nproc 25059 arcgis hard nproc 25059 esri soft nofile 65535 esri hard nofile 65535 esri soft nproc 25059 esri hard nproc 25059 LimitNOFILE=65536 LimitNPROC=25059 LimitAS=infinity LimitFSIZE=infinity ``` ### reboot host ``` reboot ``` ### cek ulimits.conf ``` ulimit -Hn -Sn ulimit -Hu -Su ``` ![image](/attachments/c30aabd6-b1ad-4c87-b222-7c6711a20d32) </details> - <details> <summary>Tomcat</summary> ``` cat /etc/centos-release ``` ![image](/attachments/684f2cad-f3fe-416d-b4c1-5ac6f3234abd) ``` sudo yum install epel-release ``` ![image](/attachments/373f35d6-f332-4180-86fa-ad667b53cf2c) ``` sudo dnf search openjdk ``` - <details> <summary>openjdk</summary> | No | Java | | --- | --- | | | Name & Summary Matched: openjdk | | 1 | java-1.6.0-openjdk-demo.x86_64 : OpenJDK Demos | | 2 | java-1.7.0-openjdk-demo.x86_64 : OpenJDK Demos | | 3 | java-11-openjdk-demo.i686 : OpenJDK 11 Demos | | 4 | java-11-openjdk-demo.x86_64 : OpenJDK 11 Demos | | 5 | java-1.8.0-openjdk-demo.i686 : OpenJDK 8 Demos | | 6 | java-1.8.0-openjdk-demo.x86_64 : OpenJDK 8 Demos | | 7 | java-11-openjdk-jmods.i686 : JMods for OpenJDK 11 | | 8 | java-11-openjdk-jmods.x86_64 : JMods for OpenJDK 11 | | 9 | java-1.6.0-openjdk-src.x86_64 : OpenJDK Source Bundle | | 10 | java-1.7.0-openjdk-src.x86_64 : OpenJDK Source Bundle | | 11 | java-11-openjdk-src.i686 : OpenJDK 11 Source Bundle | | 12 | java-11-openjdk-src.x86_64 : OpenJDK 11 Source Bundle | | 13 | java-1.6.0-openjdk.x86_64 : OpenJDK Runtime Environment | | 14 | java-1.7.0-openjdk.x86_64 : OpenJDK Runtime Environment | | 15 | java-1.8.0-openjdk-src.i686 : OpenJDK 8 Source Bundle | | 16 | java-1.8.0-openjdk-src.x86_64 : OpenJDK 8 Source Bundle | | 17 | java-11-openjdk.i686 : OpenJDK 11 Runtime Environment | | 18 | java-11-openjdk.x86_64 : OpenJDK 11 Runtime Environment | | 19 | java-1.8.0-openjdk.x86_64 : OpenJDK 8 Runtime Environment | | 20 | java-1.8.0-openjdk.i686 : OpenJDK 8 Runtime Environment | | 21 | java-1.8.0-openjdk.x86_64 : OpenJDK 8 Runtime Environment | | 22 | java-1.6.0-openjdk-javadoc.x86_64 : OpenJDK API Documentation | | 23 | java-1.7.0-openjdk-javadoc.noarch : OpenJDK API Documentation | | 24 | java-11-openjdk-javadoc.i686 : OpenJDK 11 API documentation | | 25 | java-11-openjdk-javadoc.x86_64 : OpenJDK 11 API documentation | | 26 | openjdk-asmtools-javadoc.noarch : Javadoc for openjdk-asmtools | | 27 | java-1.8.0-openjdk-javadoc.noarch : OpenJDK 8 API documentation | | 28 | java-1.6.0-openjdk-devel.x86_64 : OpenJDK Development Environment | | 29 | java-1.7.0-openjdk-devel.x86_64 : OpenJDK Development Environment | | 30 | java-11-openjdk-devel.i686 : OpenJDK 11 Development Environment | | 31 | java-11-openjdk-devel.x86_64 : OpenJDK 11 Development Environment | | 32 | java-1.8.0-openjdk-devel.i686 : OpenJDK 8 Development Environment | | 33 | java-1.8.0-openjdk-devel.x86_64 : OpenJDK 8 Development Environment | | 34 | java-1.7.0-openjdk-accessibility.x86_64 : OpenJDK accessibility connector | | 35 | java-1.8.0-openjdk-accessibility.i686 : OpenJDK accessibility connector | | 36 | java-1.8.0-openjdk-accessibility.x86_64 : OpenJDK accessibility connector | | 37 | java-11-openjdk-headless.i686 : OpenJDK 11 Headless Runtime Environment | | 38 | java-11-openjdk-headless.x86_64 : OpenJDK 11 Headless Runtime Environment | | 39 | java-1.8.0-openjdk-headless.x86_64 : OpenJDK 8 Headless Runtime Environment | | 40 | java-1.8.0-openjdk-headless.i686 : OpenJDK 8 Headless Runtime Environment | | 41 | java-1.8.0-openjdk-headless.x86_64 : OpenJDK 8 Headless Runtime Environment | | 42 | java-11-openjdk-static-libs.i686 : OpenJDK 11 libraries for static linking | | 43 | java-11-openjdk-static-libs.x86_64 : OpenJDK 11 libraries for static linking | | 44 | java-11-openjdk-javadoc-zip.i686 : OpenJDK 11 API documentation compressed in a single archive | | 45 | java-11-openjdk-javadoc-zip.x86_64 : OpenJDK 11 API documentation compressed in a single archive | | 46 | java-1.8.0-openjdk-javadoc-zip.noarch : OpenJDK 8 API documentation compressed in a single archive | | 47 | java-1.7.0-openjdk-headless.x86_64 : The OpenJDK runtime environment without audio and video support | | | | | | Name Matched: openjdk | | 1 | openjdk-asmtools.noarch : To develop tools create proper & improper Java '.class' files | | | | | | Summary Matched: openjdk | | 1 | openprops.noarch : An improved java.util.Properties from OpenJDK | | 2 | icedtea-web.x86_64 : Additional Java components for OpenJDK - Java browser plug-in and Web Start implementation | | 3 | icedtea-web.x86_64 : Additional Java components for OpenJDK - Java browser plug-in and Web Start implementation | </details> ![image](/attachments/4a3e622e-9951-4954-8996-0f4addeced68) ``` sudo yum install java-1.8.0-openjdk.x86_64 ``` ![image](/attachments/204b4532-acf5-49e4-9fc1-fce2c8dda3fc) ``` sudo yum install java-11-openjdk.x86_64 ``` ![image](/attachments/54e5ae55-0e56-4079-adb5-07c3981ef43d) java -version ![image](/attachments/6bb7e059-27e5-45c4-a9fc-9dfecb20f5eb) ``` firewall-cmd --list-all firewall-cmd --permanent --add-service=http firewall-cmd --permanent --add-service=https firewall-cmd --reload ``` ![image](/attachments/1193f4eb-8f3b-4066-be50-a8df97df0918) ``` sudo yum install tomcat sudo yum install tomcat-webapps tomcat-admin-webapps tomcat-docs-webapp tomcat-javadoc sudo yum update httpd sudo yum install httpd sudo systemctl start httpd sudo systemctl stop httpd sudo systemctl start httpd sudo systemctl status httpd ``` ![image](/attachments/8dae5240-4acc-42bf-82d2-f26b079b5018) ``` systemctl restart tomcat systemctl status tomcat ``` ![image](/attachments/0e497701-eb51-4f42-89ac-13ec5d9f91c9) ![image](/attachments/27efc55a-e9f8-4a68-b828-2287a7539e9e) </details> - <details> <summary>Tomcat User Config</summary> ``` ll /usr/share/tomcat/conf/ ``` output [root@linux conf]# ll /usr/share/tomcat/conf/ total 216 drwxrwxr-x. 3 root tomcat 23 Oct 17 12:37 Catalina -rw-r--r--. 1 root tomcat 13443 Nov 16 2020 catalina.policy -rw-r--r--. 1 root tomcat 6696 Nov 16 2020 catalina.properties drwxr-xr-x. 2 root tomcat 20 Oct 17 12:37 conf.d -rw-r--r--. 1 root tomcat 1394 Nov 16 2020 context.xml -rw-r--r--. 1 root tomcat 547 Nov 16 2020 log4j.properties -rw-r--r--. 1 root tomcat 3288 Nov 16 2020 logging.properties -rw-r--r--. 1 root tomcat 6613 Nov 16 2020 server.xml -rw-r--r--. 1 root tomcat 1828 Nov 16 2020 tomcat.conf -rw-r-----. 1 root tomcat 2570 Oct 17 14:05 tomcat-users.xml -rw-r--r--. 1 root tomcat 167655 Nov 16 2020 web.xml [root@linux conf]# ### Edit Tomcat User Access ``` nano tomcat-users.xml ``` ``` <user username="both" password="<must-be-changed>" roles="admin,admin-gui,admin-script,manager,manager-gui,manager-script,manager-jmx,manager-status"/> ``` systemctl restart tomcat systemctl status tomcat </details> - <details> <summary>Tomcat change port http & https</summary> - default port http = 8080 ``` <Connector port="8080" protocol="HTTP/1.1" connectionTimeout="20000" redirectPort="8443" /> ``` - Change port http = 80 ``` <Connector port="80" protocol="HTTP/1.1" connectionTimeout="20000" redirectPort="443" /> ``` - default port https = 8443 closed ``` <!-- <Connector port="8443" protocol="org.apache.coyote.http11.Http11Protocol" maxThreads="150" SSLEnabled="true" scheme="https" secure="true" clientAuth="false" sslProtocol="TLS" /> --> ``` - Open ange port https = 8443 ``` <Connector port="8443" protocol="org.apache.coyote.http11.Http11Protocol" maxThreads="150" SSLEnabled="true" scheme="https" secure="true" clientAuth="false" sslProtocol="TLS" keystoreFile="/usr/share/tomcat/ssl/gisportal.id.jks" keystorePass="geonet$123"/> ``` - Documentation |http 8080 | http 80 | https 8443 | https 443 | |--- |--- |--- |--- | | ![image](/attachments/5674dda7-1524-4147-8719-7da0208e2d5c) | ![image](/attachments/60e3b5ad-6bb9-4f79-9667-7c5d3da06f0f) | ![image](/attachments/f9657129-770d-415c-9f15-68d78c0447bc)<br>![image](/attachments/54dcd719-4216-419b-a764-8405e0facdc9) | | </details> - <details> <summary>Apache http 80 and https 443</summary> - install module ssl ``` yum install mod_ssl ``` - restart httpd ``` systemctl restart httpd ``` - cek Modul yang terkonfigurasi di httpd ``` httpd -M ``` - Load Module ``` nano /etc/httpd/conf.modules.d/00-proxy.conf ``` - add module proxy ``` LoadModule proxy_module modules/mod_proxy.so LoadModule proxy_http_module modules/mod_proxy_http.so LoadModule lbmethod_byrequests_module modules/mod_lbmethod_byrequests.so LoadModule proxy_balancer_module modules/mod_proxy_balancer.so ``` - Verify modlue ready ``` apachectl configtest ``` - restart httpd ``` systemctl restart httpd ``` - edit ssl.conf ``` nano /etc/httpd/conf.d/ssl.conf ``` - command edit ``` <VirtualHost *:443> DocumentRoot /var/www/html ServerName www.example.com SSLEngine on SSLCertificateFile /etc/ssl/private/certificate.crt SSLCertificateKeyFile /etc/ssl/private/private.key SSLCertificateChainFile /etc/ssl/private/certificate-ca.crt </VirtualHost> ``` ![image](/attachments/7994aba8-24ae-407a-a60b-5f80e526f69b) - restart httpd ``` systemctl restart httpd ``` </details> - <details> <summary>Install ArcGIS Enterprise 10.7.1</summary> - Get Installer - Extrac Installer ``` tar xvf file.tar ``` </details> # Refrensi - [enterprise.arcgis.com](https://enterprise.arcgis.com/en/system-requirements/10.4/linux/portal-for-arcgis-system-requirements.htm): Portal for ArcGIS 10.4.x system requirements - [enterprise.arcgis.com](https://enterprise.arcgis.com/en/system-requirements/10.5/linux/portal-for-arcgis-system-requirements.htm): Portal for ArcGIS 10.5.x system requirements - [enterprise.arcgis.com](https://enterprise.arcgis.com/en/system-requirements/10.6/linux/arcgis-enterprise-builder-system-req.htm): Portal for ArcGIS 10.6.x system requirements - [enterprise.arcgis.com](https://enterprise.arcgis.com/en/system-requirements/10.7/linux/arcgis-server-system-requirements.htm): Portal for ArcGIS 10.7.x system requirements - [enterprise.arcgis.com](https://enterprise.arcgis.com/en/system-requirements/10.8/linux/arcgis-server-system-requirements.htm): Portal for ArcGIS 10.8.x system requirements - [www.geeksforgeeks.org](https://www.geeksforgeeks.org/tar-command-linux-examples/) : tar command in Linux with examples - [linuxhint.com](https://linuxhint.com/tar-cvf-and-tar-xvf-example-commands-in-linux/) : How to Use Tar CVF and Tar XVF in Linux Explained with Example Commands - [git.gisportal.id](http://git.gisportal.id/rbsetiawan/GUIDE/issues/27): Apache Tomcat 8443 to 443
19 KiB
188 KiB
21 KiB
59 KiB
555 KiB
91 KiB
54 KiB
235 KiB
10 KiB
74 KiB
12 KiB
10 KiB
3.9 KiB
21 KiB
668 KiB
512 KiB
225 KiB
rbsetiawan changed title from Centos to Centos 7 - ArcGIS Enterprise Preparation 3 years ago
rbsetiawan added the
ArcGIS Enterprise
 label 3 years ago
rbsetiawan self-assigned this 3 years ago
Sign in to join this conversation.
No Branch/Tag Specified
Branches Tags
master
Labels
Apply labels
Clear labels
ArcGIS Desktop ArcGIS Enterprise ArcGIS Monitor ArcGIS Notebook Server ArcGIS Online ArcGIS Pro Bugs CarryMap Builder data store Error geoanalytics geoevent imageserver Issue Portal rasteranalytics RND server Solvent SQL Server
database Workflow manager server
No Label ArcGIS Desktop ArcGIS Enterprise ArcGIS Monitor ArcGIS Notebook Server ArcGIS Online ArcGIS Pro Bugs CarryMap Builder data store Error geoanalytics geoevent imageserver Issue Portal rasteranalytics RND server Solvent SQL Server Workflow manager server
Milestone
Set milestone
Clear milestone
No items
No Milestone
Projects
Clear projects
No project
Assignees
Assign users
Clear assignees
No Assignees
rbsetiawan
1 Participants
Notifications
Due Date

No due date set.

Dependencies

This issue currently doesn't have any dependencies.

Write Preview
Loading…
Cancel
Save
There is no content yet.
Delete Branch '%!s(MISSING)'

Deleting a branch is permanent. It CANNOT be undone. Continue?

No
Yes
