ArcGIS Online Monitoring on ArcGIS Enterprise #100

Open

opened 3 years ago by rbsetiawan · 0 comments

rbsetiawan commented 3 years ago

Owner

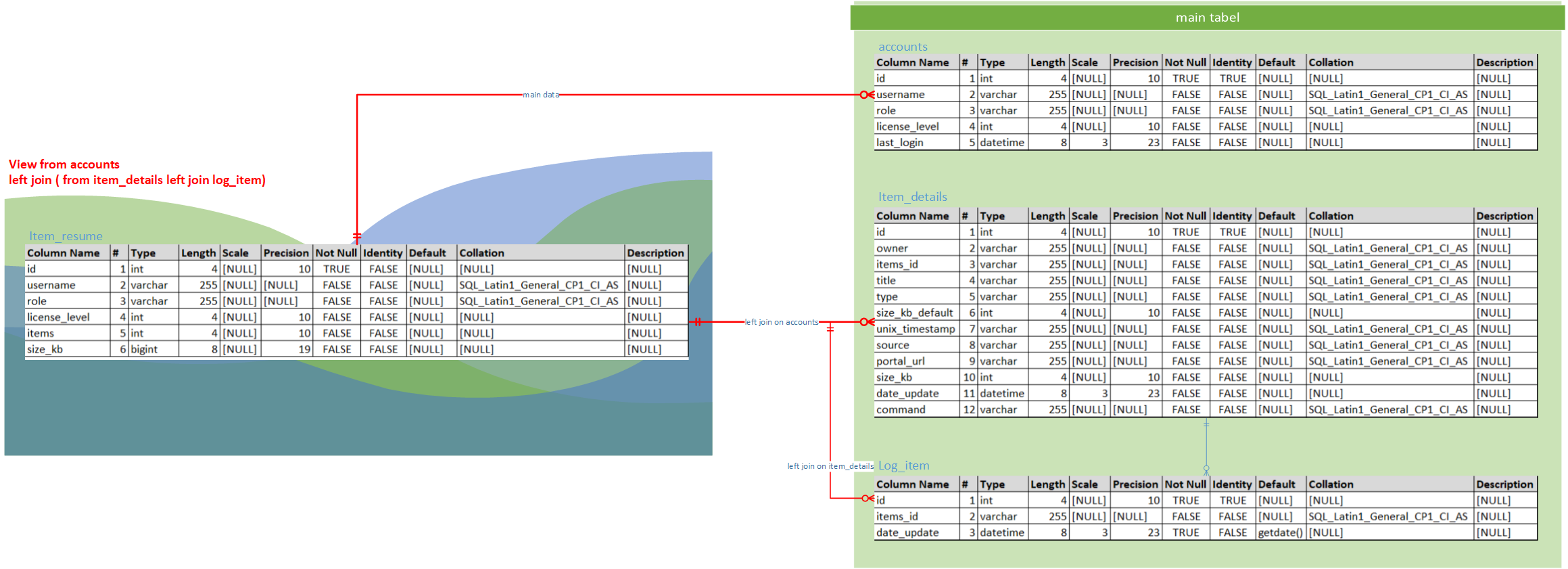

diagram

Description

• database platform : SQL Server 2017

  • url : database.gisportal.id
  • owner : arcgis
  • Database name: db_argol

• tabel :

  • accounts

    • create table

    CREATE TABLE accounts (
        id int IDENTITY(1,1) PRIMARY KEY,
        uername varchar(255),
        role varchar(255),
        license_level varchar(255),
        last_login DATETIME
    );



    • insert into:


    INSERT INTO [dbo].[accounts]
    ([uername]
    ,[role]
    ,[license_level]
    ,[last_login])
    VALUES
    ('ataufik','org_admin',2,'2023-08-02'),
    ('geonetinfo02','Contribution Edit',2,'2023-08-02'),
    ('jfirdaus','Organizer and Publisher',2,'2023-08-02'),
    ('vidya_aa','Organizer and Publisher',2,'2023-07-31'),
    ('geonetinfo01','Data Editor',2,'2023-07-31'),
    ('geonetinfo03','Organizer and Publisher',2,'2023-07-25'),
    ('dpradana','org_admin',2,'2023-06-21'),
    ('trachman_geonetinfo7','Organizer and Publisher',2,'2023-05-29'),
    ('rbsetiawan','Viewer',2,'2023-03-01'),
    ('geonetusr01','Viewer',11,'2023-02-08'),
    ('iaditya_geonetinfo','org_admin',2,'2023-02-08'),
    ('geonetusr02','Viewer',11,'2023-02-03'),
    ('rizqamaulana08','Contribution Edit',2,'2023-01-26'),
    ('mfajri24','org_publisher',2,'2023-01-24'),
    ('geonetusr03','org_admin',2,'2023-01-24'),
    ('Bappedalitbang','org_admin',2,'2023-01-10'),
    ('umargeonet','org_publisher',2,'2022-09-01'),
    ('khairuddin_ctf','org_admin',2,'2022-04-14'),
    ('demostm8','STM Viewer',2,'2022-03-31'),
    ('lhakim24','org_admin',2,'2021-08-12')


    • alter or change column data type

    ALTER TABLE accounts
    ALTER COLUMN license_level int;


    • alter or change column name

    sp_rename 'accounts.uername', 'username', 'COLUMN';


  • item_details

    • create table

    CREATE TABLE item_details (
        id int IDENTITY(1,1) PRIMARY KEY,
        owner varchar(255) ,
        items_id varchar(255) ,
        title varchar(255) ,
        type varchar(255) ,
        size_kb_default int,
        unix_timestamp varchar(255) ,
        source varchar(255) ,
        portal_url varchar(255) ,
        size_kb int,
        date_update DATETIME,
        command varchar(255)
    );


    • insert into

        INSERT INTO [dbo].[item_details] ([owner] ,[items_id] ,[title] ,[type] ,[size_kb_default] ,[unix_timestamp] ,[source] ,[portal_url] ,[size_kb] ,[date_update] ,[command]) VALUES


        ('ataufik','dd548454b1a8430f8b64d2d888312346','Survey Musrenbang Tahun Anggaran 2018 Bappeda Kabupaten Bogor','Web Mapping Application',460504,'1521687107','https://giskabbogor.maps.arcgis.com/apps/Cascade/index.html?appid=dd548454b1a8430f8b64d2d888312346','https://geonetinfo.maps.arcgis.com/home/item.html?id=dd548454b1a8430f8b64d2d888312346',449711,'2018-03-22',''),
        ('ataufik','ffbf04228c6e47bfa6f98dd262741db7','Anchor Pattern Navigation','Web Map',12350,'1578988633','None','https://geonetinfo.maps.arcgis.com/home/item.html?id=ffbf04228c6e47bfa6f98dd262741db7',12061,'2020-01-14',''),
        ('ataufik','75ac694405e742bfa09007dadf367f9d','aaa','Web Mapping Application',2974,'1657096352','https://geonetinfo.maps.arcgis.com/apps/webappviewer/index.html?id=75ac694405e742bfa09007dadf367f9d','https://geonetinfo.maps.arcgis.com/home/item.html?id=75ac694405e742bfa09007dadf367f9d',2904,'2022-07-06',''),
        ('ataufik','9193f8cbf0d042ad812406f1669bc08b','Map Image For FieldMap by fajri','Web Map',1453,'1654576582','None','https://geonetinfo.maps.arcgis.com/home/item.html?id=9193f8cbf0d042ad812406f1669bc08b',1419,'2023-09-25','delete'),
        ('ataufik','e1b12dc6b0b4475bbaf7ecc9f0312187','WebMapWGS84','Web Map',17671,'1658194485','None','https://geonetinfo.maps.arcgis.com/home/item.html?id=e1b12dc6b0b4475bbaf7ecc9f0312187',17257,'2022-07-19',''),


    </details>




  • log item

    • create table

    CREATE TABLE log_item (
        id int IDENTITY(1,1) PRIMARY KEY,
        items_id varchar(255) ,
        date_update DATETIME
    );


    • insert into log item

    insert into log_item (items_id) values
    ('1241c78657d04c0f83a98a7671d42ee3'),
    ('f872ae5880274c30b040ec8a88021462'),
    ('c54aabeedf9f4401a6afdd5cd79aa97b'),
    ('f877b4932775483dbf9572ee36eb85e7'),
    ('b4fd7bb853fa40408ee183fd5744088f'),
    ('86082fcca42a4f86a159f38adc4739a7'),
    ('01aa8320920c4c7c906e193c09d5a1ab'),
    ('b509c98a407c42ee8213db49d53c6855'),
    ('8a16272c9b6e45a4968c7196a80ae4f6'),
    ('065779b778b048ec9ecf14325a366eec')


  • view item resume

    • create view

    create view item_resume as
    select username, role, license_level,
    case
        when dty.items is null then 0
        else dty.items
    end items,

    case
        when dty.size_kb is null then 0
        else dty.size_kb
    end size_kb
    from accounts dtx
    left join
    ( select
        owner,
        count(size) as items,
        sum(cast(size as bigint)) as size_kb

        from
        (select owner, items_id,
        case
        when compare_items is null then null
        else size_kb
        end as size
        --compare_items,
        --size_kb

        from
            (select a.owner
            ,a.items_id
            ,b.items_id as compare_items
            --,count(cast(a.size_kb as bigint)) as items
            --,sum(cast(a.size_kb as bigint)) as size_kb
            ,a.size_kb
            from item_details a
            left join log_item b on a.items_id = b.items_id
            --left join accounts c on a.owner = c.username
            ) dta ) dtb

            group by owner ) dty on dtx.username = dty.owner




  • view item_details_current_v

    • create view


    create view item_details_current_v as
    select
    id.id,
    id.owner,
    id.items_id,
    id.title,
    id.type,
    id.size_kb_default,
    id.unix_timestamp,
    id.source,
    id.portal_url,
    id.size_kb,
    id.date_update,
    id.command
    from item_details id inner join
    (select * from log_item li2 where format(date_update,'yyyy-MM-dd') = (select max(date_update) from (select format(date_update,'yyyy-MM-dd') as date_update from log_item li group by format(date_update,'yyyy-MM-dd') ) li0)) li1
    on id.items_id = li1.items_id





     </details>




  • view item

    • create view


     </details>





• Feature Service

  • Portal for ArcGIS Items :
    https://development.gisportal.id/portal/home/item.html?id=d86791bfd19142cb885d0ee1bf121527#overview

  • ArcGIS Server Service :
    https://development.gisportal.id/server/rest/services/Umar/Test_Mas_Rian/FeatureServer

• create Feature Service

  • ArcGIS Pro

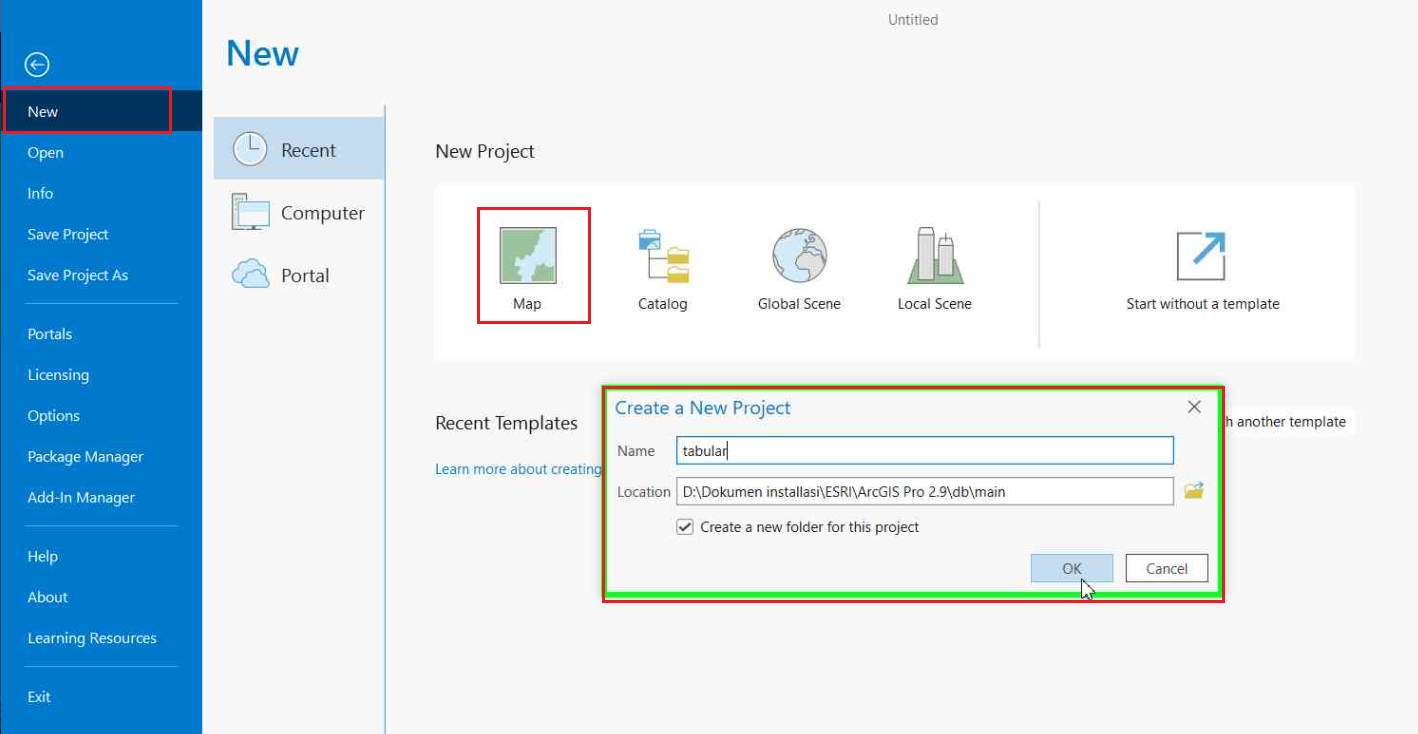

    • Open ArcGIS Pro
    • Connecto to Portal for ArcGIS
    • add new map

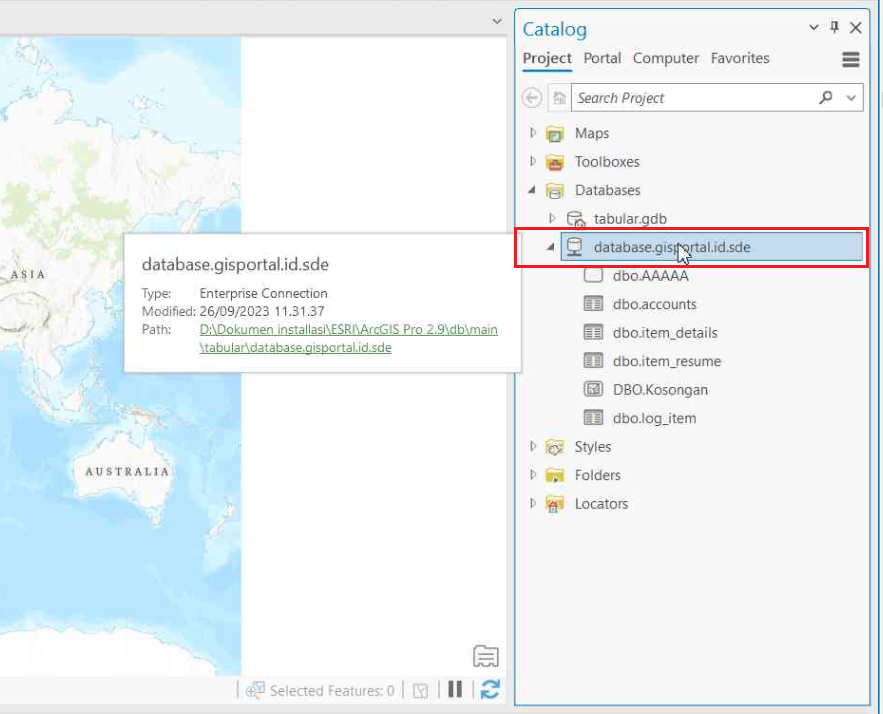

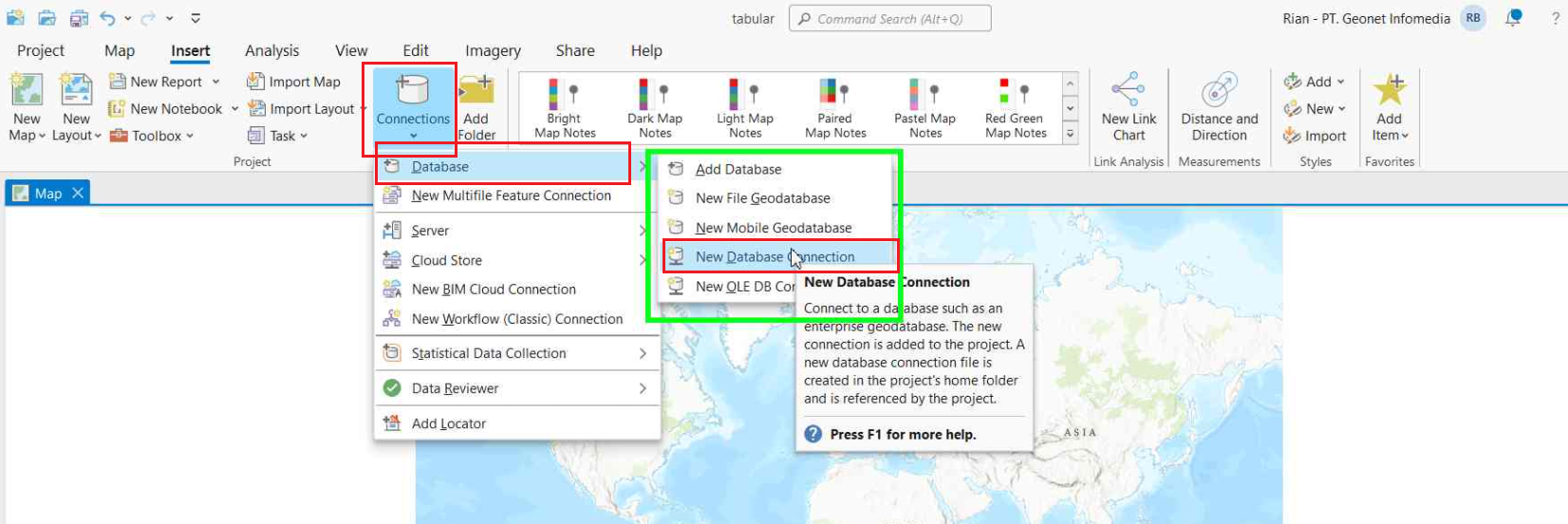

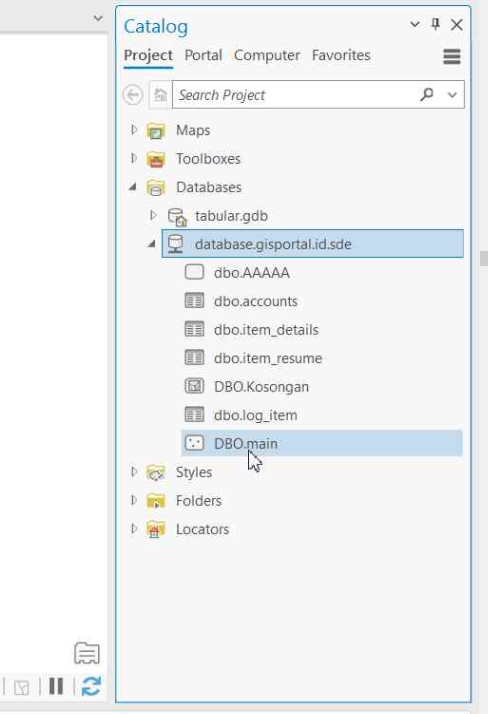

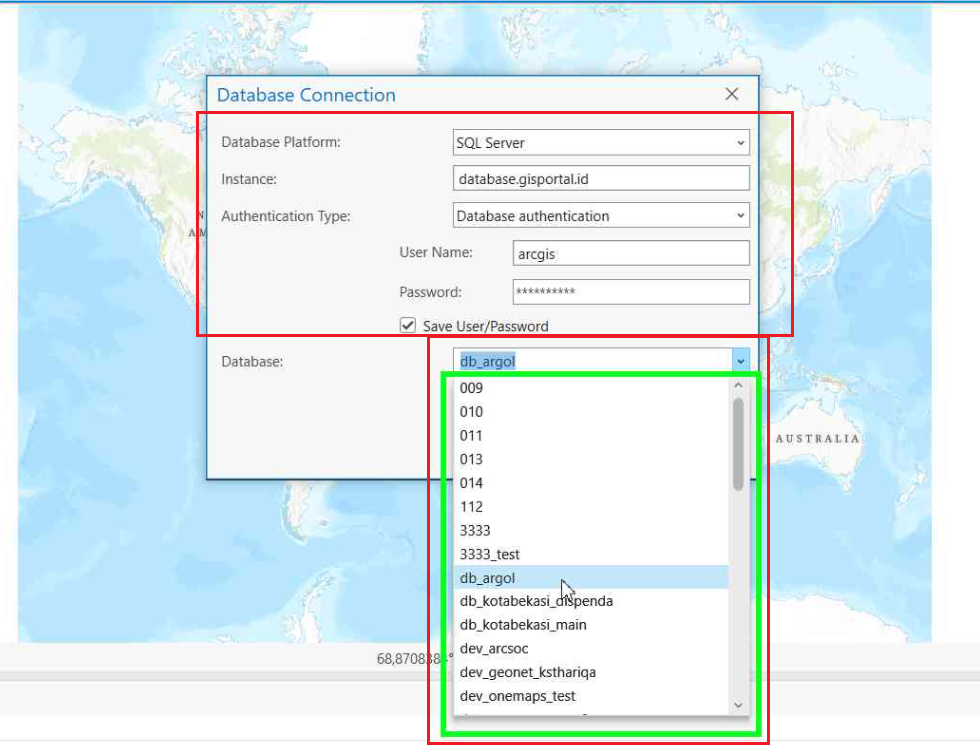

    • add database connection


    • Expand database connection

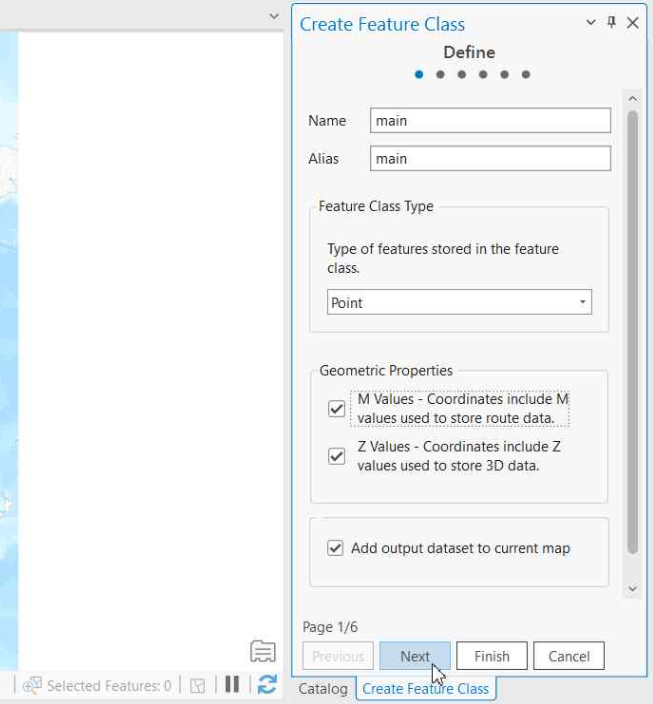

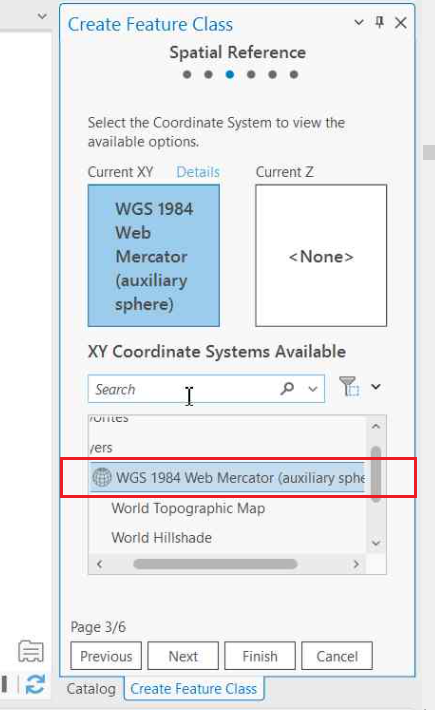

  • add balnk feature include coordinate

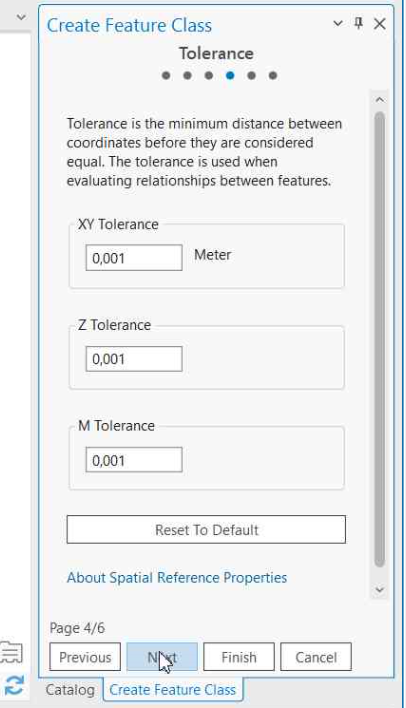

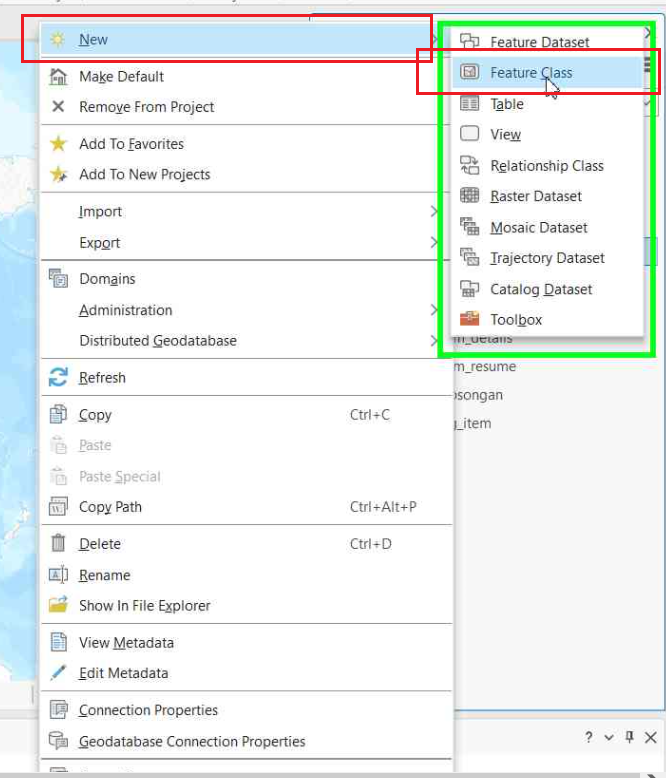

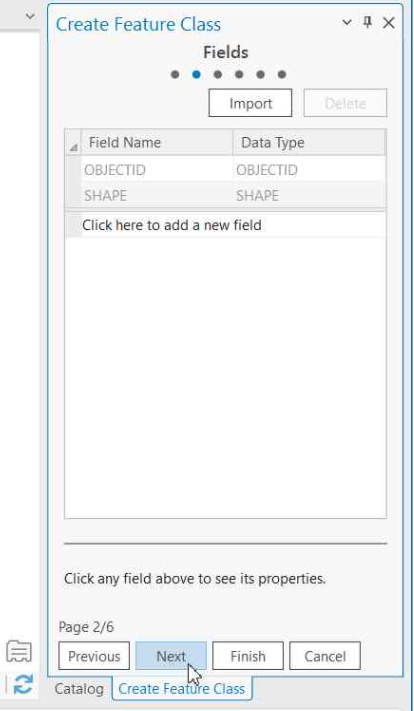

    • add new feature class

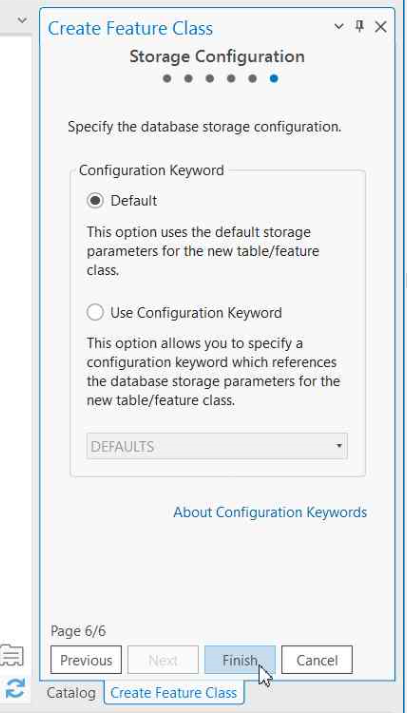

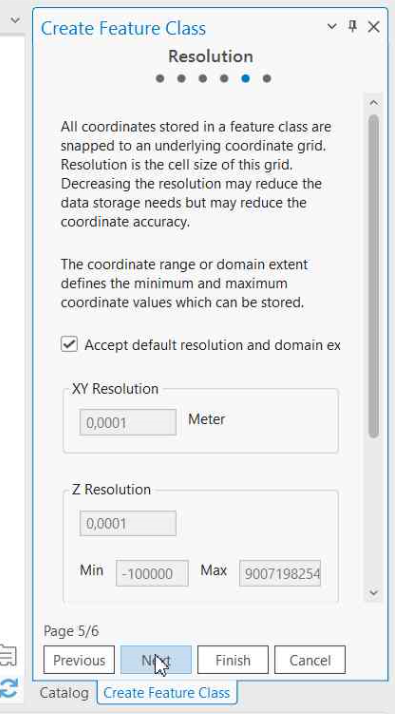

    • finish feature class

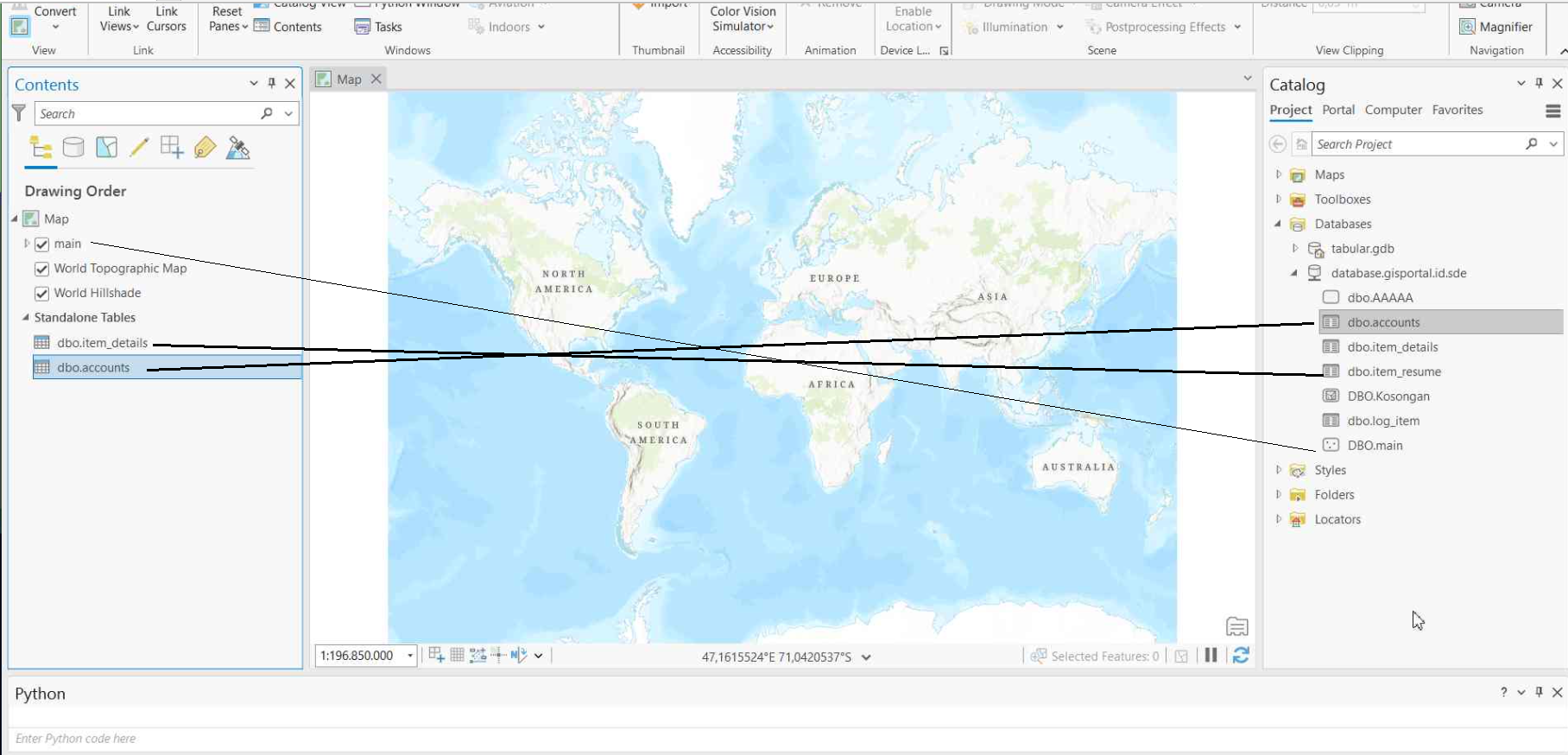

  • drak or add items (feature class and tabular table to project)

    • feature class
    • add tabular table
    • accounts
    • item_details

• Publish Feature Service

  • ArcGIS Pro

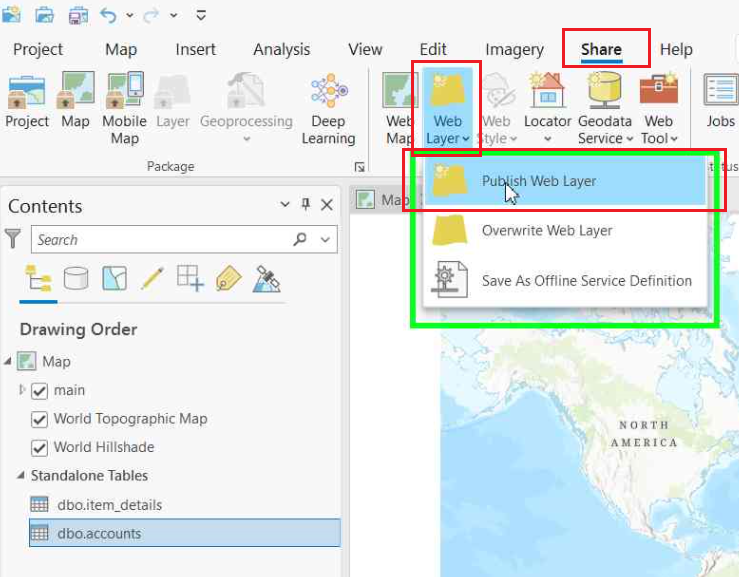

    • Share > Web Layer > Publish Web Layer

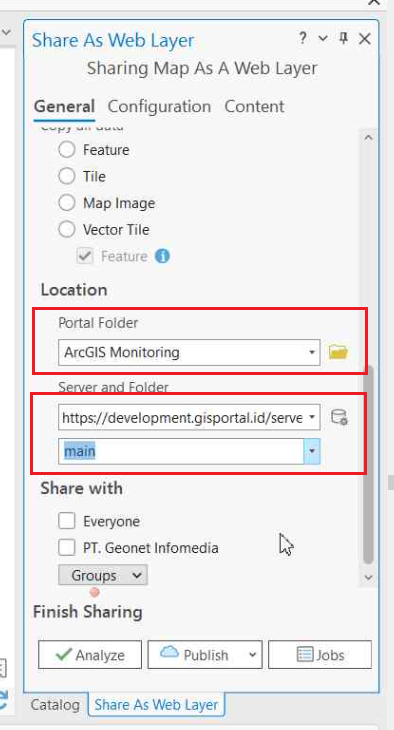

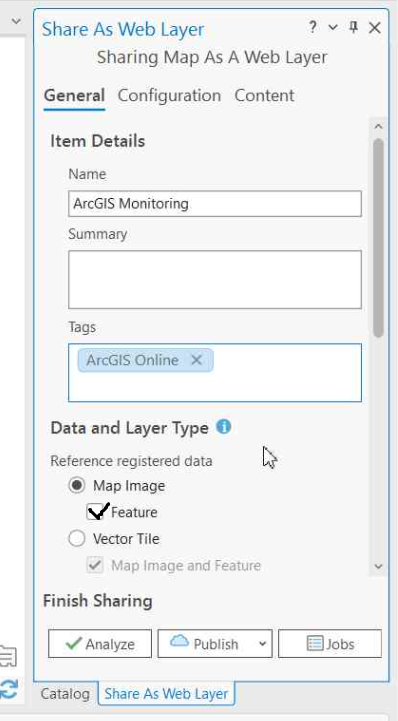

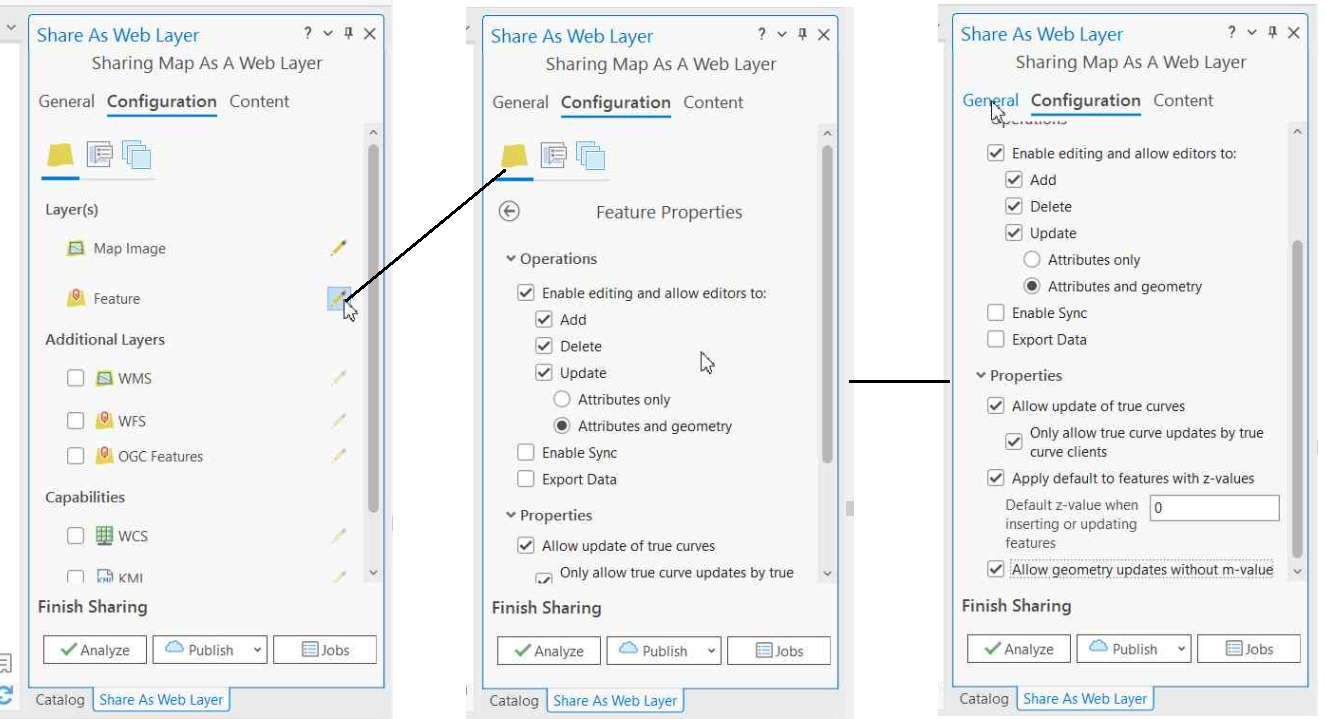

    • descripsion feature and allow or enable Feature

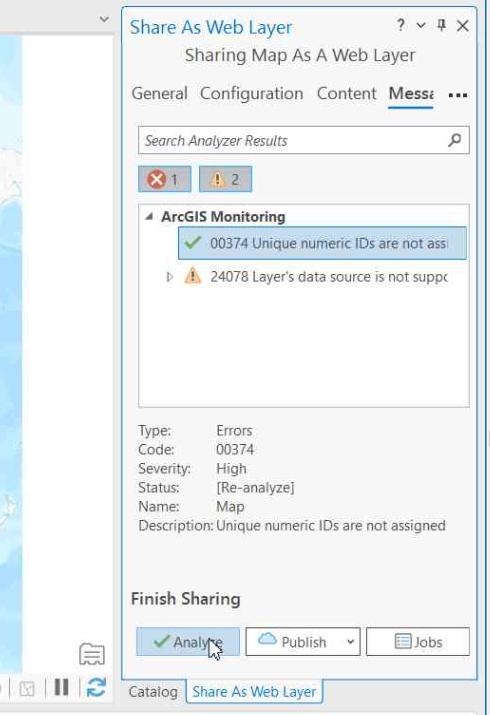

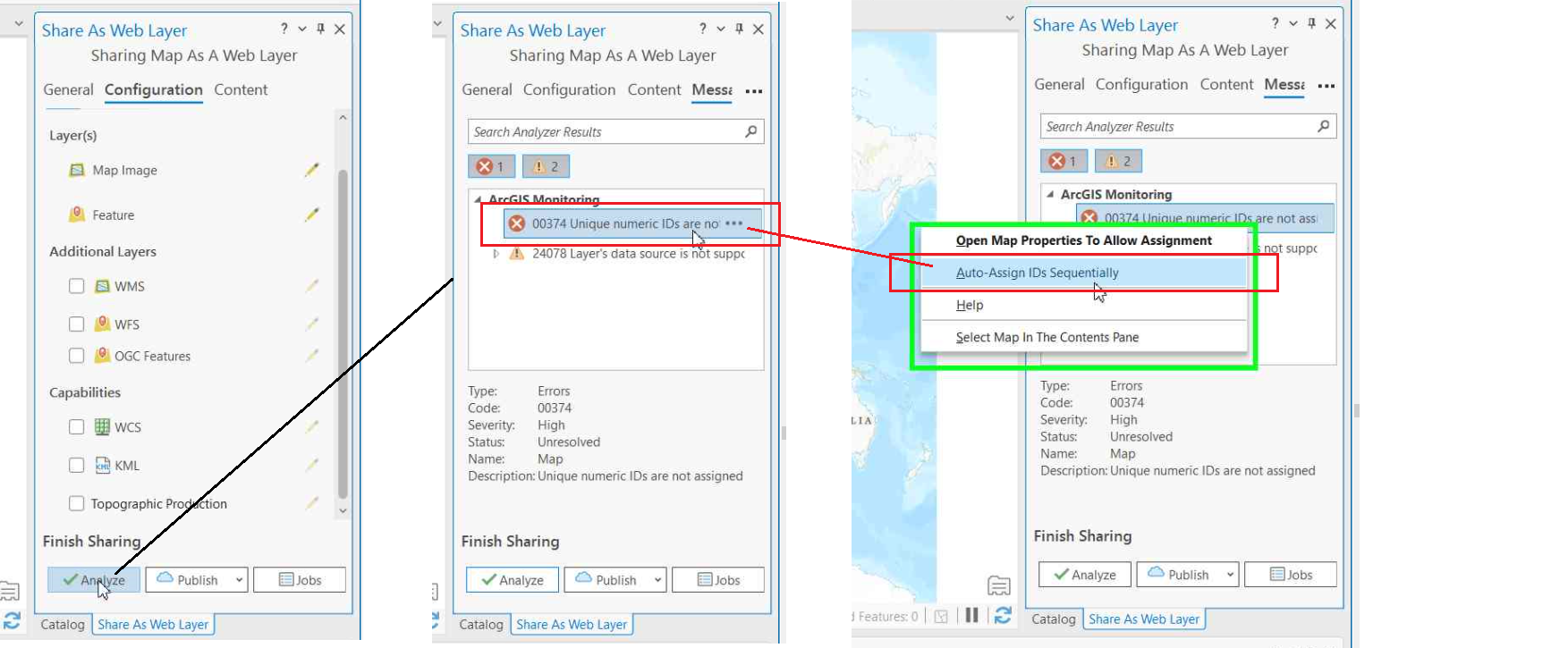

    • Analyze

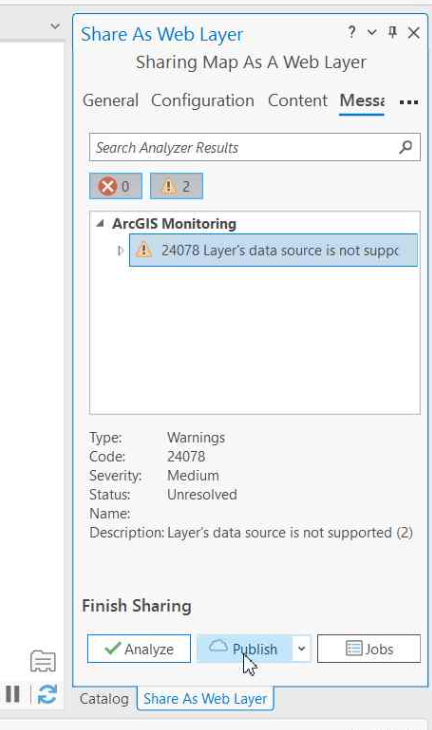

    • re Analyze and publish

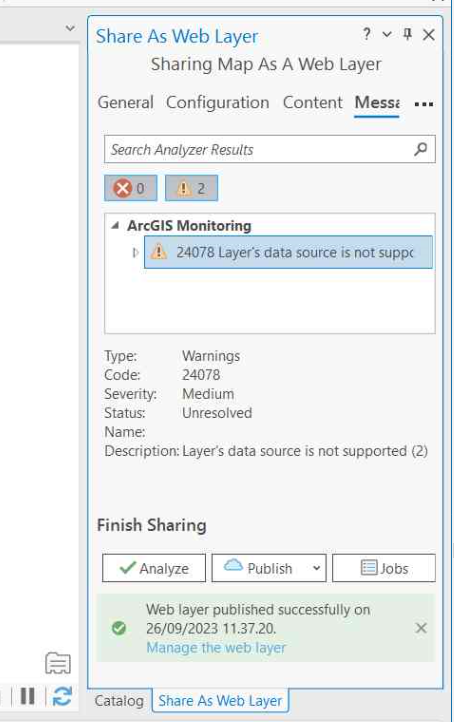

    • finish publish


  • Porta for ArcGIS

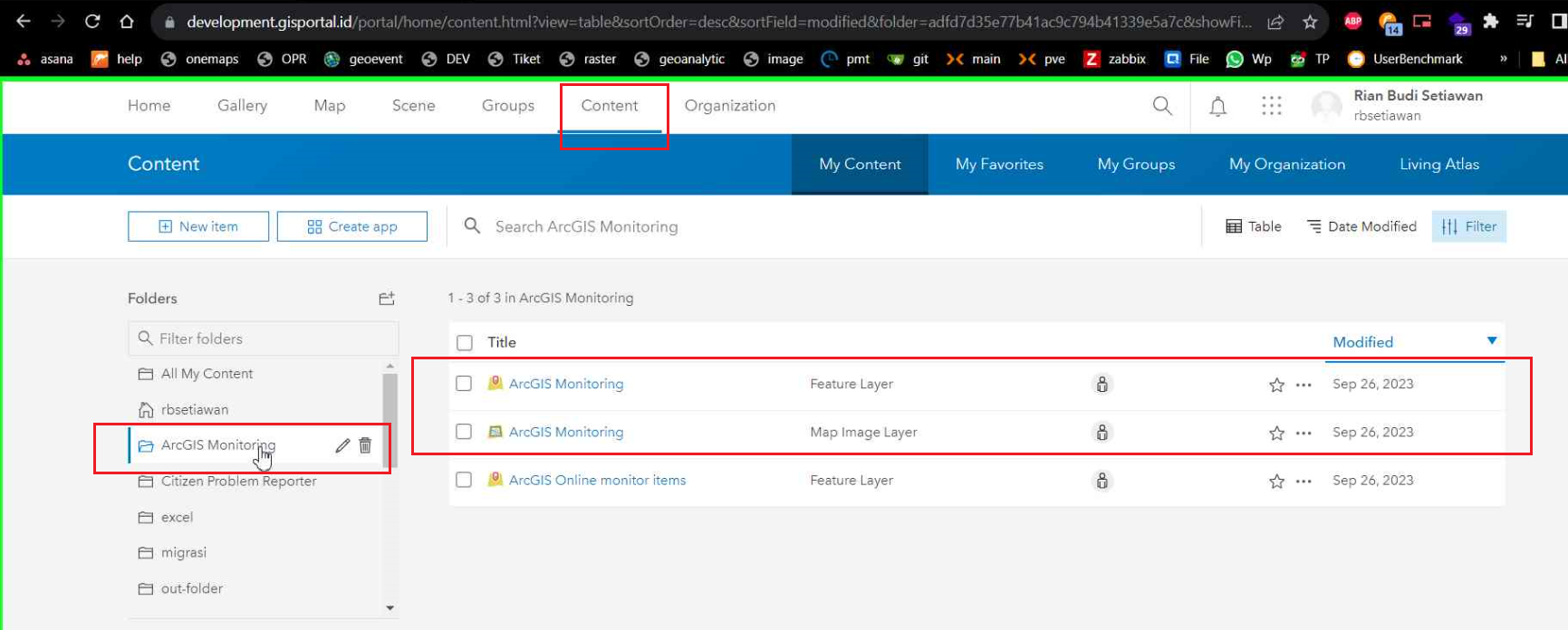

    • Feature Service https://development.gisportal.id/portal/home/item.html?id=5bb68b0ce38c4bc6a380edbdd1af2835
    • Map Image https://development.gisportal.id/portal/home/item.html?id=23deee3b0f0145de9ff5cbf39a613239

  • ArcGIS Server

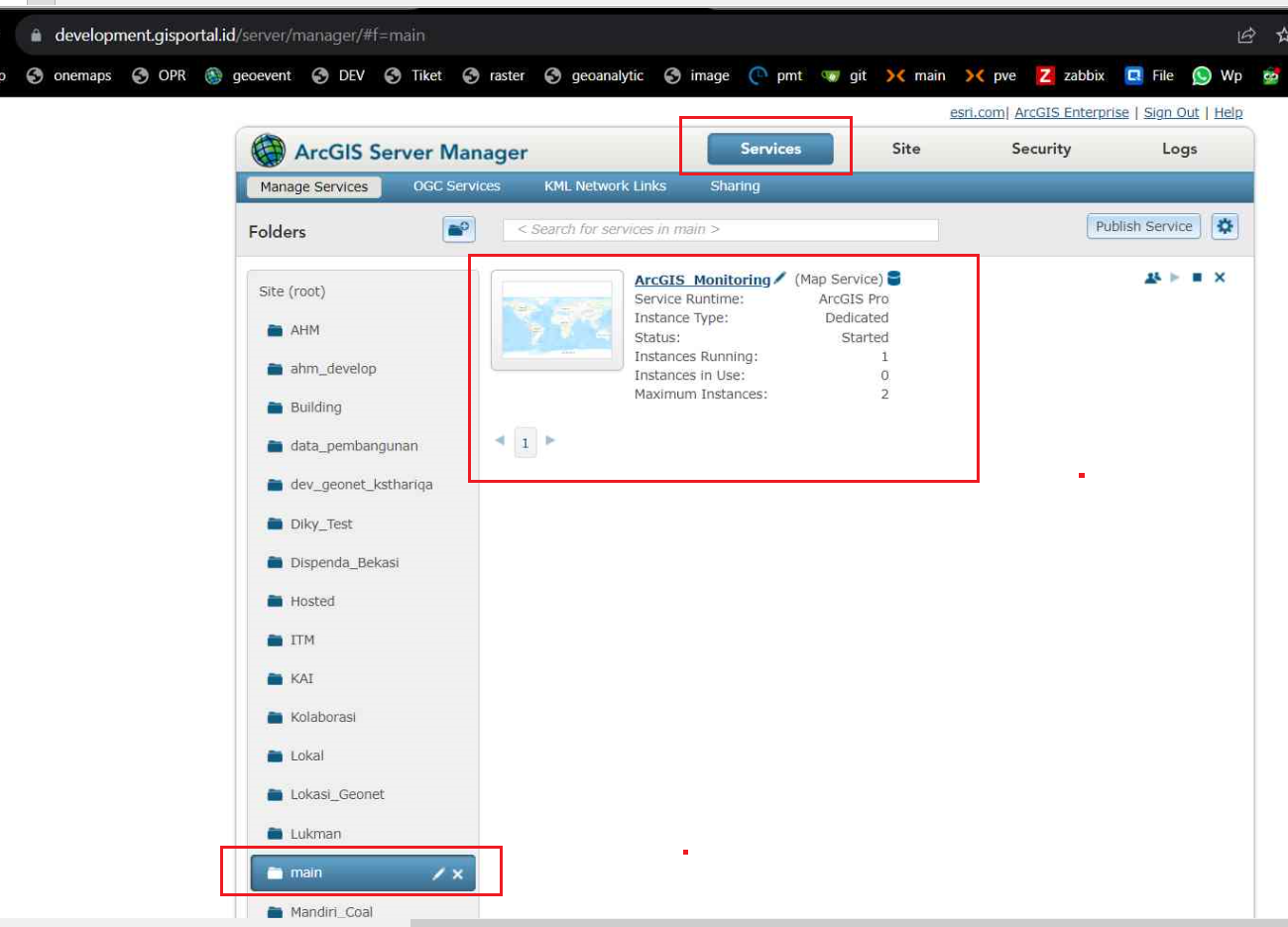

    • Rest Service https://development.gisportal.id/server/rest/services/main/ArcGIS_Monitoring/MapServer
