ArcGIS Web Adaptor reverse proxy configuration #7

Open

opened 10 months ago by byprakoso · 0 comments

byprakoso commented 10 months ago

Owner

Reverse proxy

• Client (user luar) → Reverse Proxy (Web Adaptor) → Server internal (ArcGIS Server)

• Jadi, client tidak langsung tahu nama/port asli server internal (misalnya rnd00.sec.id:6443).

• Client cuma tahu domain publik (misalnya aernd.gisportal.id/server).

• Karena Web Adaptor bertindak sebagai reverse proxy:

• Menyembunyikan alamat internal (rnd00.sec.id:6443)

• Menyediakan URL eksternal yang aman (aernd.gisportal.id/server)

Public URL (Services URL) → yang akan dipakai user (domain publik)

Backend URL (Administration/Server URL) → alamat asli server (FQDN internal + port 6443)

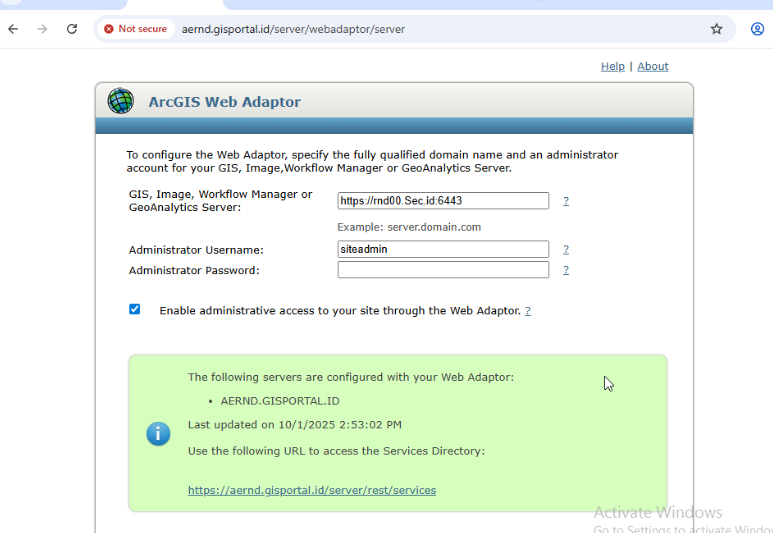

Config Server Webadaptor

Publik URL https://aernd.gisportal.id/server/webadaptor
Administration/Server URL https://rnd00.Sec.id:6443

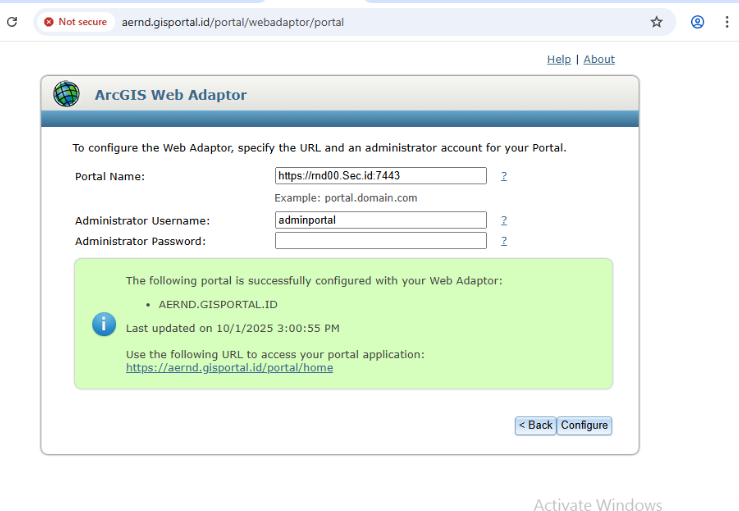

Config Portal Webadaptor

Publik URL https://aernd.gisportal.id/Portal/webadaptor
Administration/Server URL https://rnd00.Sec.id:7443

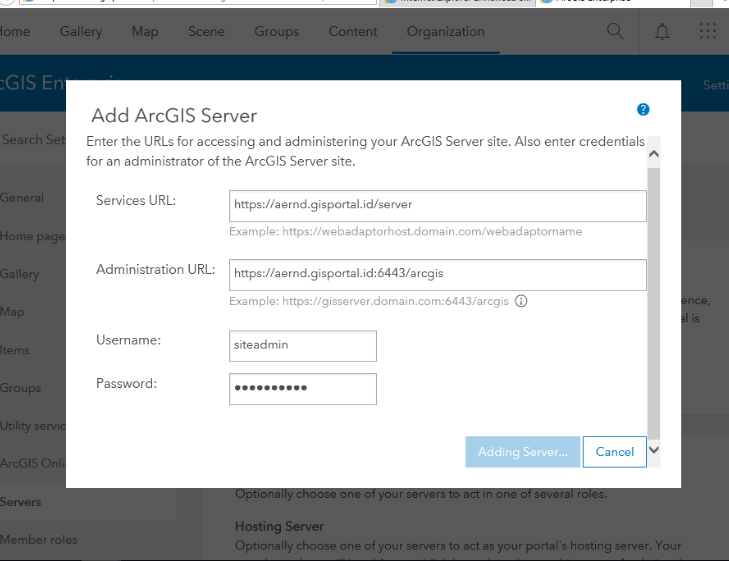

Federated Server with Portal

# Reverse proxy * Client (user luar) → Reverse Proxy (Web Adaptor) → Server internal (ArcGIS Server) * Jadi, client tidak langsung tahu nama/port asli server internal (misalnya rnd00.sec.id:6443). * Client cuma tahu domain publik (misalnya aernd.gisportal.id/server). * Karena Web Adaptor bertindak sebagai reverse proxy: * Menyembunyikan alamat internal (rnd00.sec.id:6443) * Menyediakan URL eksternal yang aman (aernd.gisportal.id/server) **Public URL (Services URL) → yang akan dipakai user (domain publik)** **Backend URL (Administration/Server URL) → alamat asli server (FQDN internal + port 6443)** ## Config Server Webadaptor Publik URL ``` https://aernd.gisportal.id/server/webadaptor ``` Administration/Server URL ``` https://rnd00.Sec.id:6443 ```  ## Config Portal Webadaptor Publik URL ``` https://aernd.gisportal.id/Portal/webadaptor ``` Administration/Server URL ``` https://rnd00.Sec.id:7443 ```  ## Federated Server with Portal
